Component Locations

Component	Location

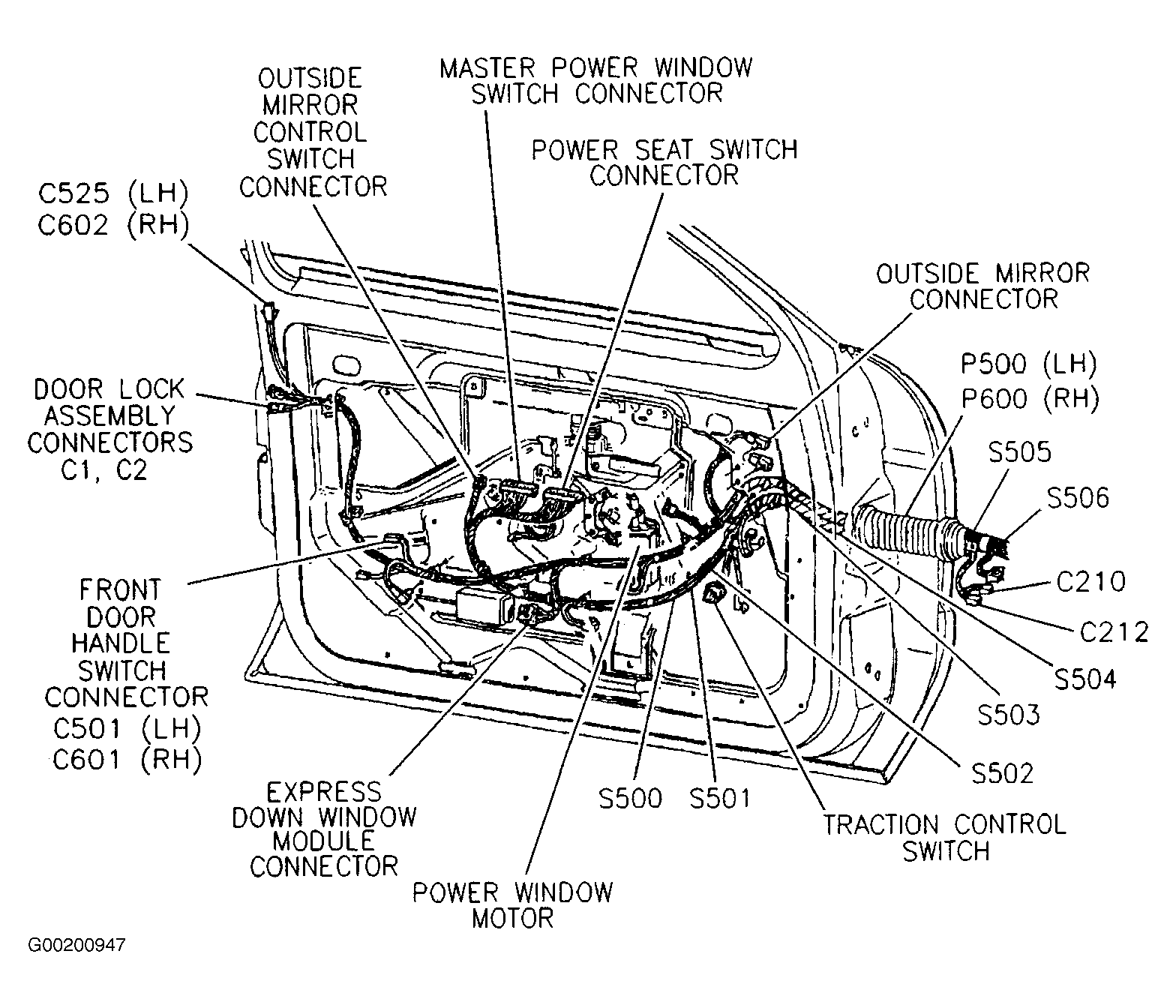

Front Door Switches	Top rear of respective front doors. See Fig 1 .
I/P Fuse Block	Behind left side of I/P, behind trim pane. See Fig 2 .
Ignition Switch	Left middle of steering column.
Left Underhood Fuse Block	Center rear of engine compartment.
Rear Door Switches	Top rear of respective rear doors. See Fig 3 .

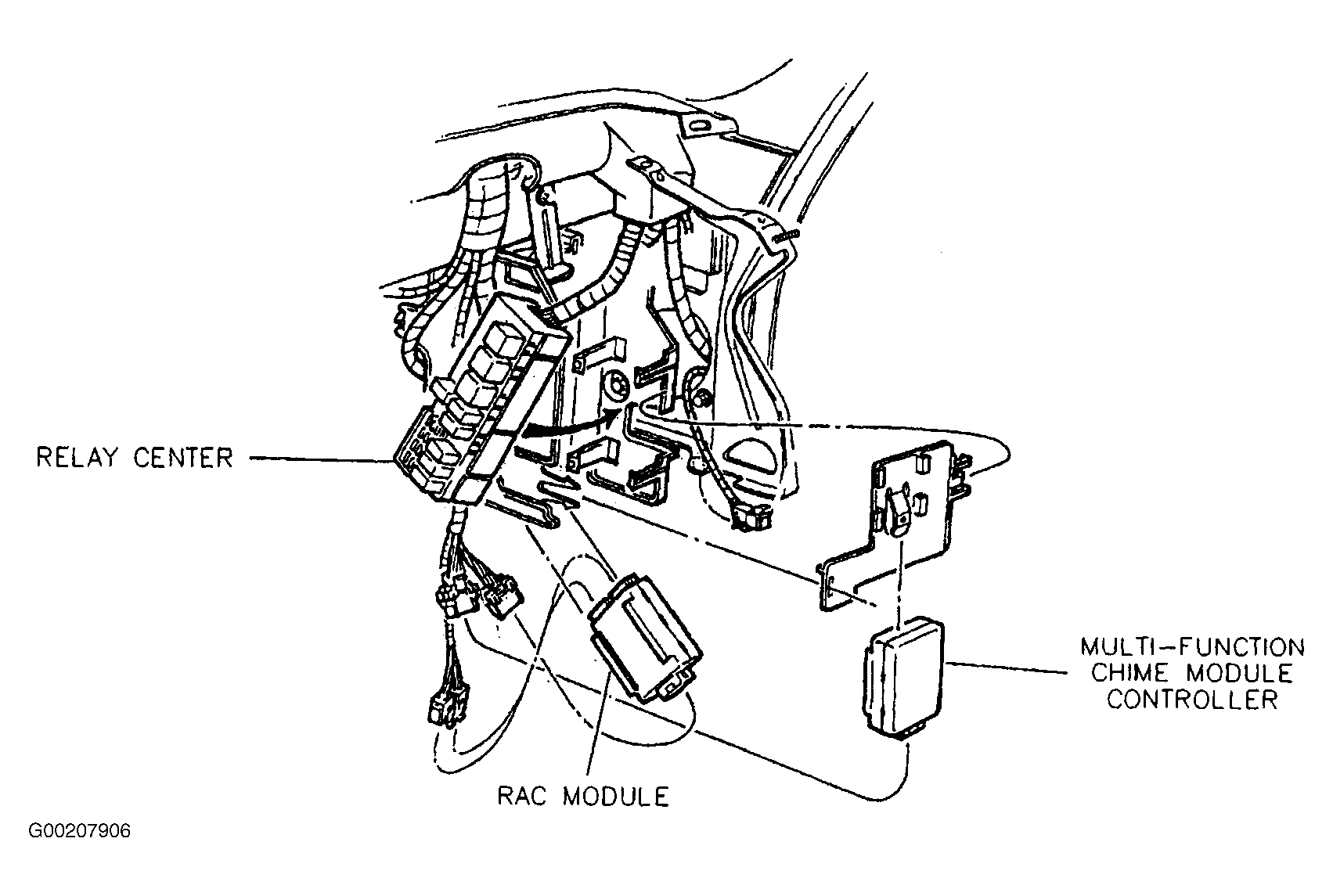

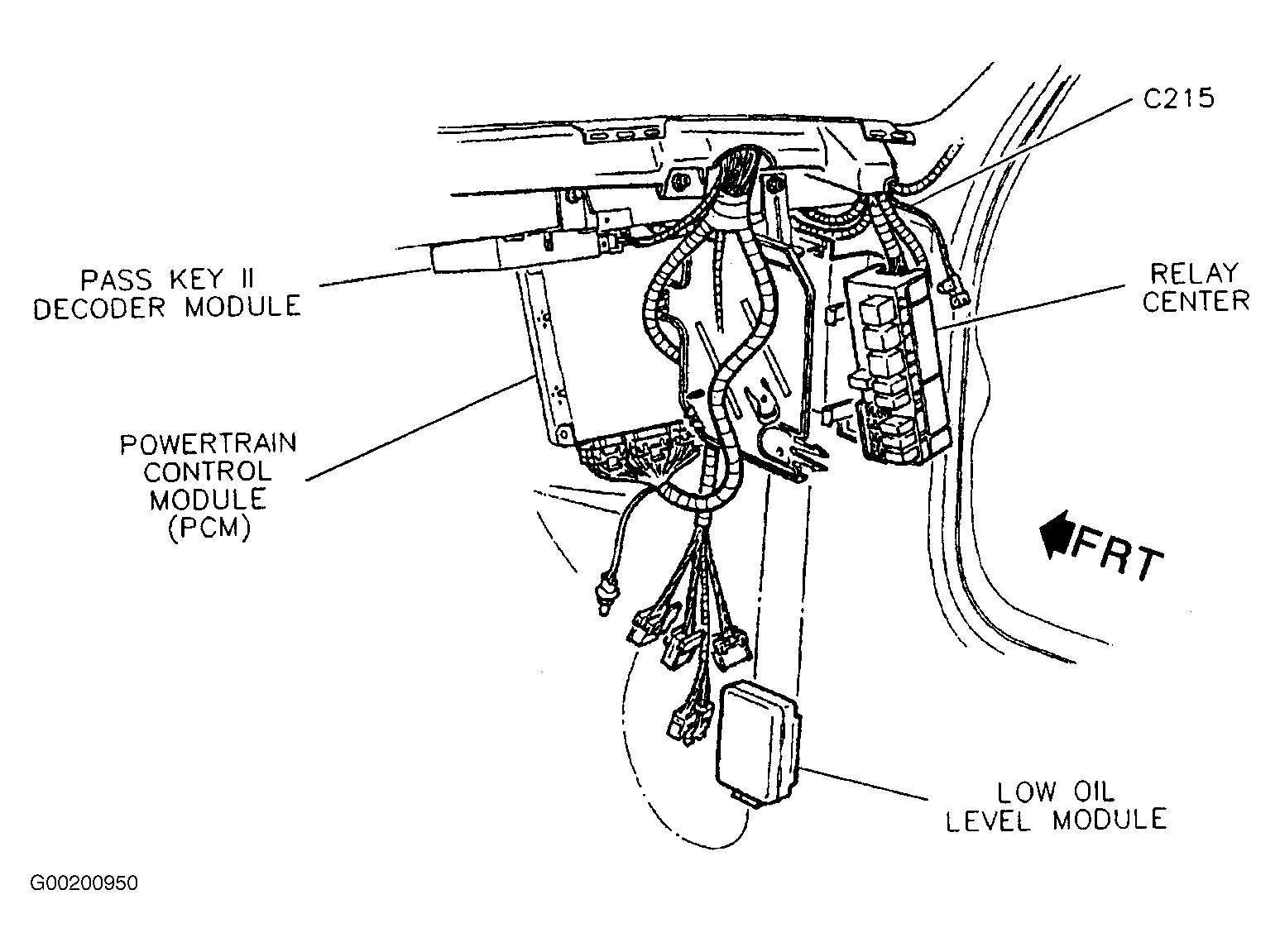

Relay Center	Behind right side of I/P, above sound insulator. See Fig 4 .
Remote Accessory Control (RAC) Module	Behind right side of I/P, on multi-use module bracket. See Fig 5 .

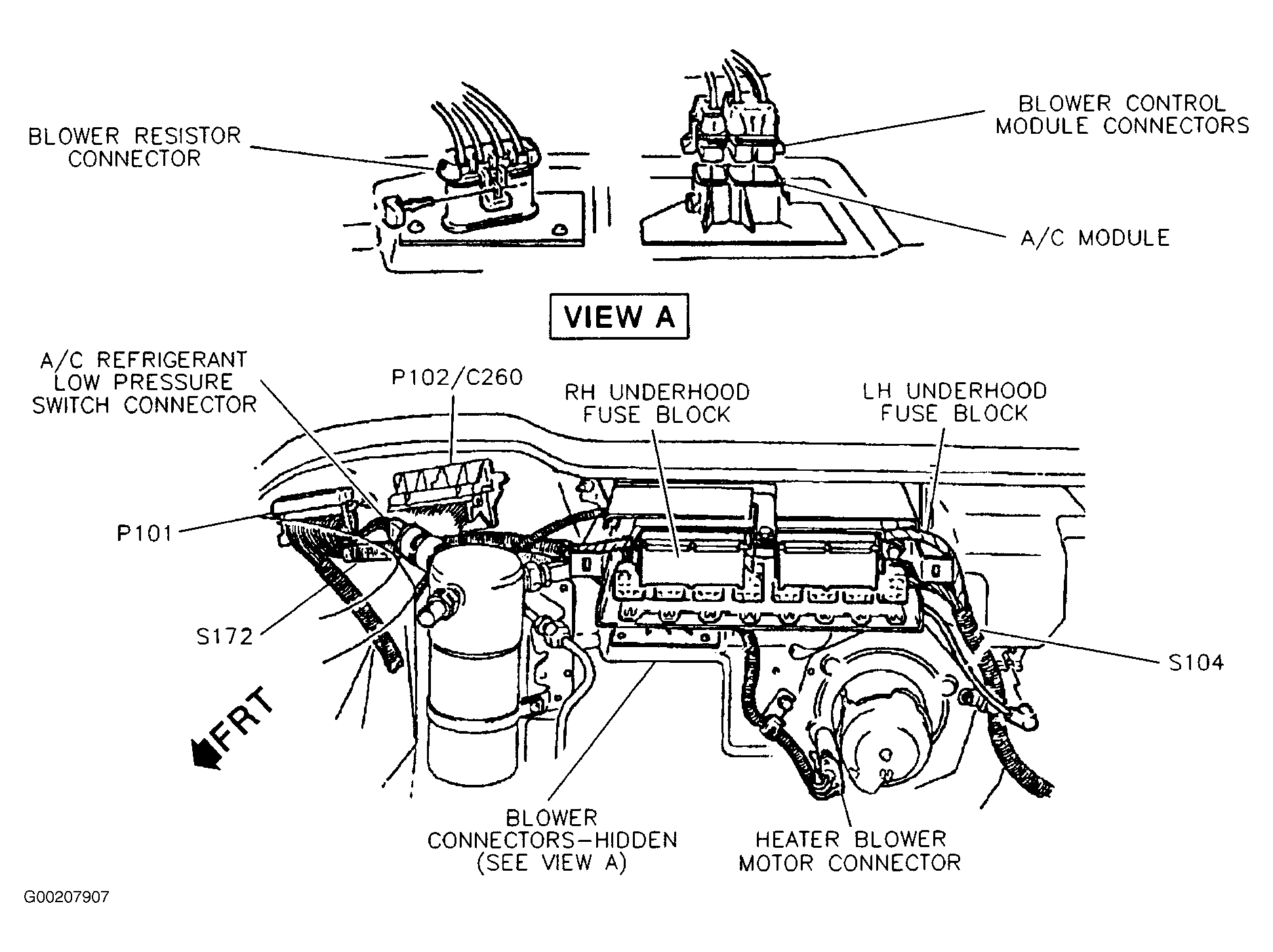

Right Underhood Fuse Block	Center rear of engine compartment. See Fig 6 .
C202 (48 Cavities)	Behind I/P, at base of steering column.

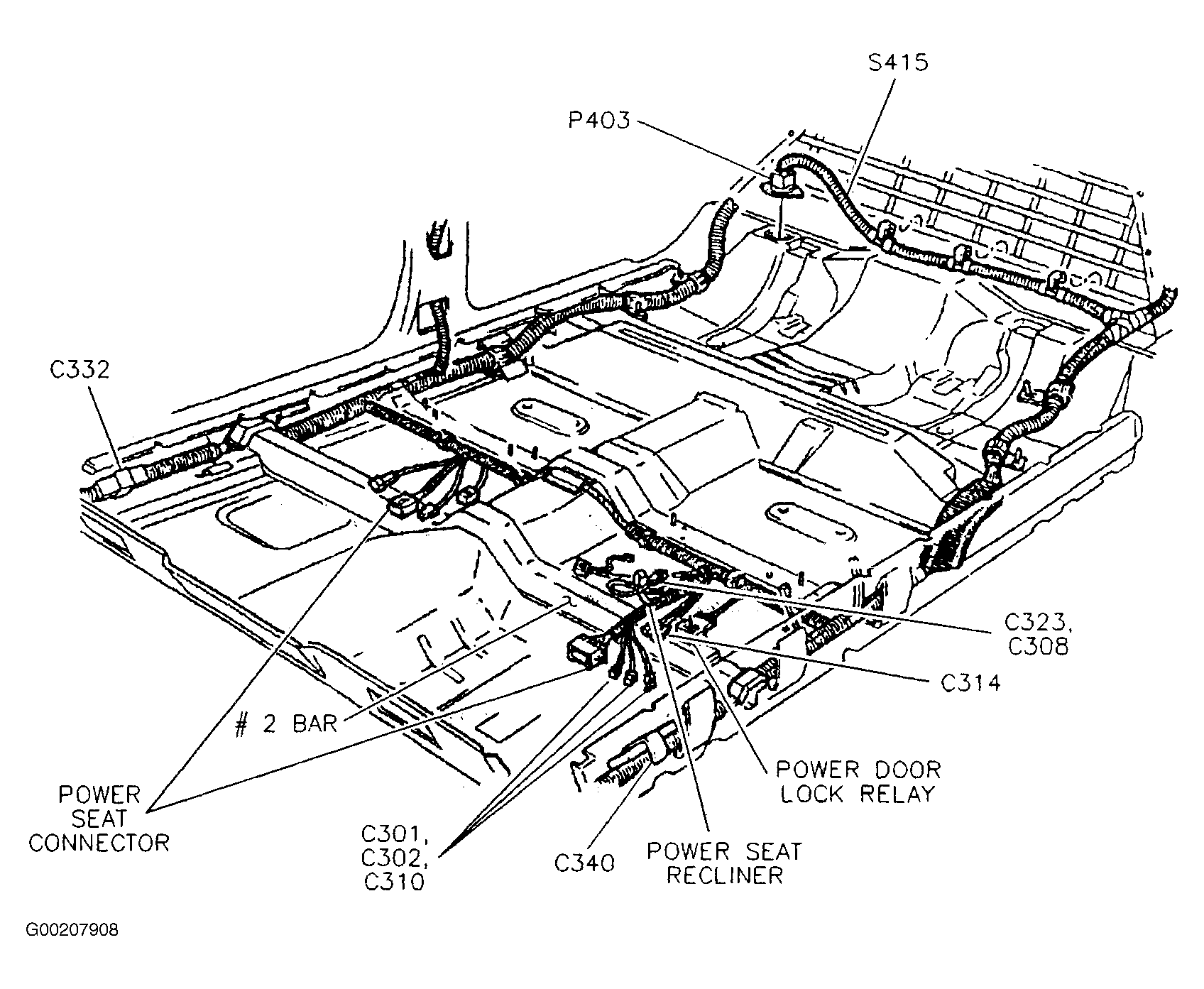

C332 (10 Cavities)	Right door sill, near shroud. See Fig 7 .
C340 (10 Cavities)	Left front door sill, taped to composite harness. See Fig 7 .

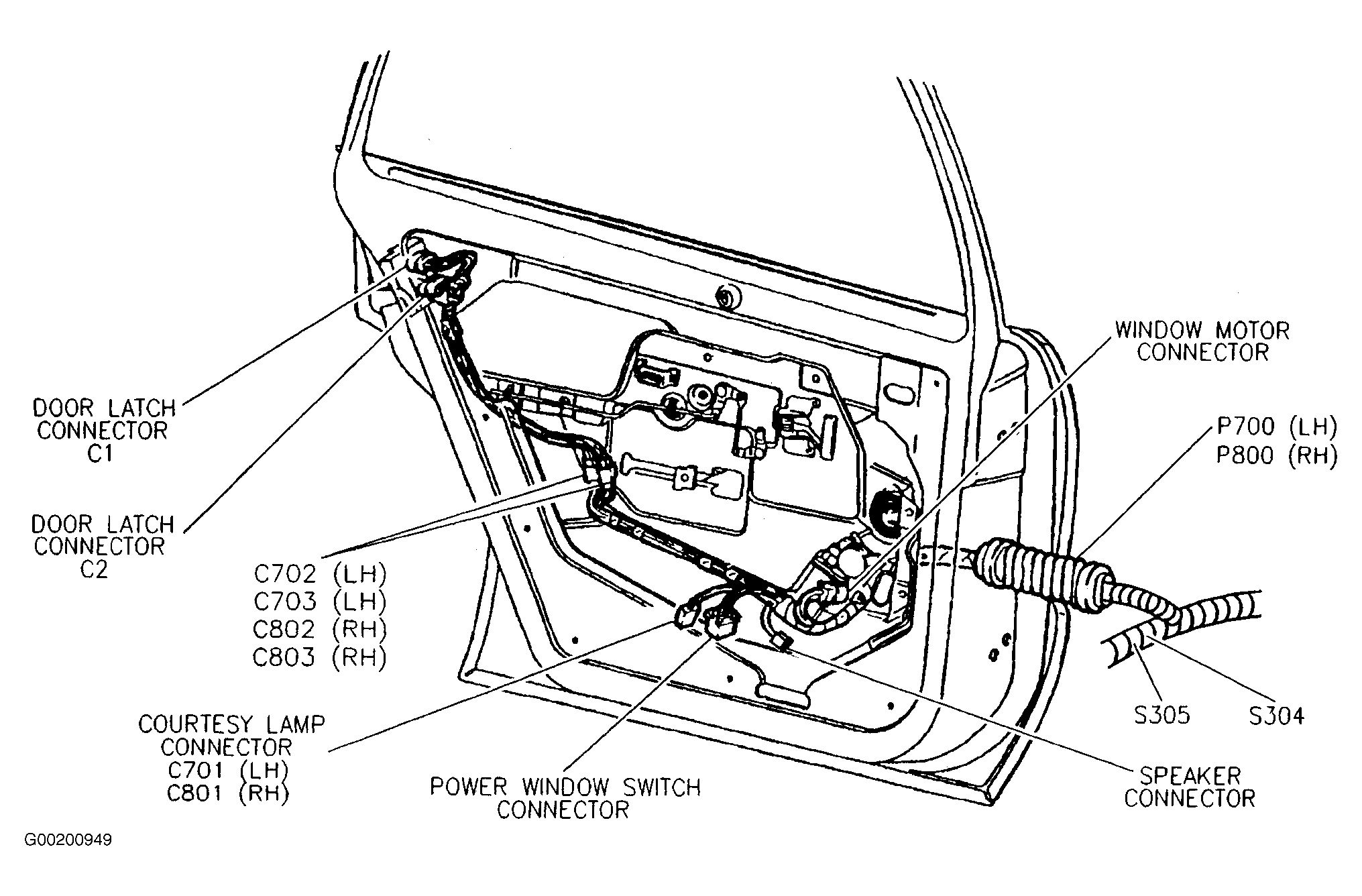

C703 (4 Cavities)	Center portion of left rear door. See Fig 3 .
C803 (4 Cavities)	Center portion of right rear door.
G201	Below right side of I/P, middle of right kickpad. See Fig 8 .
G202	Below left side of I/P, middle of left kickpad. See Fig 9 .

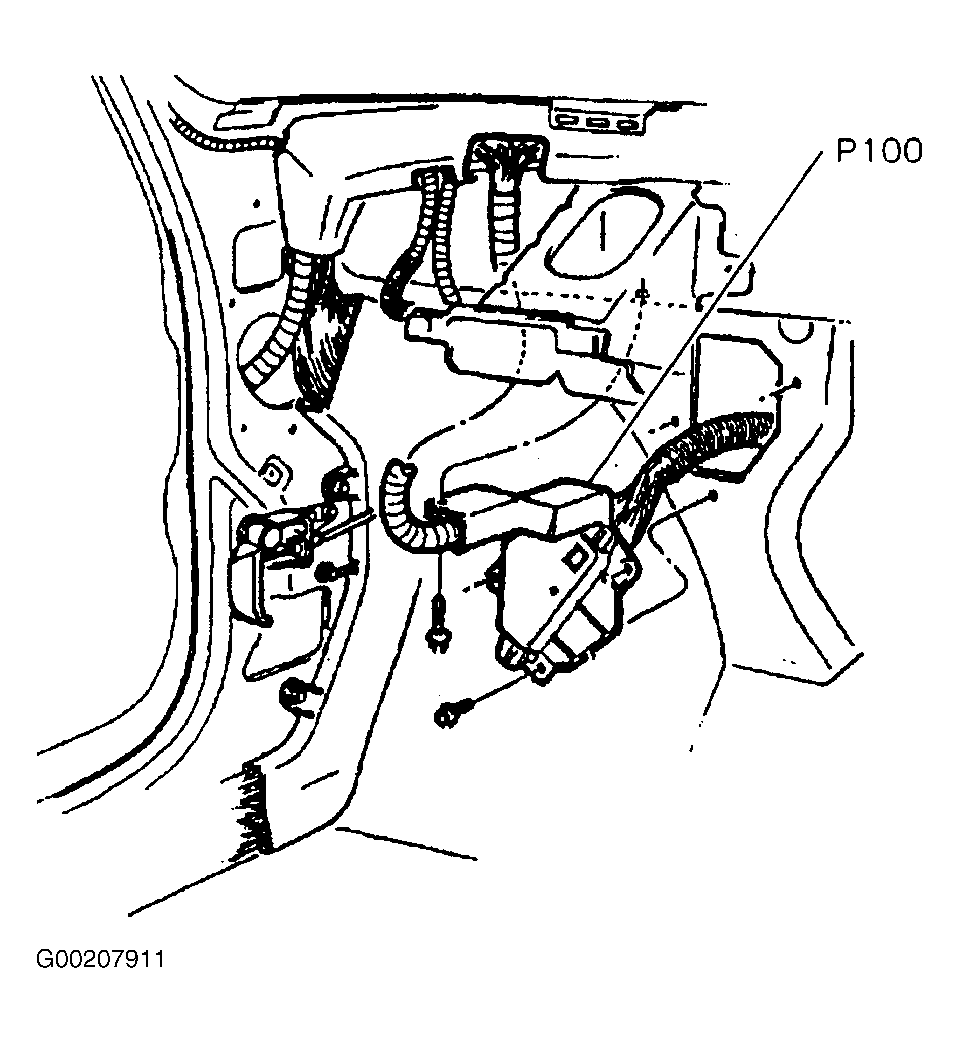

P100	Left rear of engine compartment, behind strut tower. See Fig 10 .
P101	Right rear of engine compartment, behind strut tower. See Fig 6 .

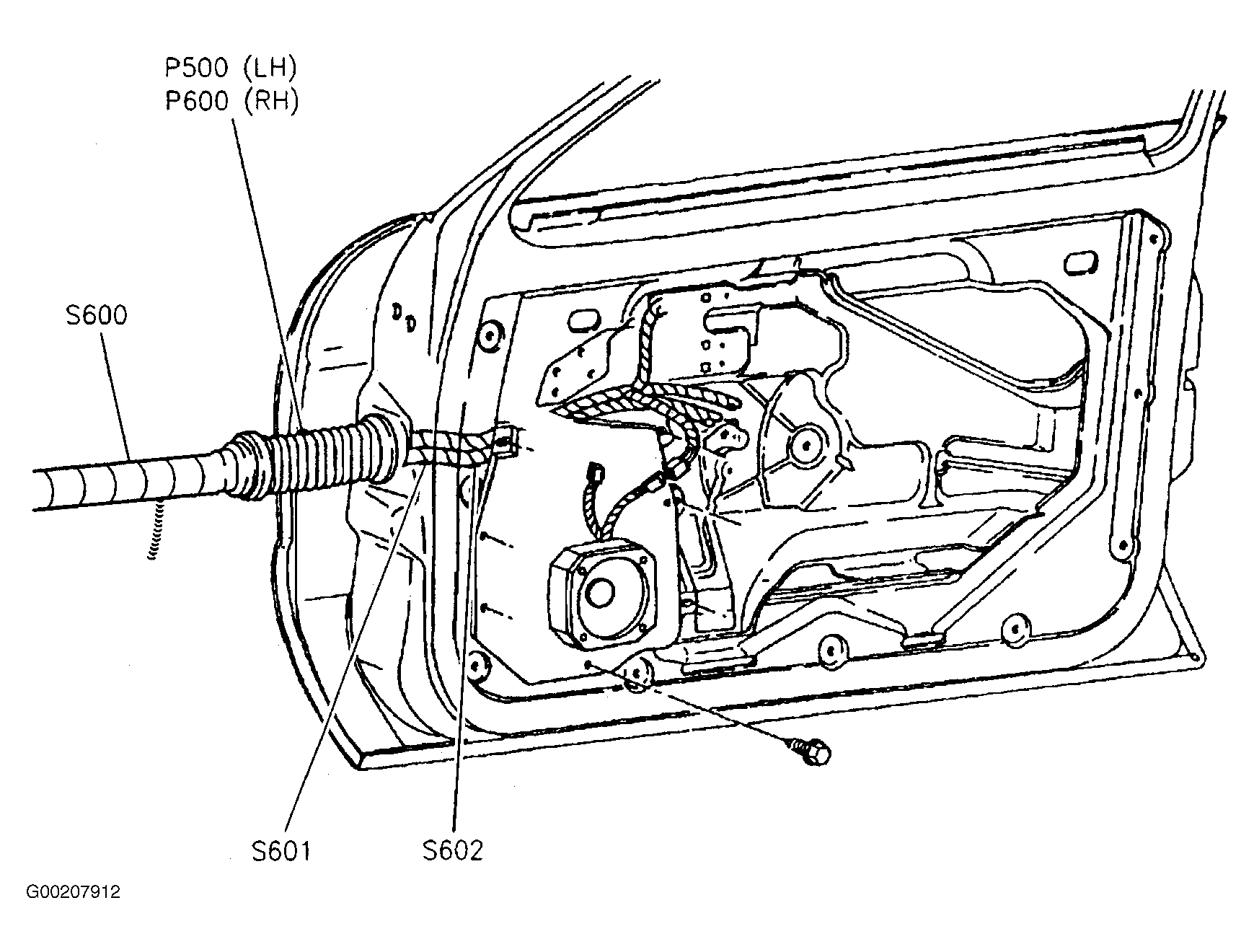

P500	Front of left front door. See Fig 11 .
P600	Front of right front door. See Fig 1 .
P700	Front of left rear door. See Fig 3 .
P800	Front of right rear door. See Fig 3 .

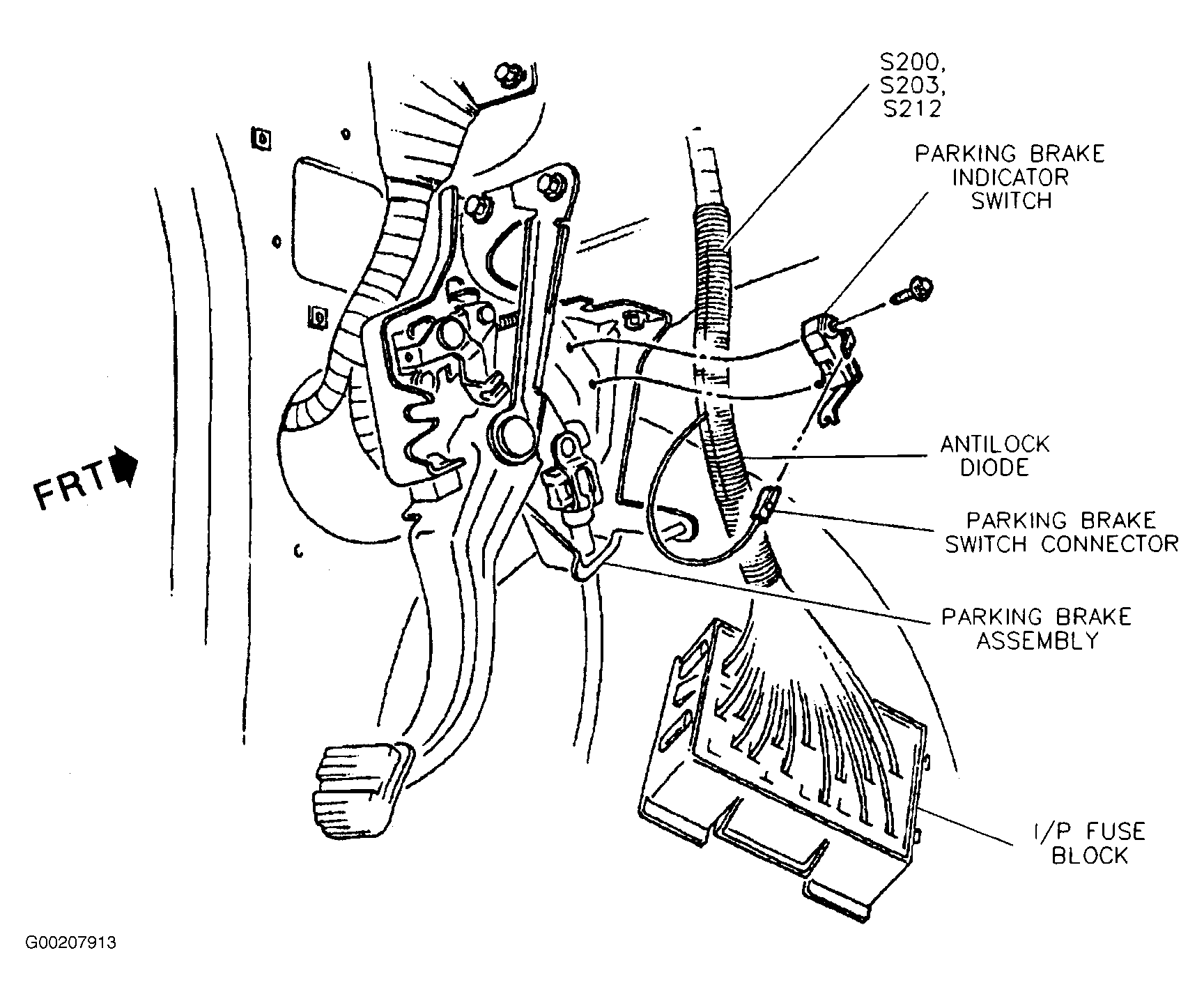

S200	Left side of passenger compartment near park brake switch. See Fig 12 .
S208	Composite harness, behind center of I/P near multifunction chime module.

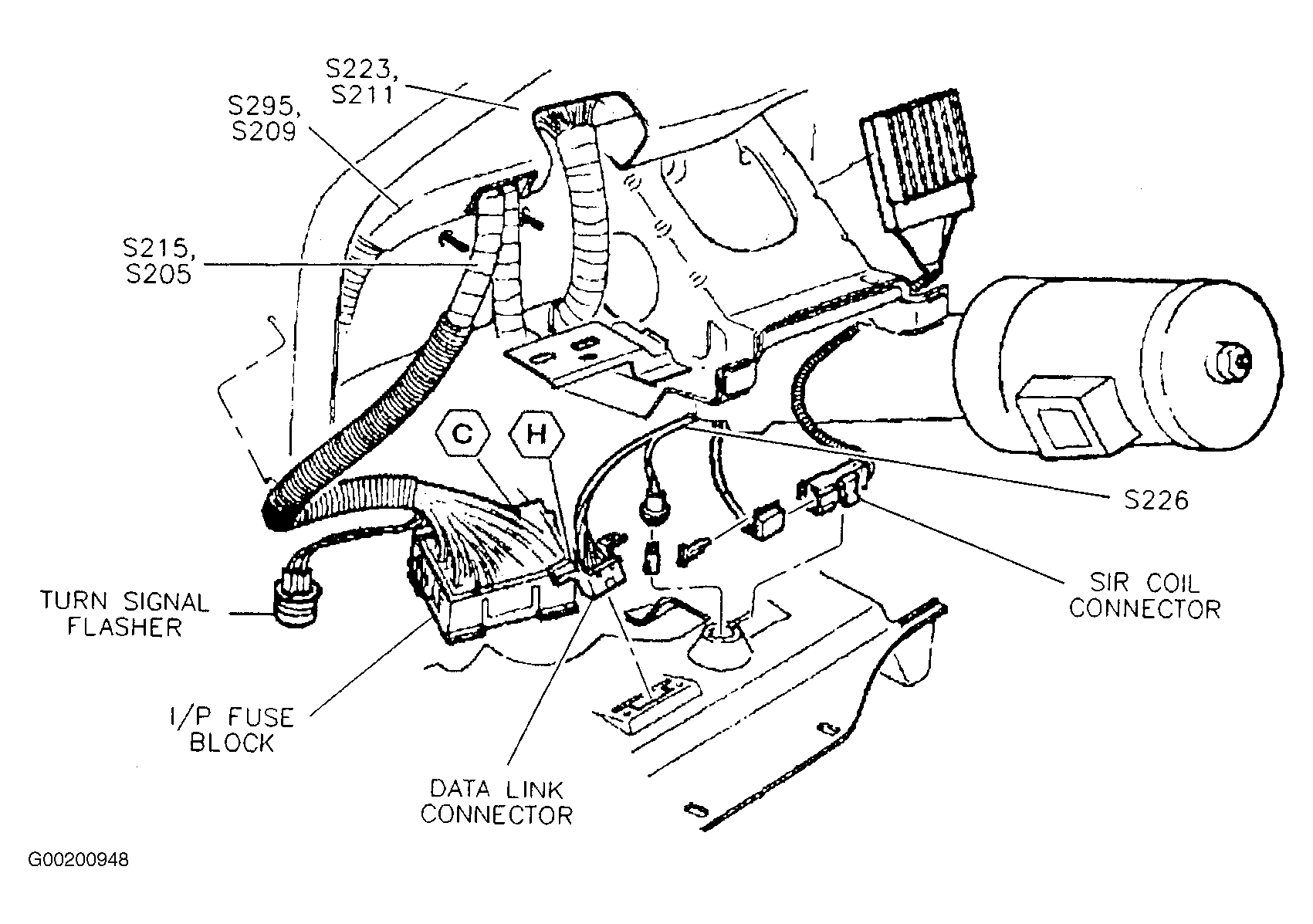

S215	Composite harness, left side of I/P. See Fig 2 .
S218	Composite harness, top or right kickpad. See Fig 9 .
S225	Composite harness, middle of left kickpad. See Fig 9 .

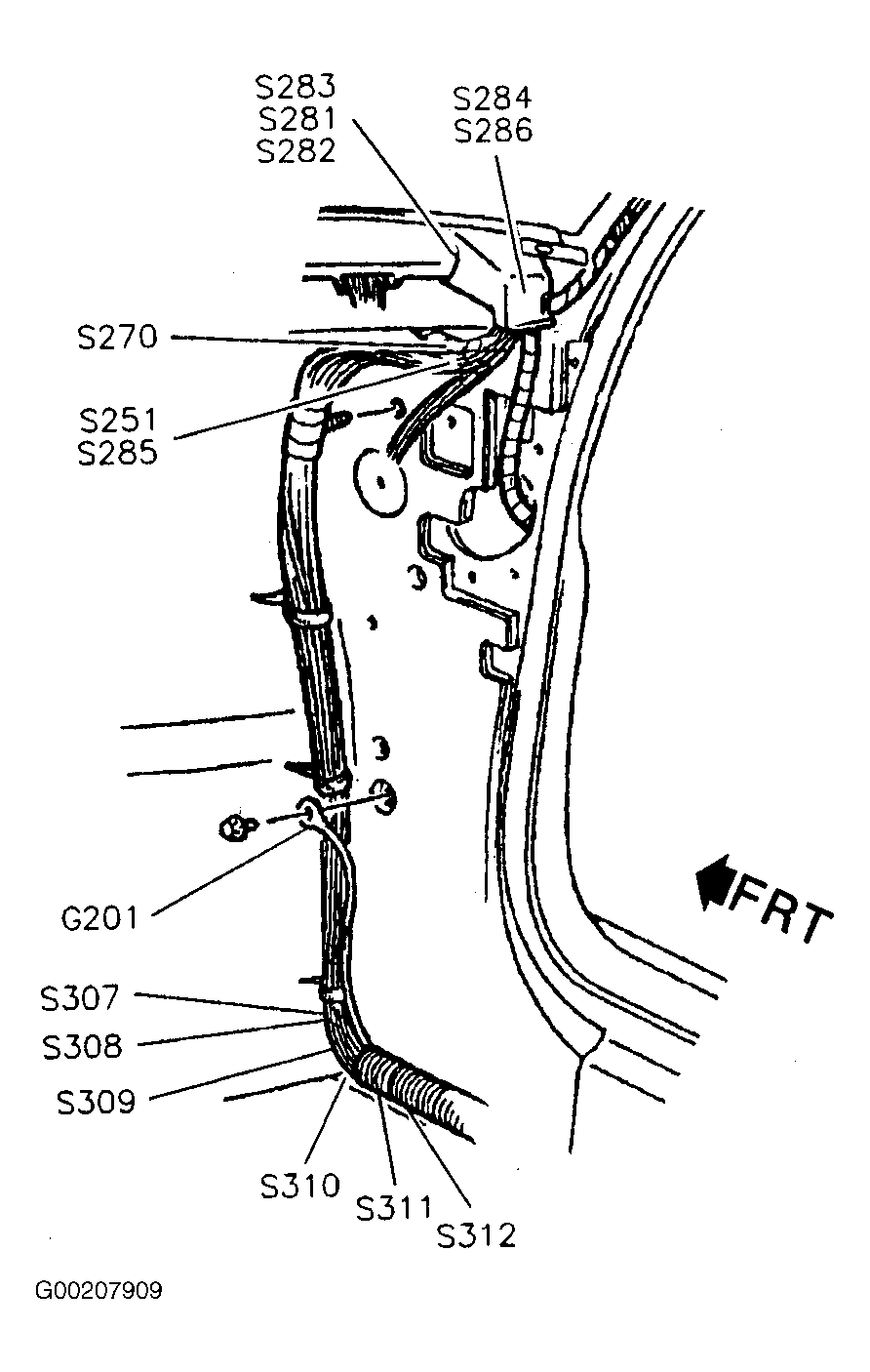

S251	Composite harness, middle of right kickpad. See Fig 8 .

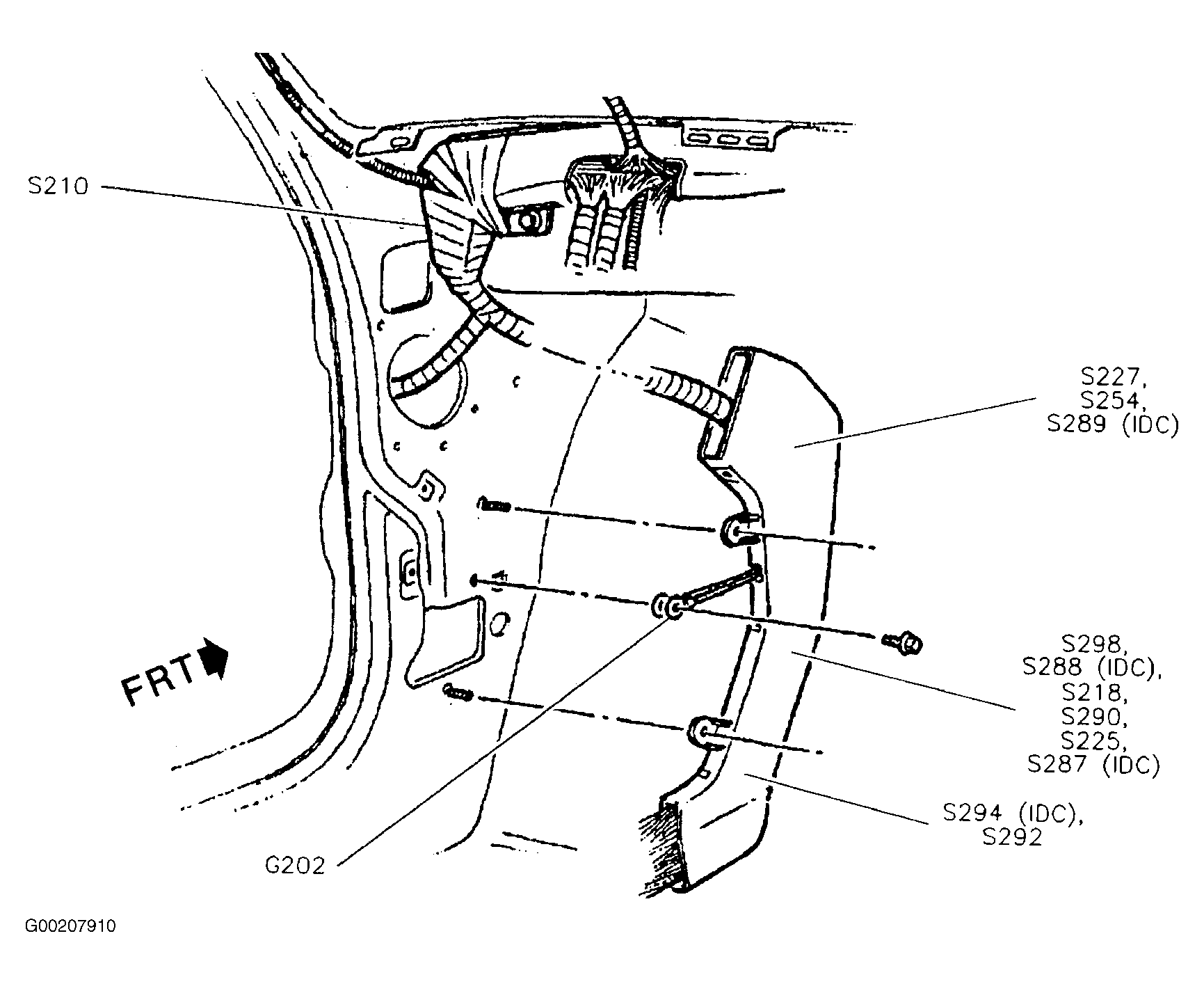

S289 (IDC)	Composite harness, top of left kickpad. See Fig 9 .
S307	Composite harness, bottom or right kickpad. See Fig 8 .
S308	Composite harness, bottom of right kickpad. See Fig 8 .
S310	Composite harness, bottom of right kickpad. See Fig 8 .
