Home
>>
Buick
>>
1995
>>
LeSabre Custom
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Data Link Communications System
>>
Connector Identification
Connector Identification

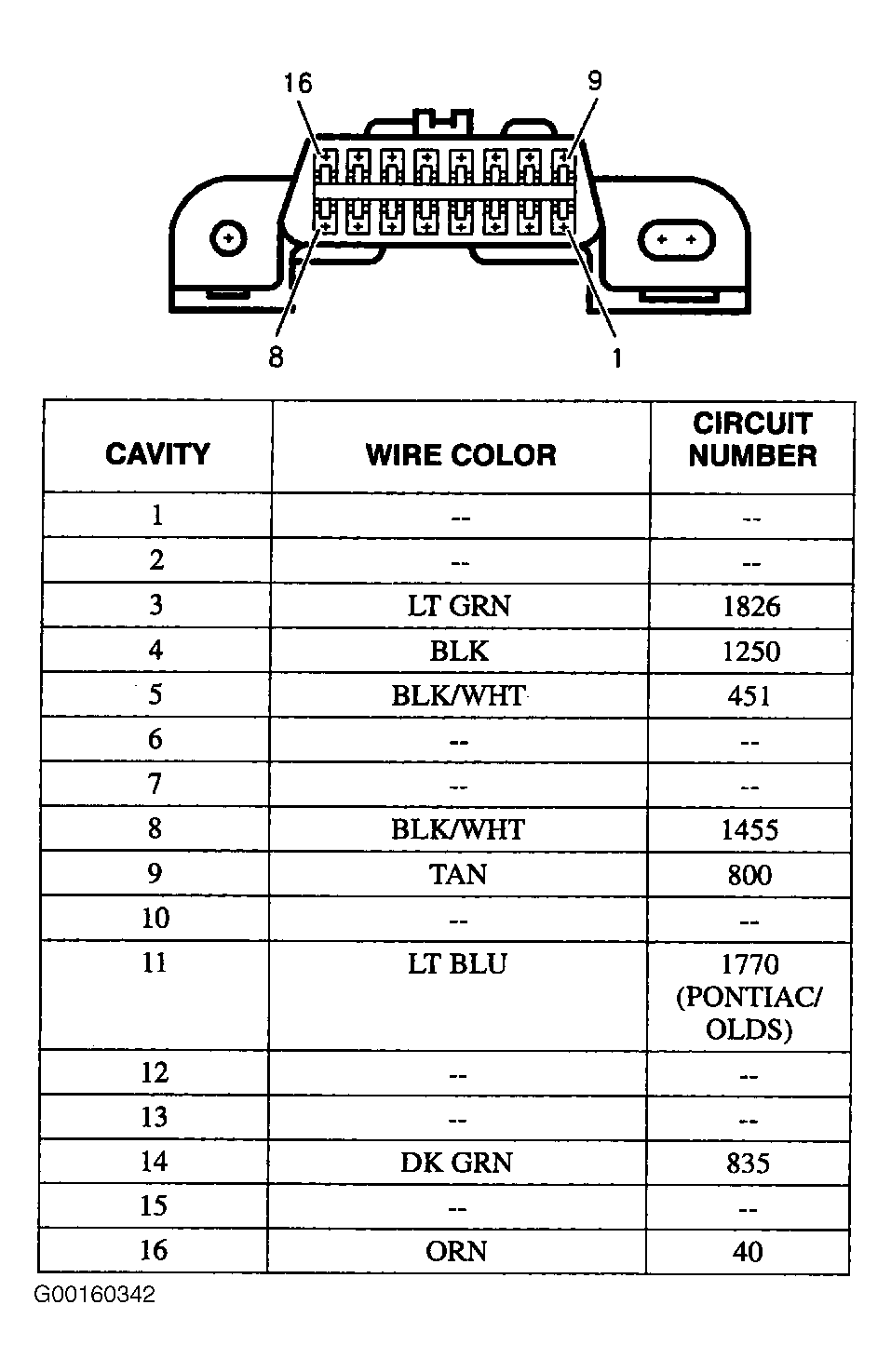

Fig 1: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
