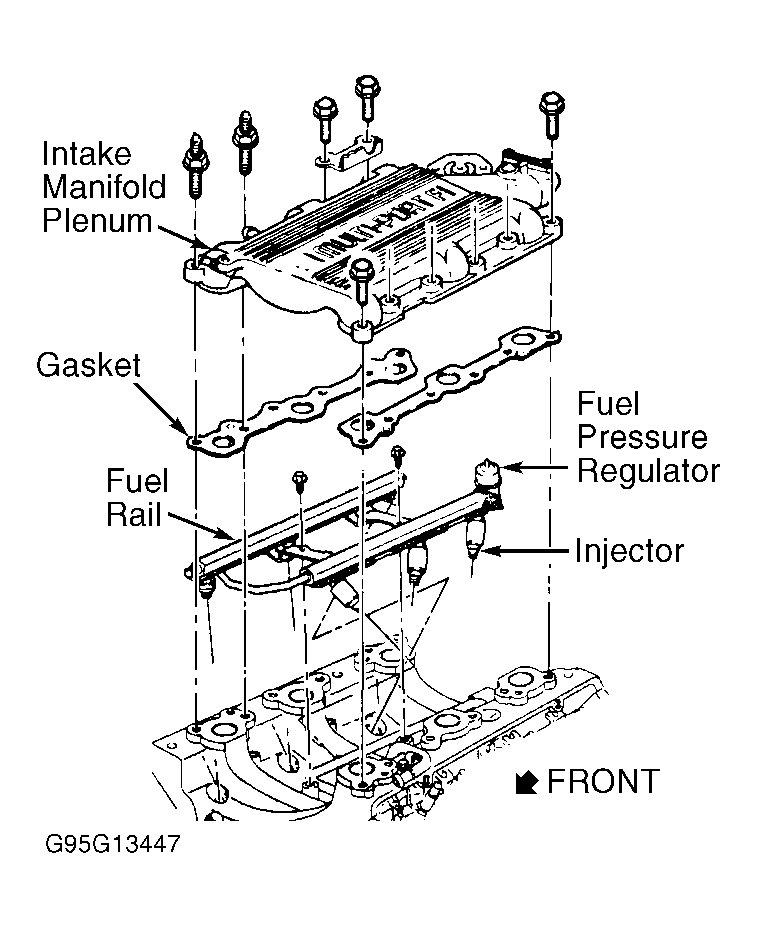

Fuel Rail & Injectors: Installation
To install, reverse removal procedure. Coat NEW injector "O" rings with clean engine oil. Install injector-to-fuel rail retaining clip with open end facing injector electrical connection. Position fuel rail on intake manifold. Push down on rail to seat injectors in manifold. Tighten fuel rail retaining bolts. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
To install, reverse removal procedure. Coat NEW injector "O" rings with clean engine oil. Position injectors into intake manifold and injector retainer over injectors. Tighten injector retainer screws. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
