Wiring Diagrams

ELECTRIC COOLING FAN APPLICATION

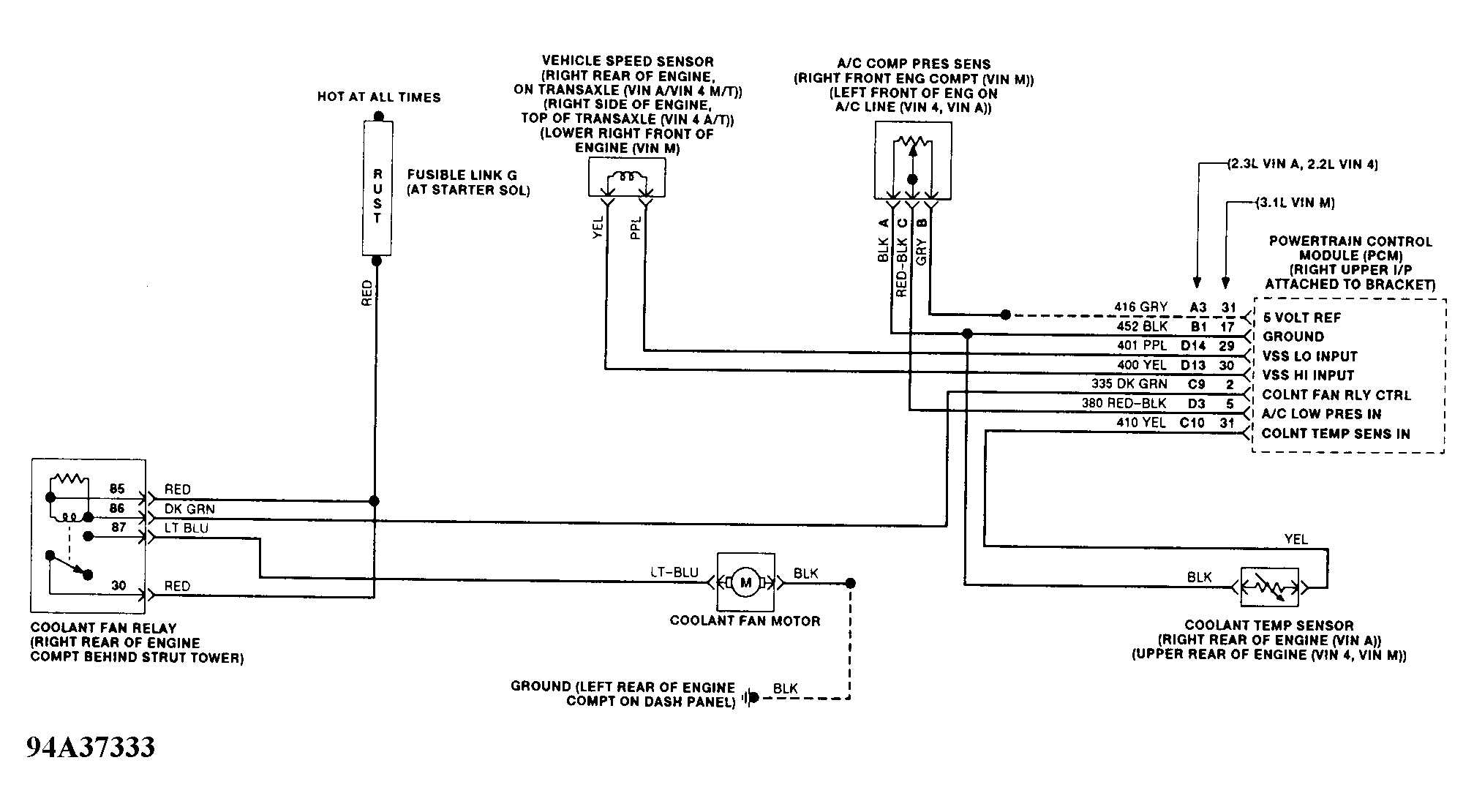

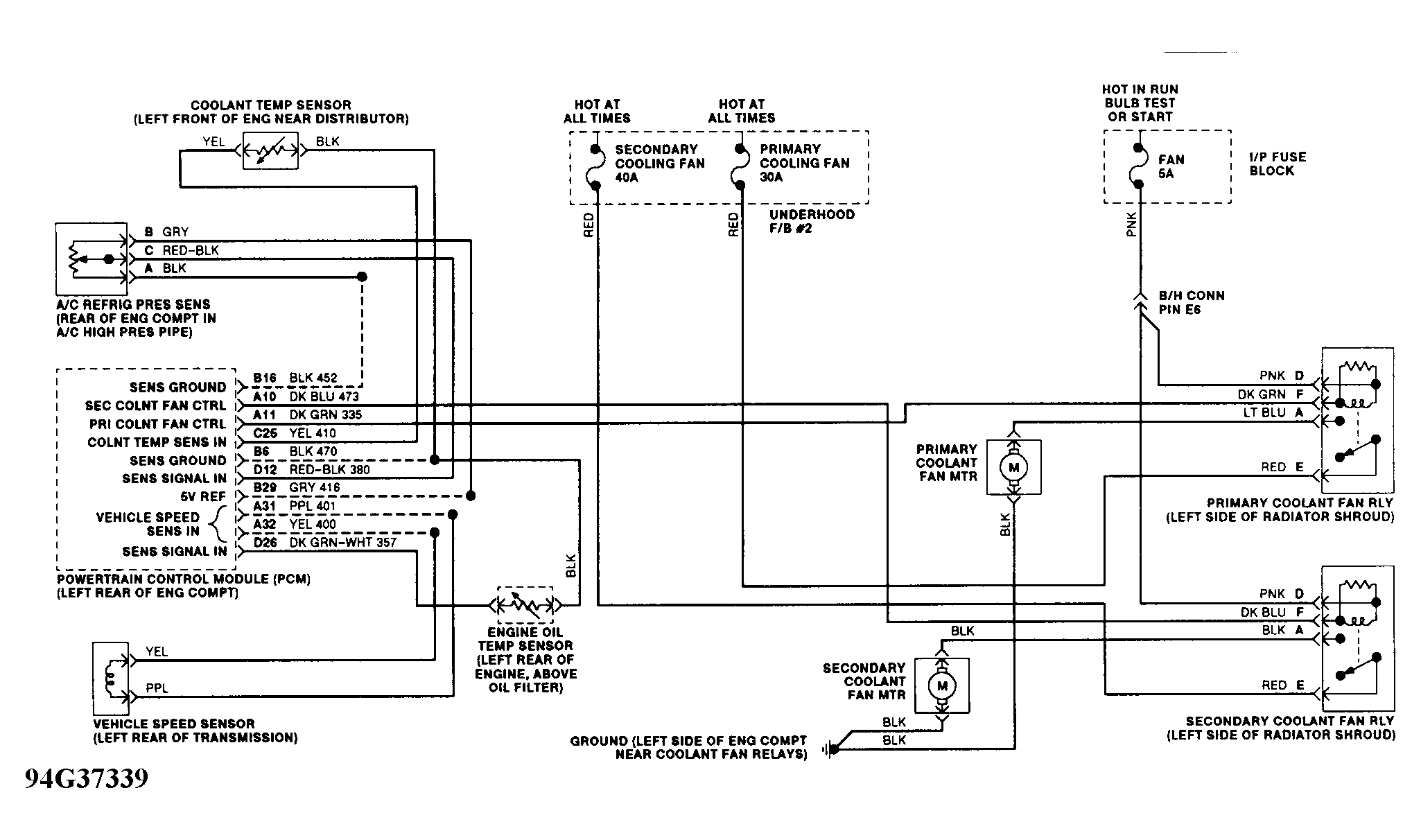

Fig 1: Cooling Fan Circuit Wiring Diagram ("A" Body - 2.2L VIN 4)

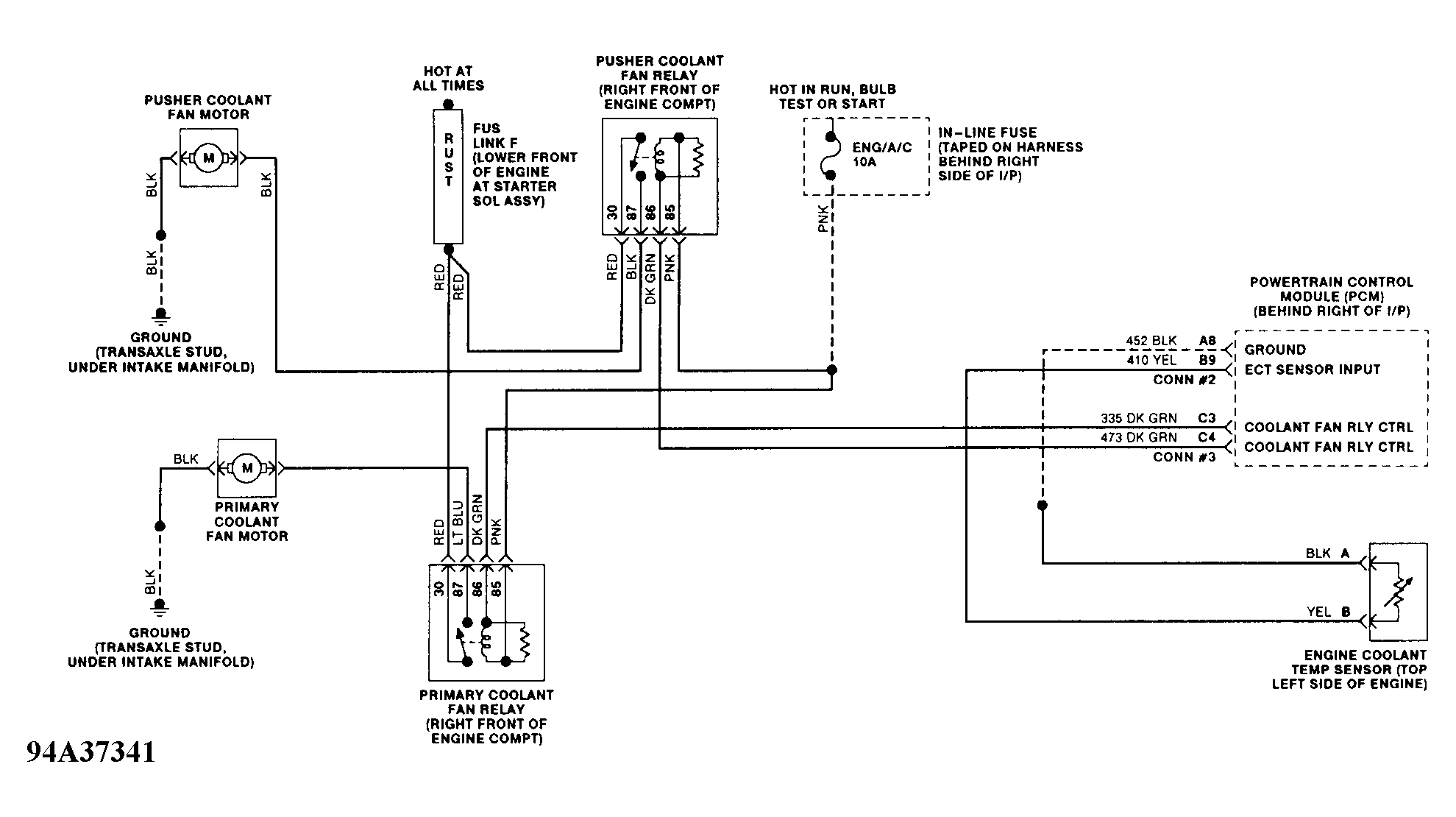

Fig 2: Cooling Fan Circuit Wiring Diagram ("A" Body - 3.1L VIN M)

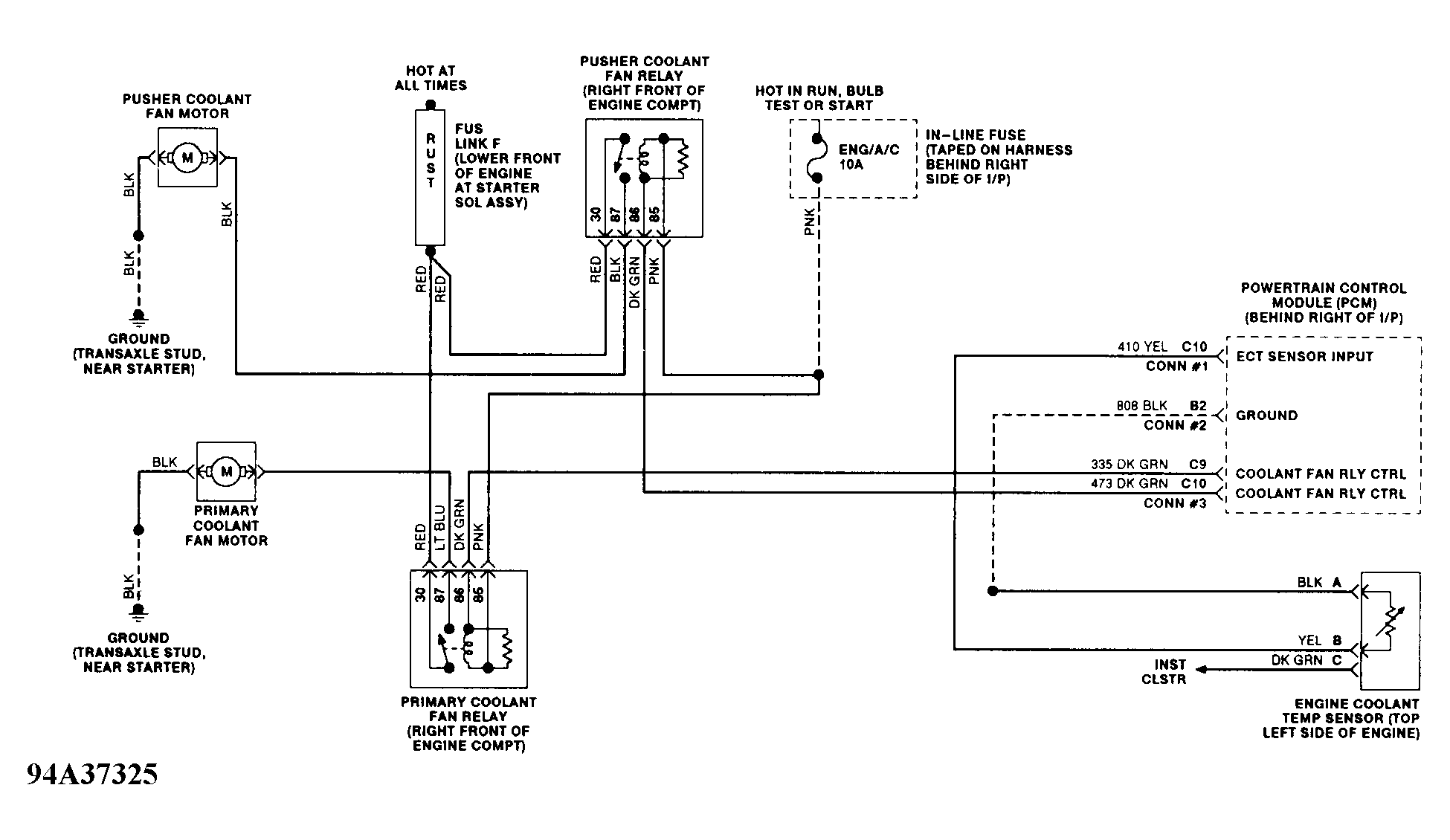

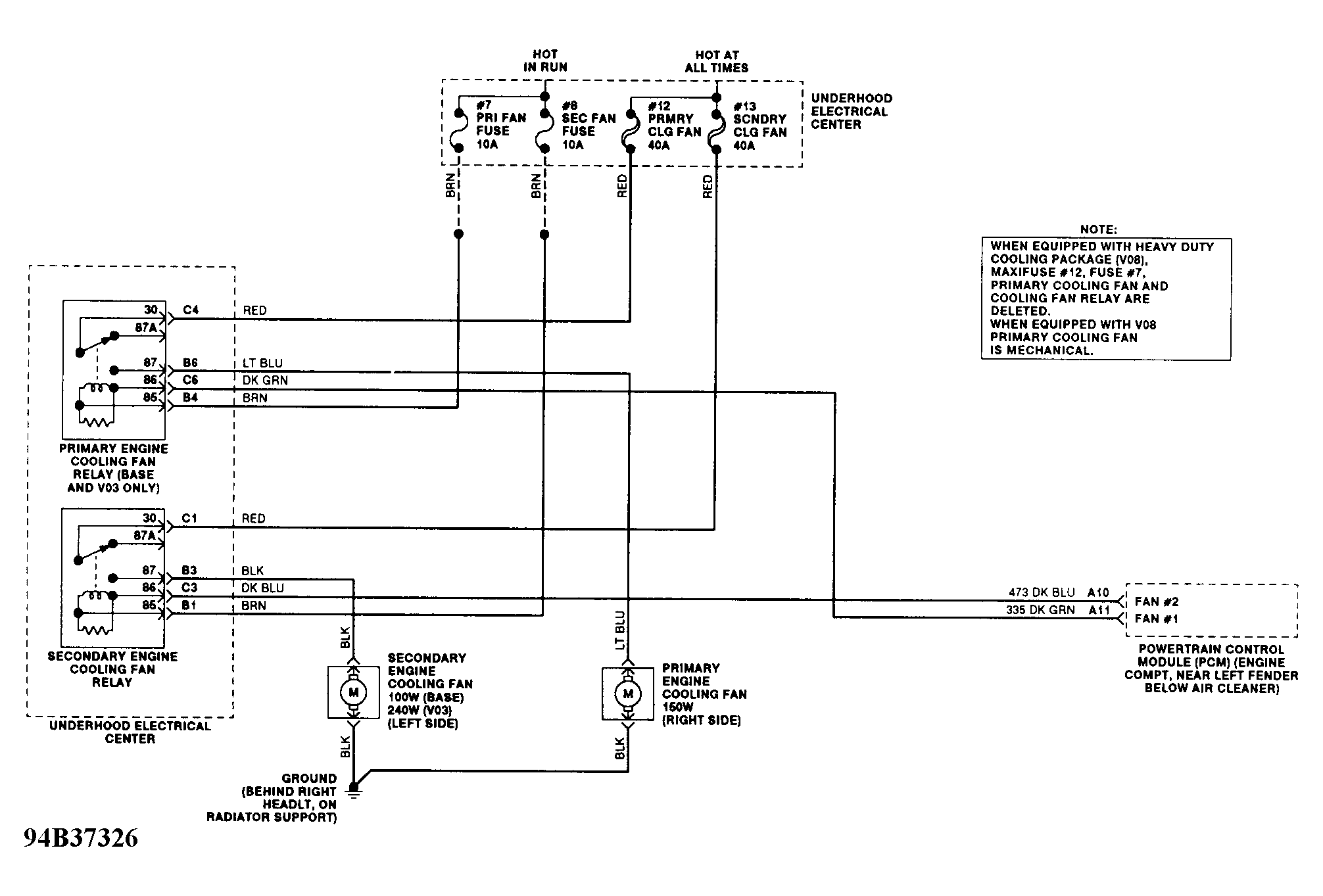

Fig 3: Cooling Fan Circuit Wiring Diagram ("B" Body)

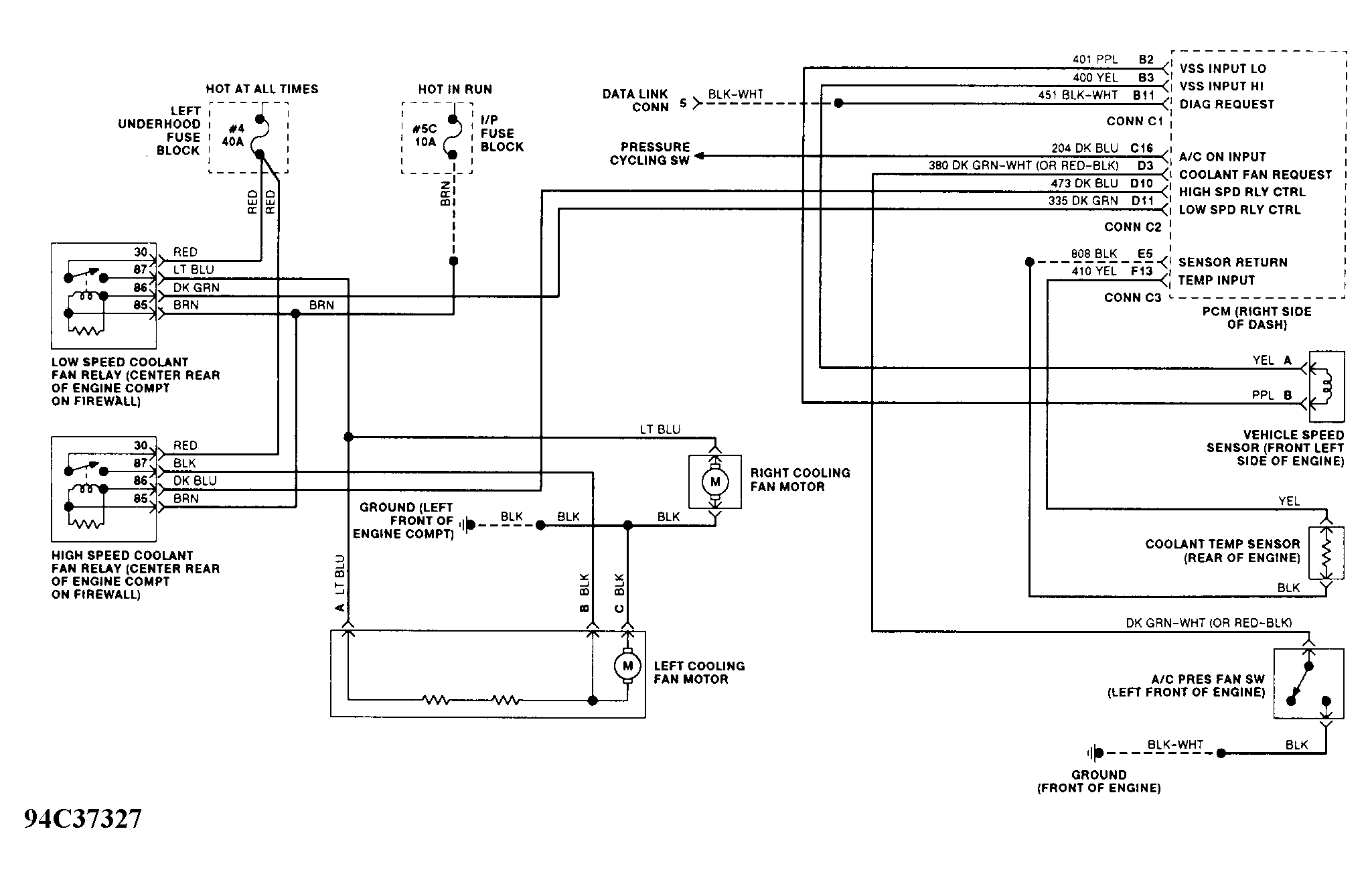

Fig 4: Cooling Fan Circuit Wiring Diagram ("C" & "H" Body)

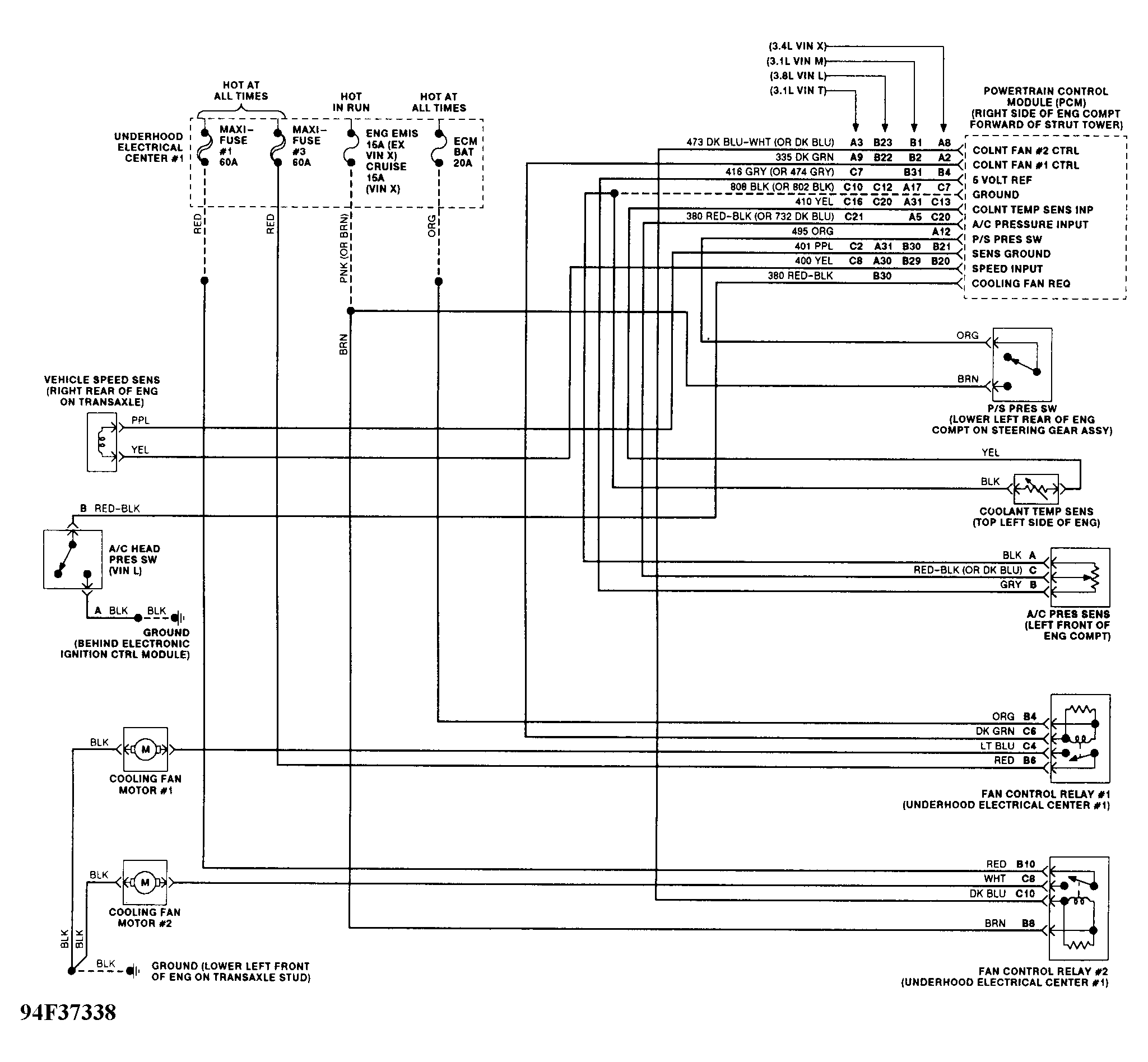

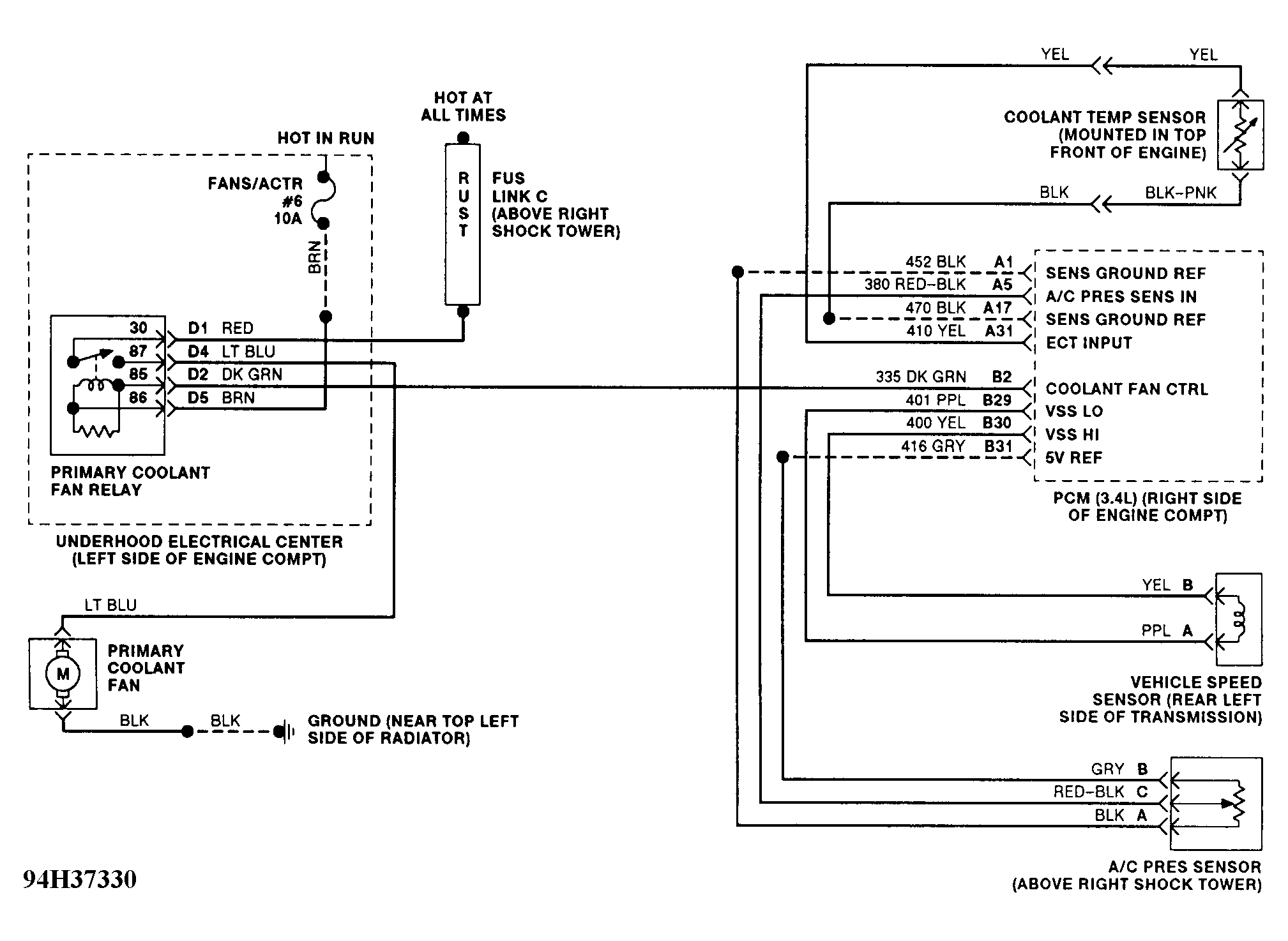

Fig 5: Cooling Fan Circuit Wiring Diagram ("F" Body - 3.4L VIN S)

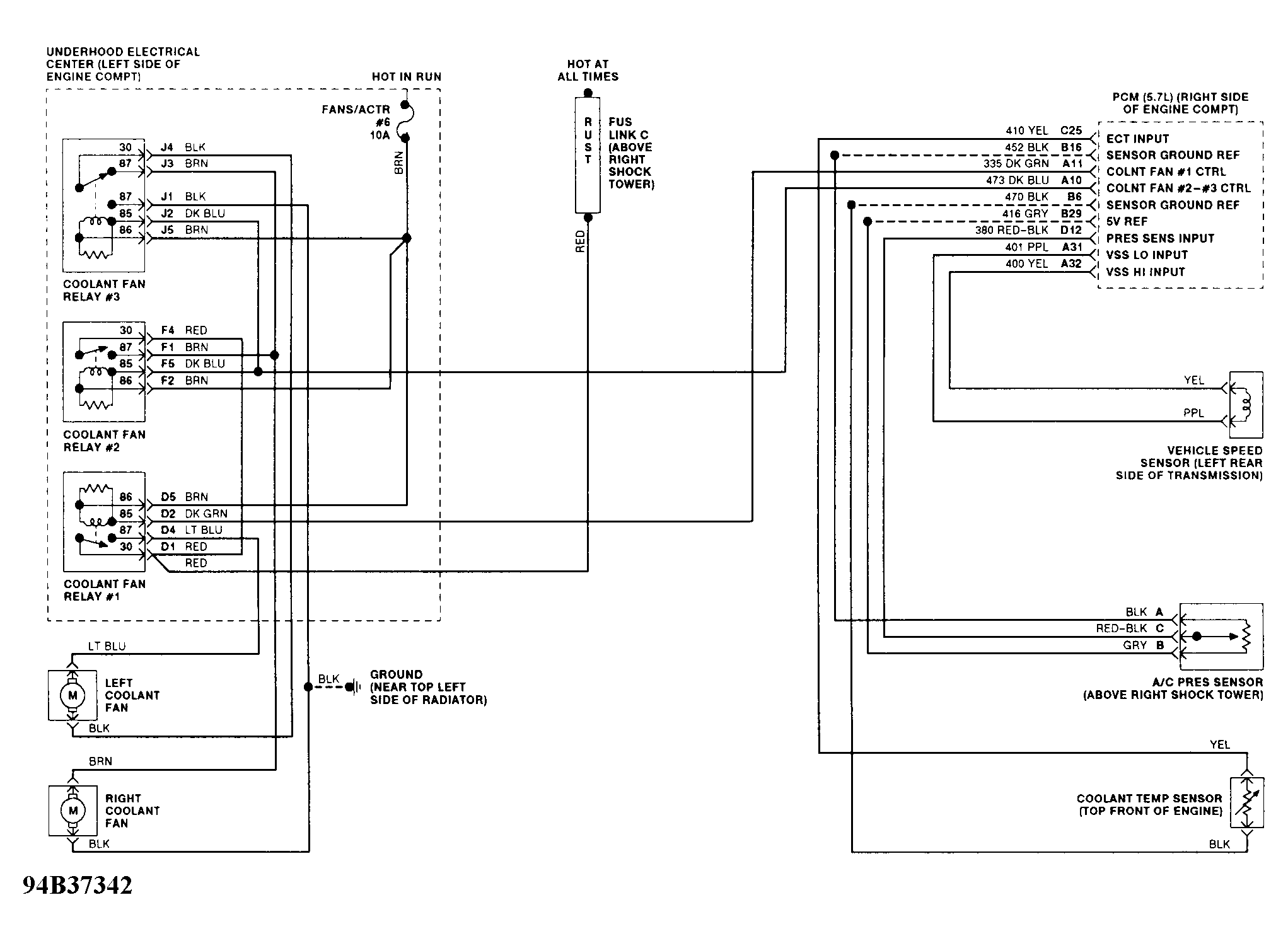

Fig 6: Cooling Fan Circuit Wiring Diagram ("F" Body - 5.7L VIN P Early)

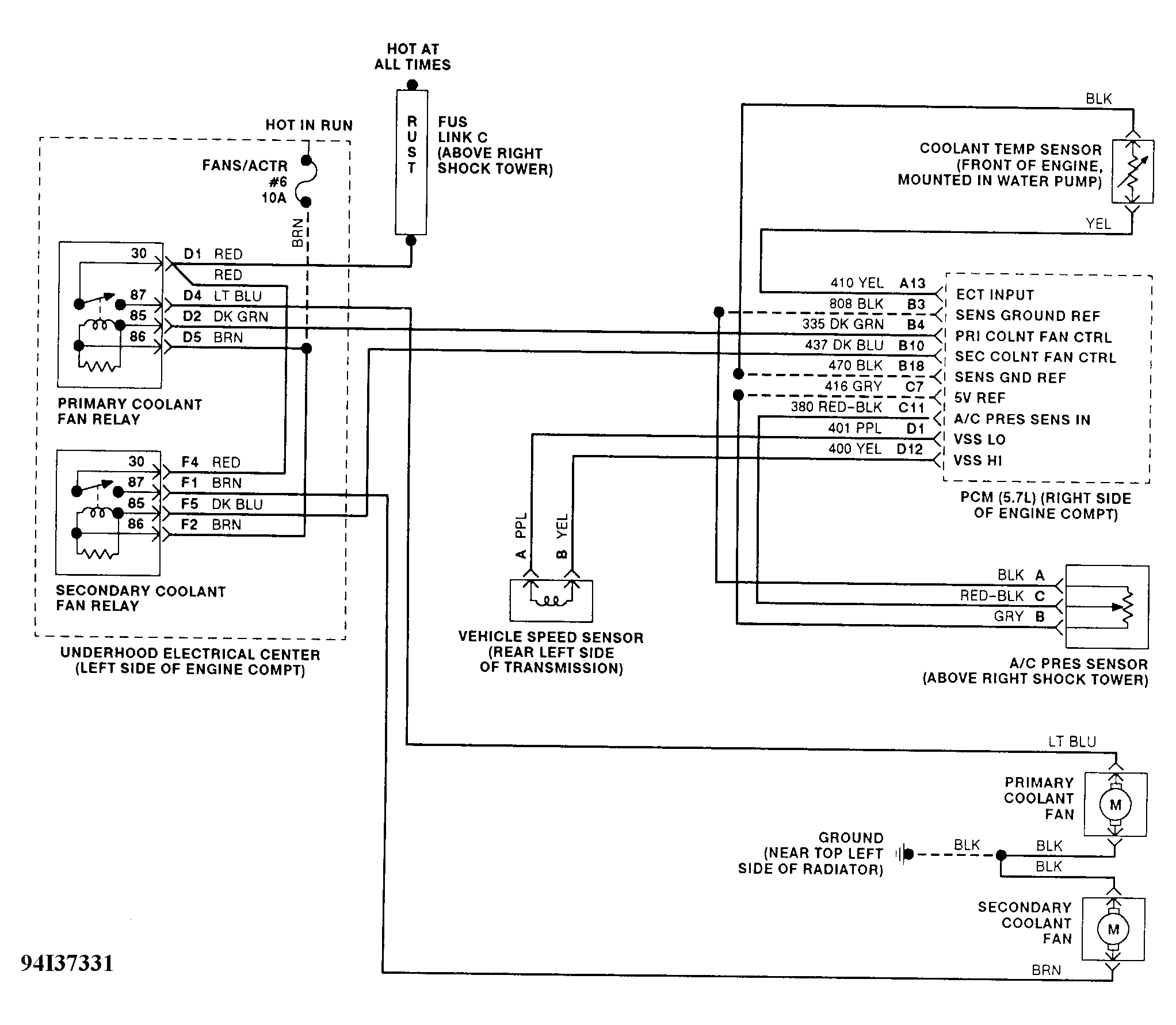

Fig 7: Cooling Fan Circuit Wiring Diagram ("F" Body - 5.7L VIN P Late)

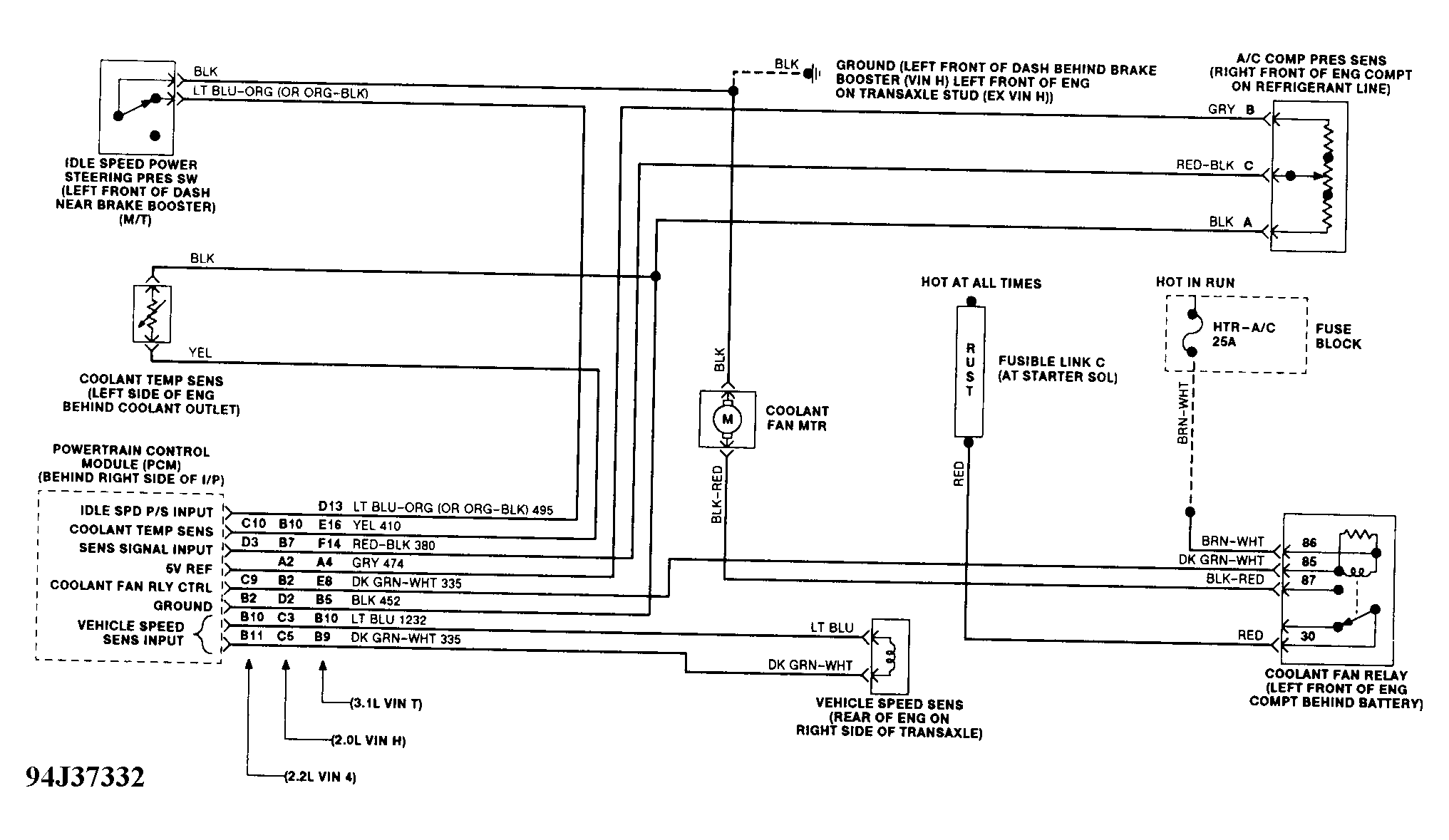

Fig 8: Cooling Fan Circuit Wiring Diagram ("J" Body) (2.0L VIN H, 2.2L VIN 4 & 3.1L VIN T)

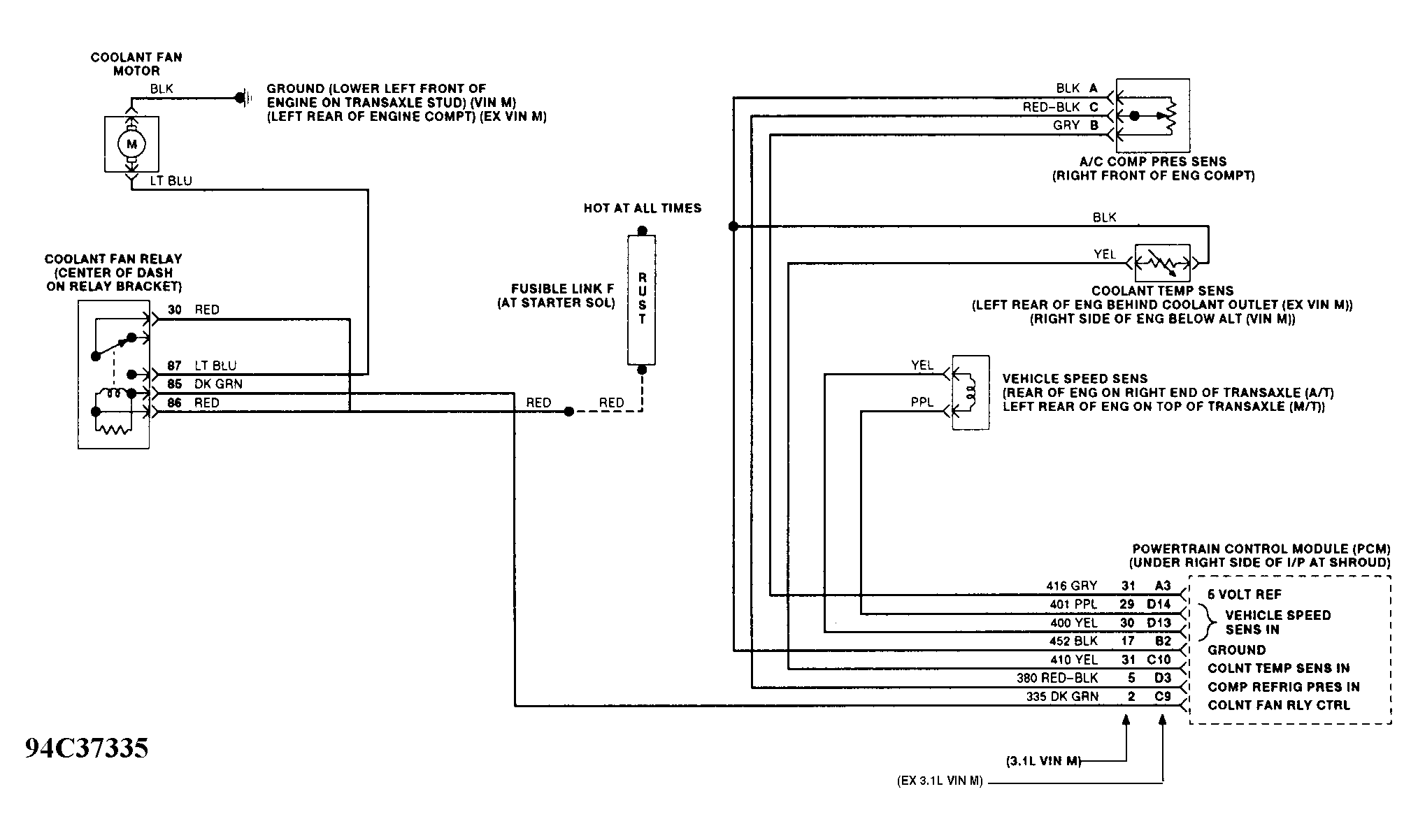

Fig 9: Cooling Fan Circuit Wiring Diagram ("L" Body) (2.2L VIN 4, 2.3L VIN A & 3.1L VIN M)

Fig 10: Cooling Fan Circuit Wiring Diagram ("N" Body)

Fig 11: Cooling Fan Circuit Wiring Diagram ("W" Body)

Fig 12: Cooling Fan Circuit Wiring Diagram ("Y" Body - 5.7L VIN P)
