Flow Chart 11B, Lower Support Deflate Mode Inoperative

INFLATE OPERATES NORMALLY (ROADMASTER)

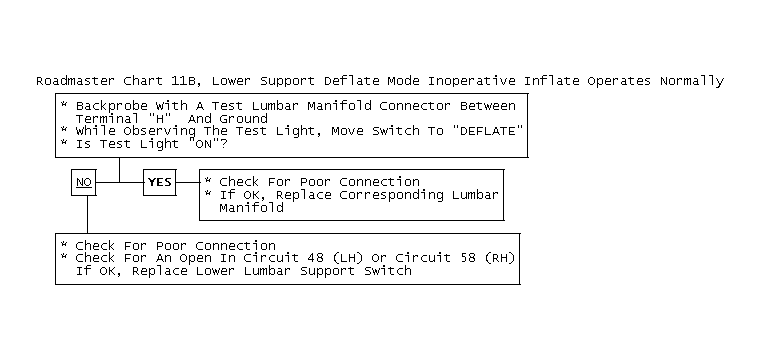

Fig 1: Roadmaster Chart 11B, Lower Support Deflate Mode Inoperative Inflate Operates Normally

GB0022367
