Wiper/Washer System - Front: Testing: Notes

Before performing following tests, ensure wiper motor module-to-dash mounting hardware is secure, washer hoses are not kinked, disconnected or broken, and circuit harness wiring and circuit fuses are okay.

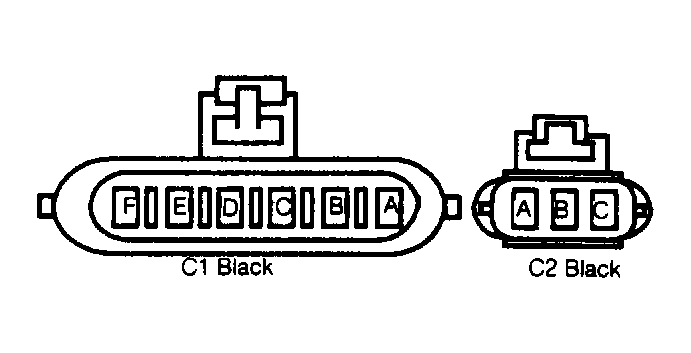

NOTE: For terminal and connector reference during wiper tests, see Figure or Figure , or see WIRING DIAGRAMS .

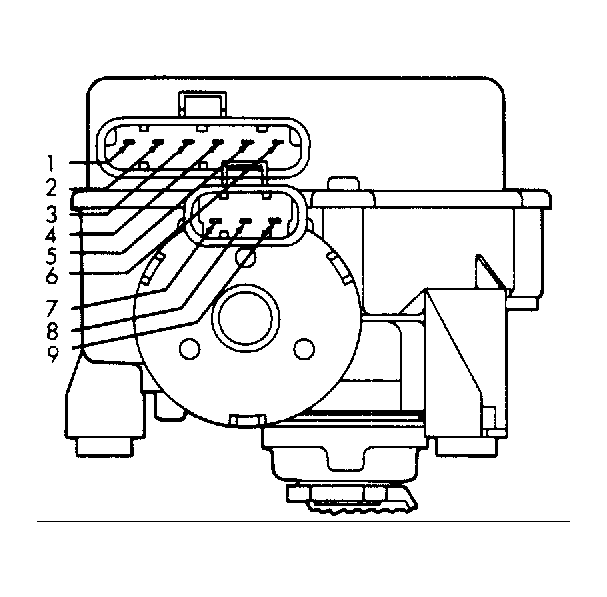

Fig 1: Identifying Wiper Motor Assembly Connector Terminals

Courtesy of GENERAL MOTORS CORP.
