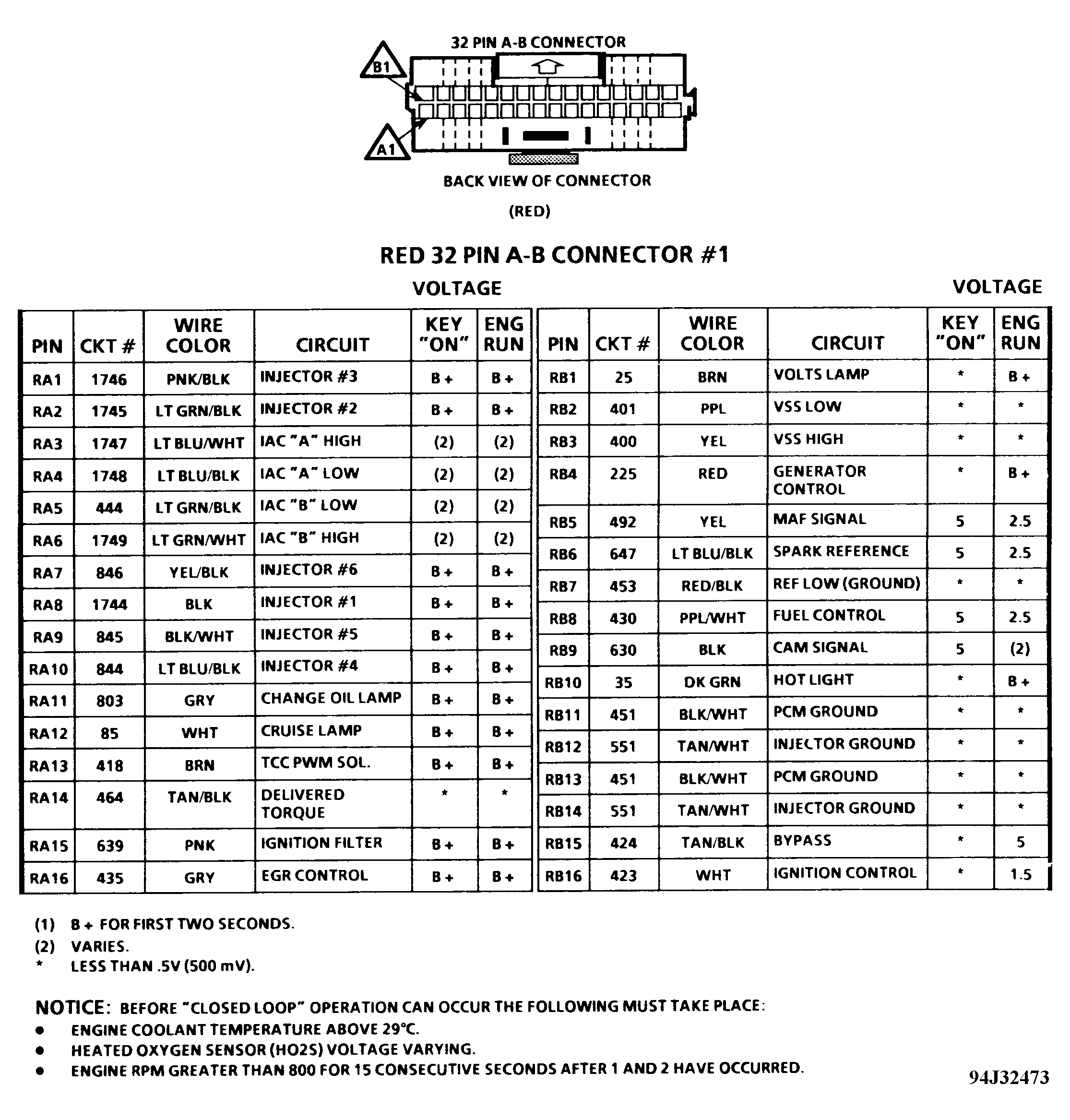

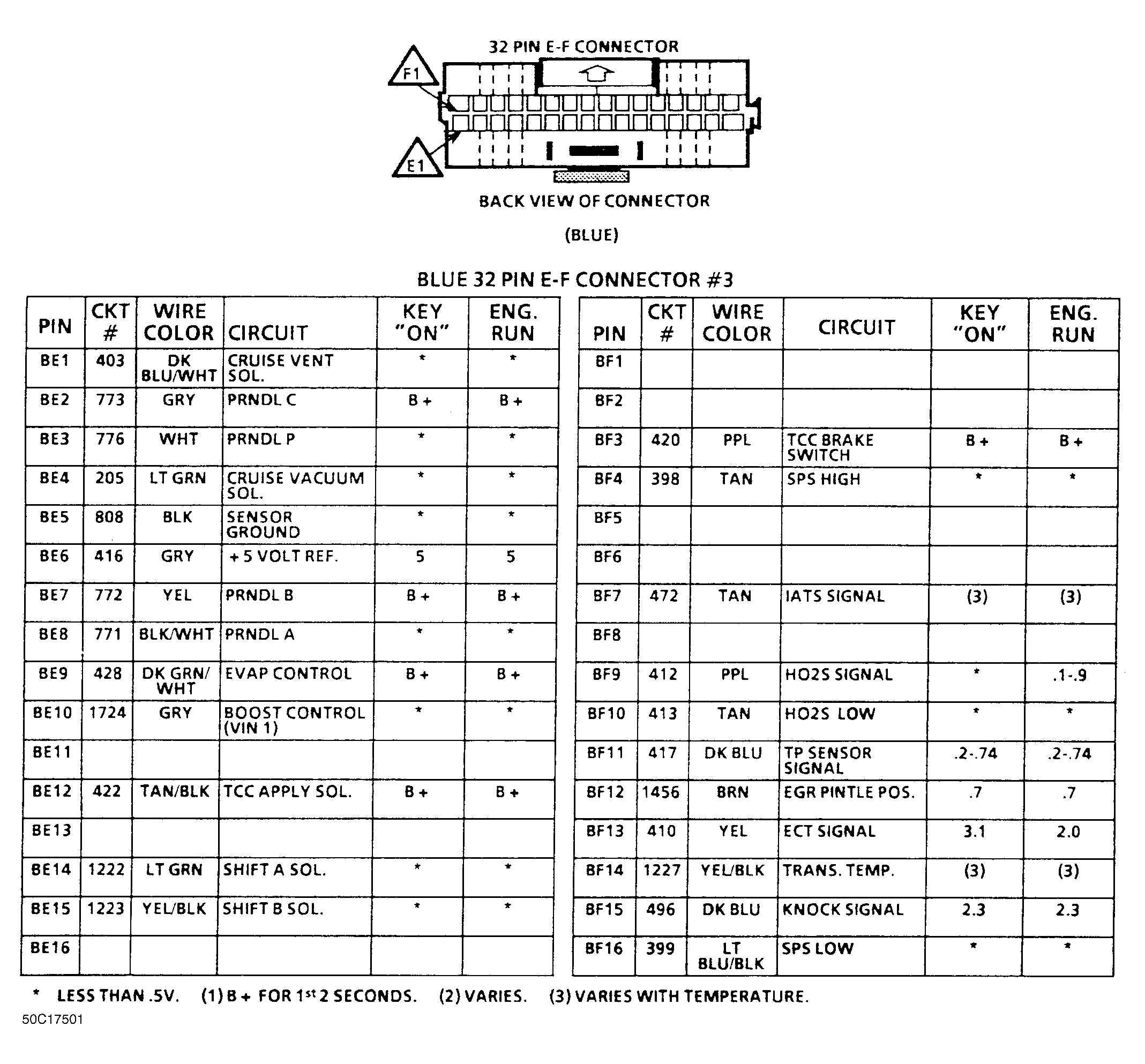

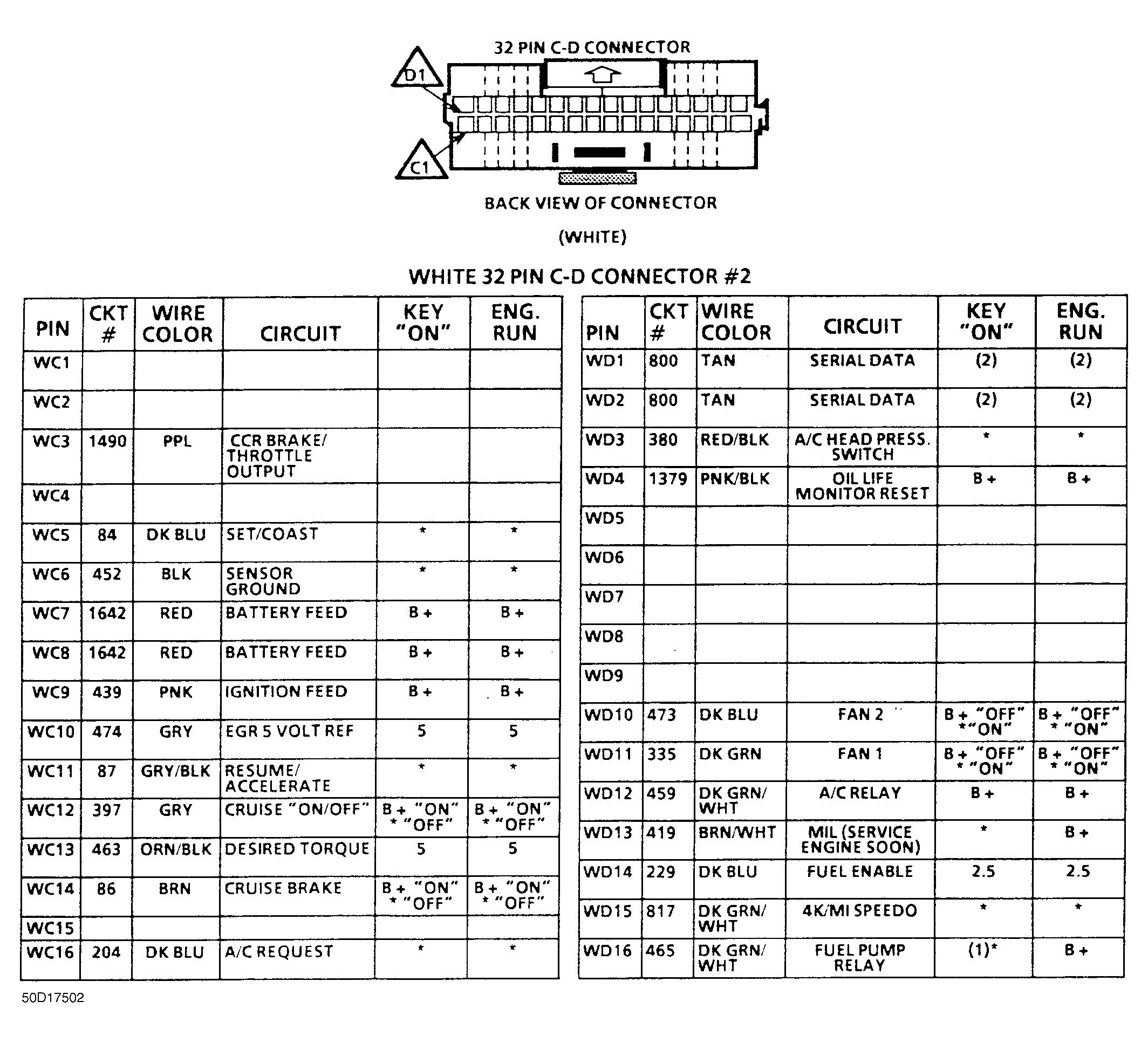

Pin Voltage Charts
Following conditions must be met before testing:
- Engine at operating temperature.
- Engine in closed loop operation.
- Engine idling (ENG. "RUN" column).
- DLC "test" terminal not grounded.
- Scan tester not installed.
- Brake not applied.
- B+ indicates battery voltage.
