Engine Mechanical: Starter: Overhaul: Starter

CAUTION: DO NOT clean starter in degreasing tank or with grease dissolving solvents. This will remove lubricant from clutch mechanism.

Starter motors do not require lubrication, except during overhaul. Roll-type overrunning clutch requires no lubrication. The drive assembly, however, should be wiped clean and lubricated with silicon grease on the shaft and underneath the overrunning clutch assembly. See Fig 1 and Fig 2 .

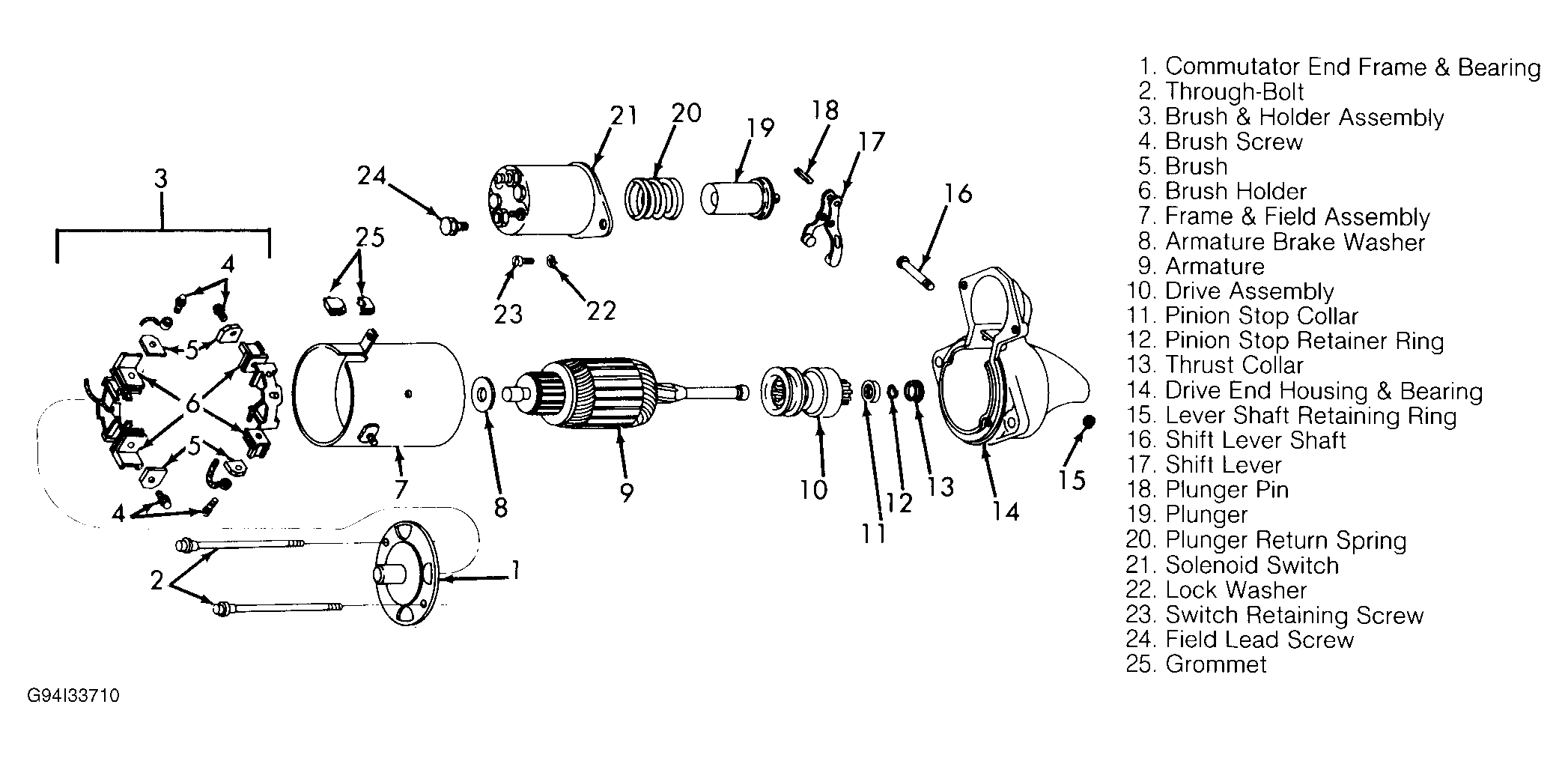

Fig 1: Exploded View Of Delco-Remy Starter Motor (SD250)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View Of Delco-Remy Starter Motor (PG250)

Courtesy of GENERAL MOTORS CORP.
