Home >> Buick >> 1994 >> LeSabre Custom >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Warning Systems >> Lamp Monitor System >> Testing >> Test A - Adaptive Lamp Monitor Module Input/Output

Test A - Adaptive Lamp Monitor Module Input/Output

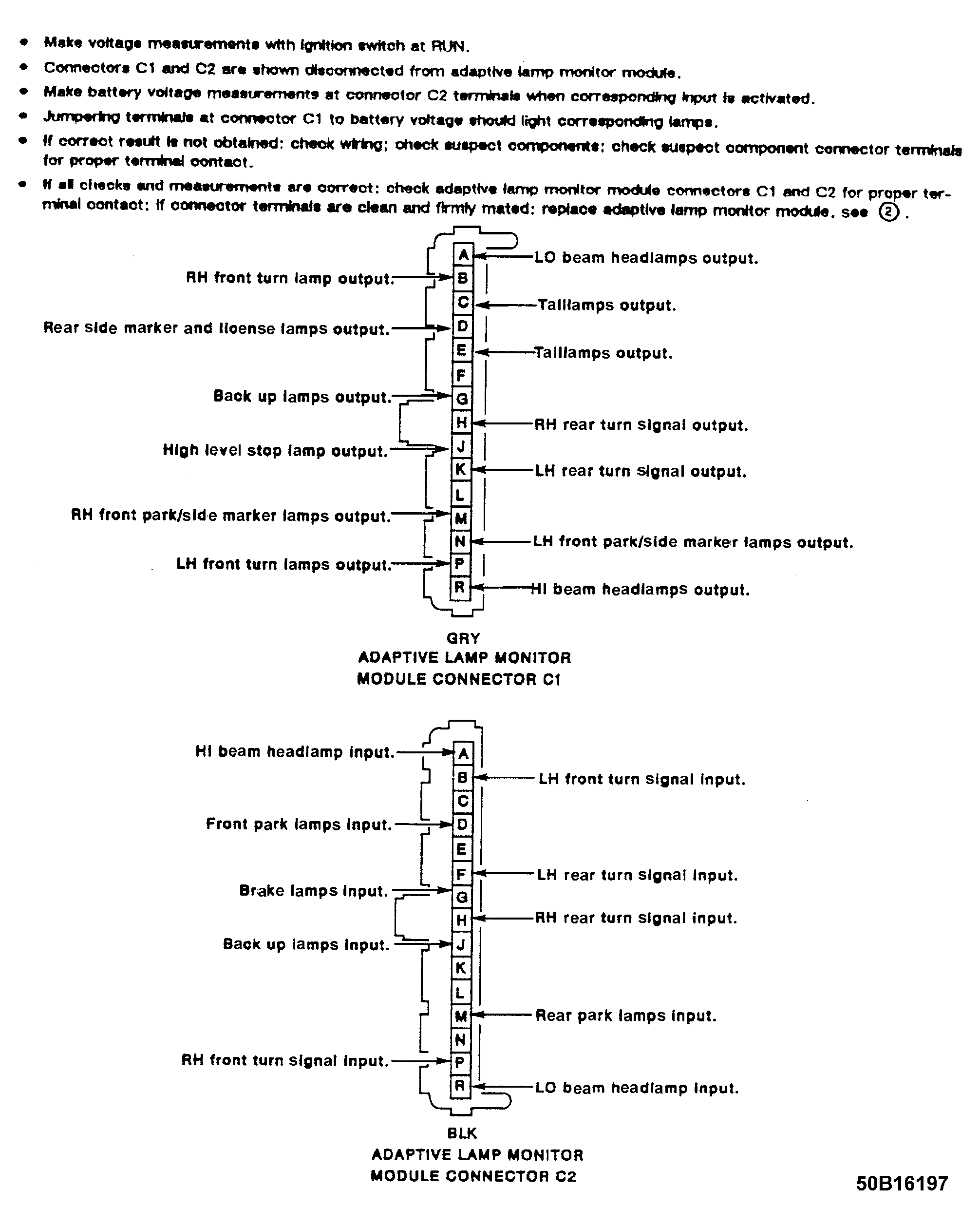

Fig 1: Test A - Adaptive Lamp Monitor Module Input/Output

G50B16197
