Home >> Buick >> 1993 >> Roadmaster Base >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System - Variable Effort >> Wiring Diagram

Steering System - Variable Effort: Wiring Diagram

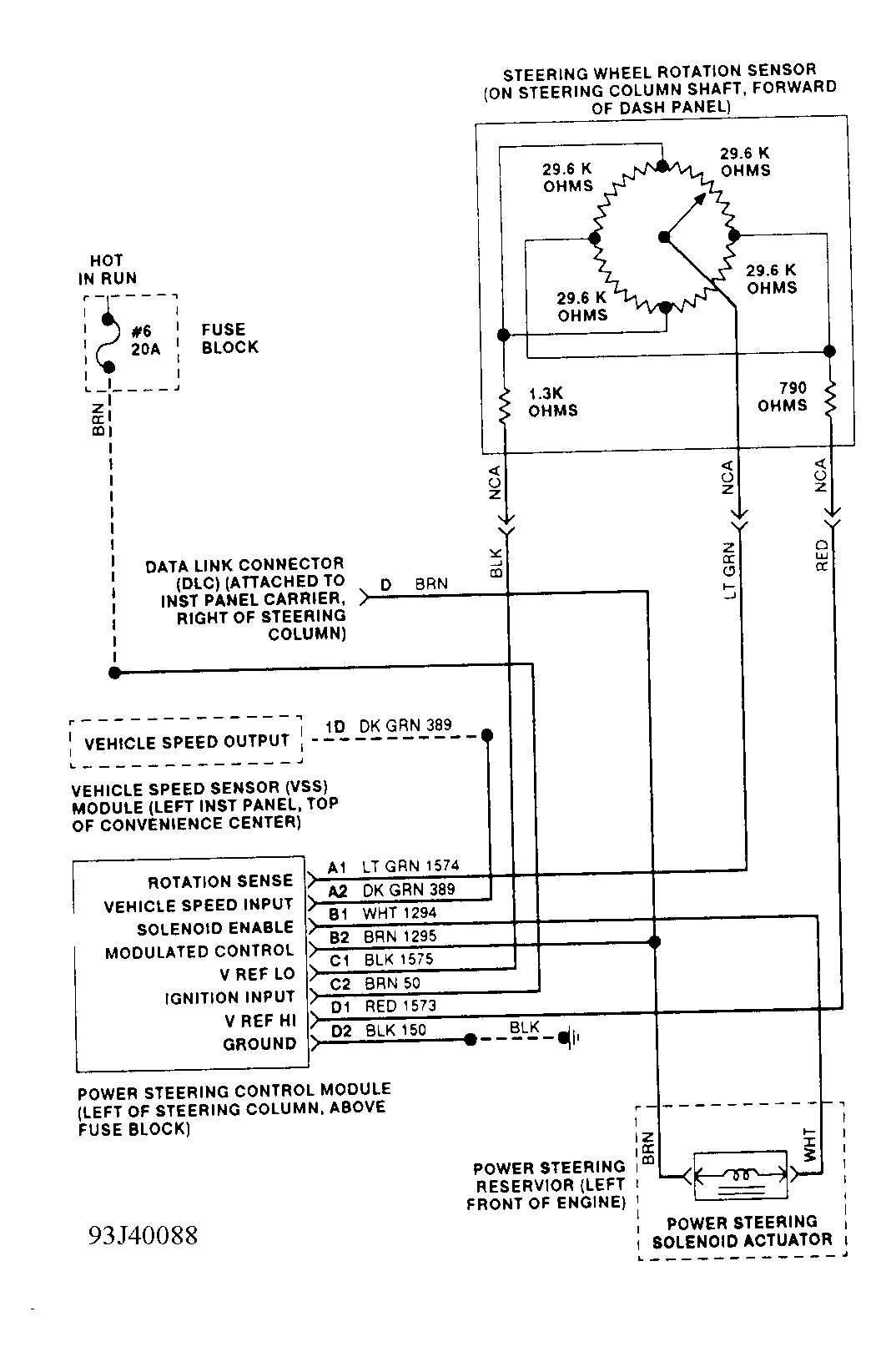

Fig 1: Variable Effort Steering (VES) System Wiring Diagram

G93J40088
