Wiring Diagrams

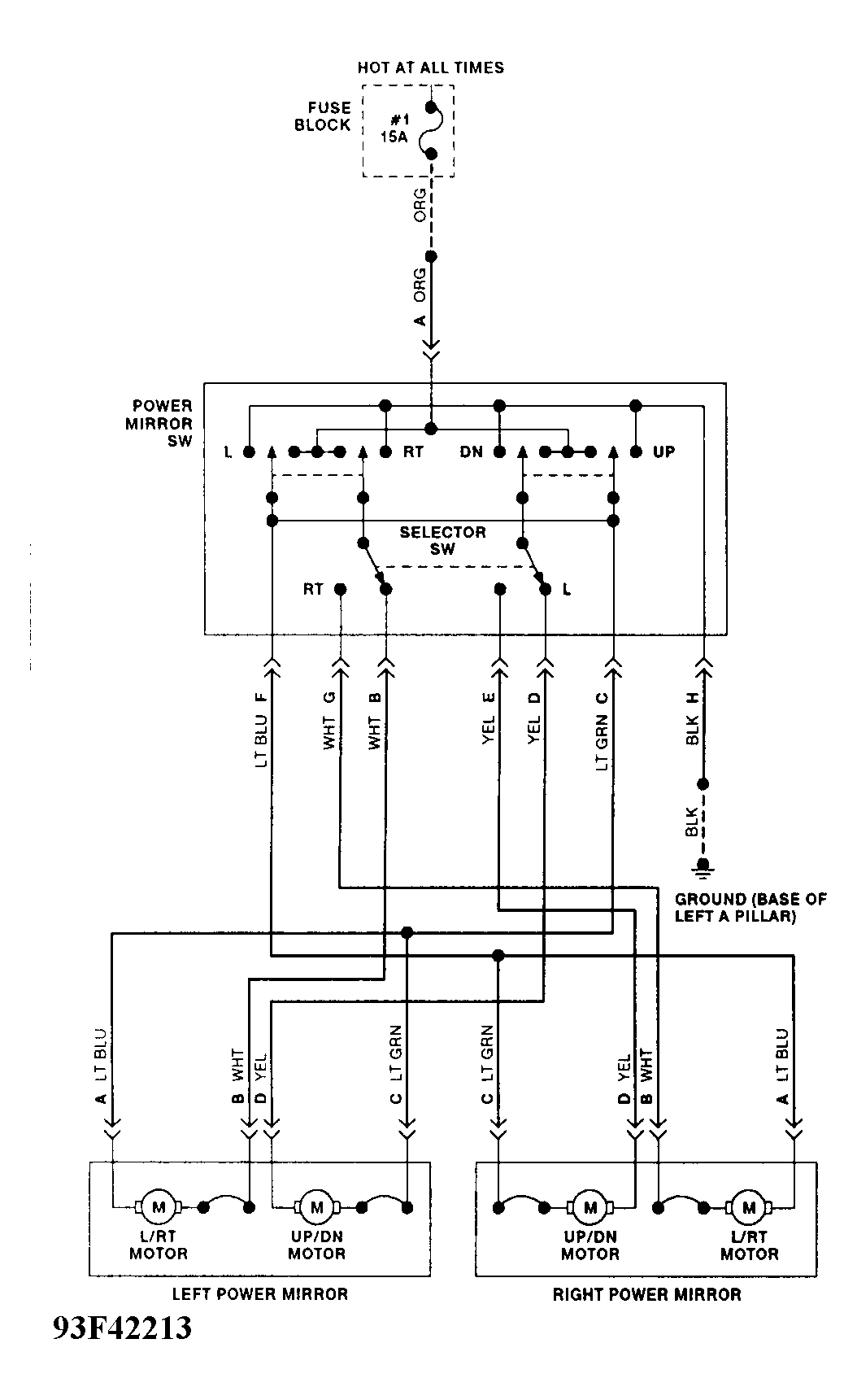

Fig 1: Power Mirror Wiring Diagram

G93F42213

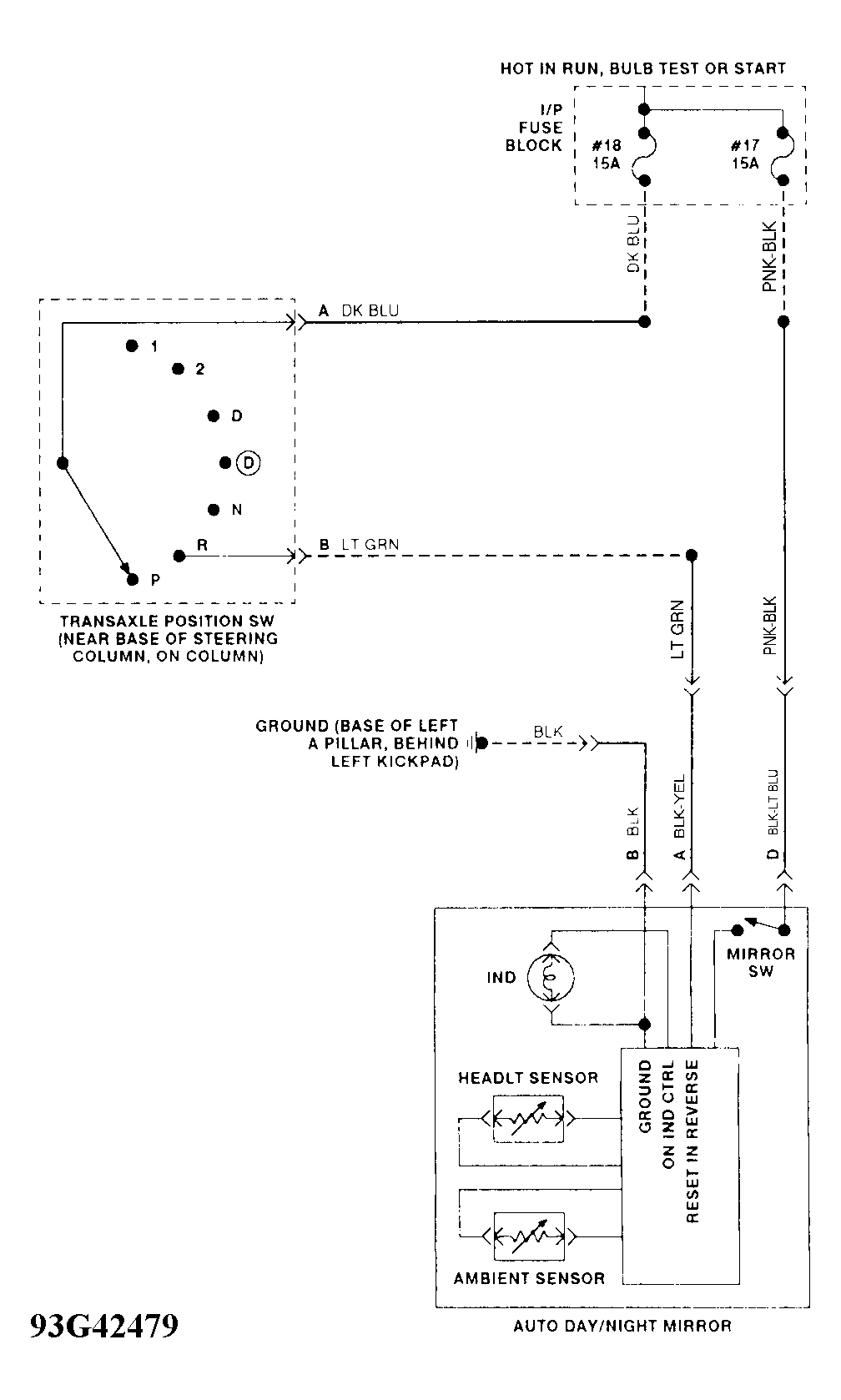

Fig 2: Automatic Mirror Wiring Diagram

G93G42479
