Connector Identification

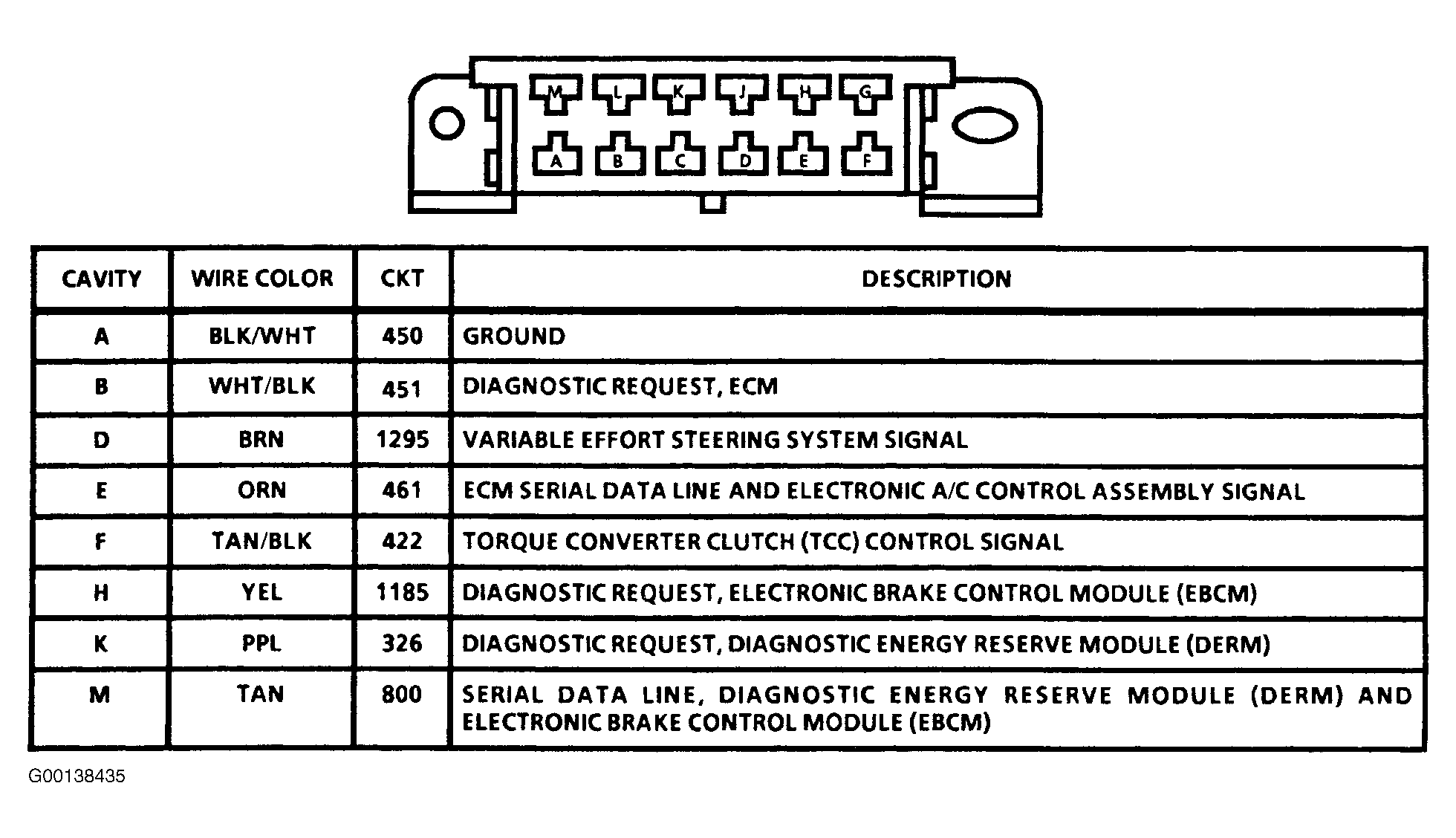

Fig 1: Identifying ALDL Connector Terminals

G00138435

Courtesy of GENERAL MOTORS CORP.
