Wiring Diagrams

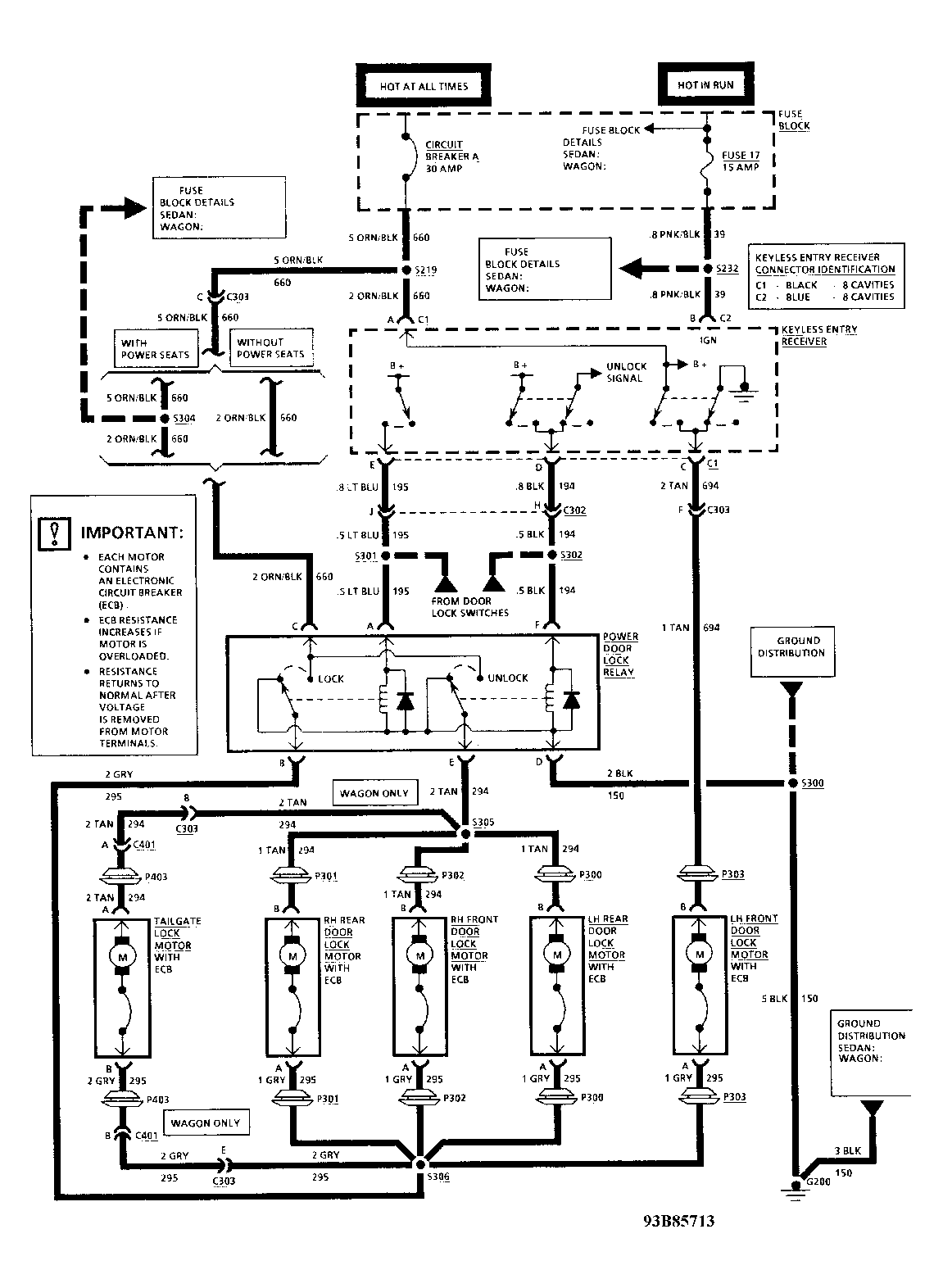

Fig 1: Keyless Entry Wiring Diagram (1 Of 3)
G93B85713Courtesy of GENERAL MOTORS CORP.

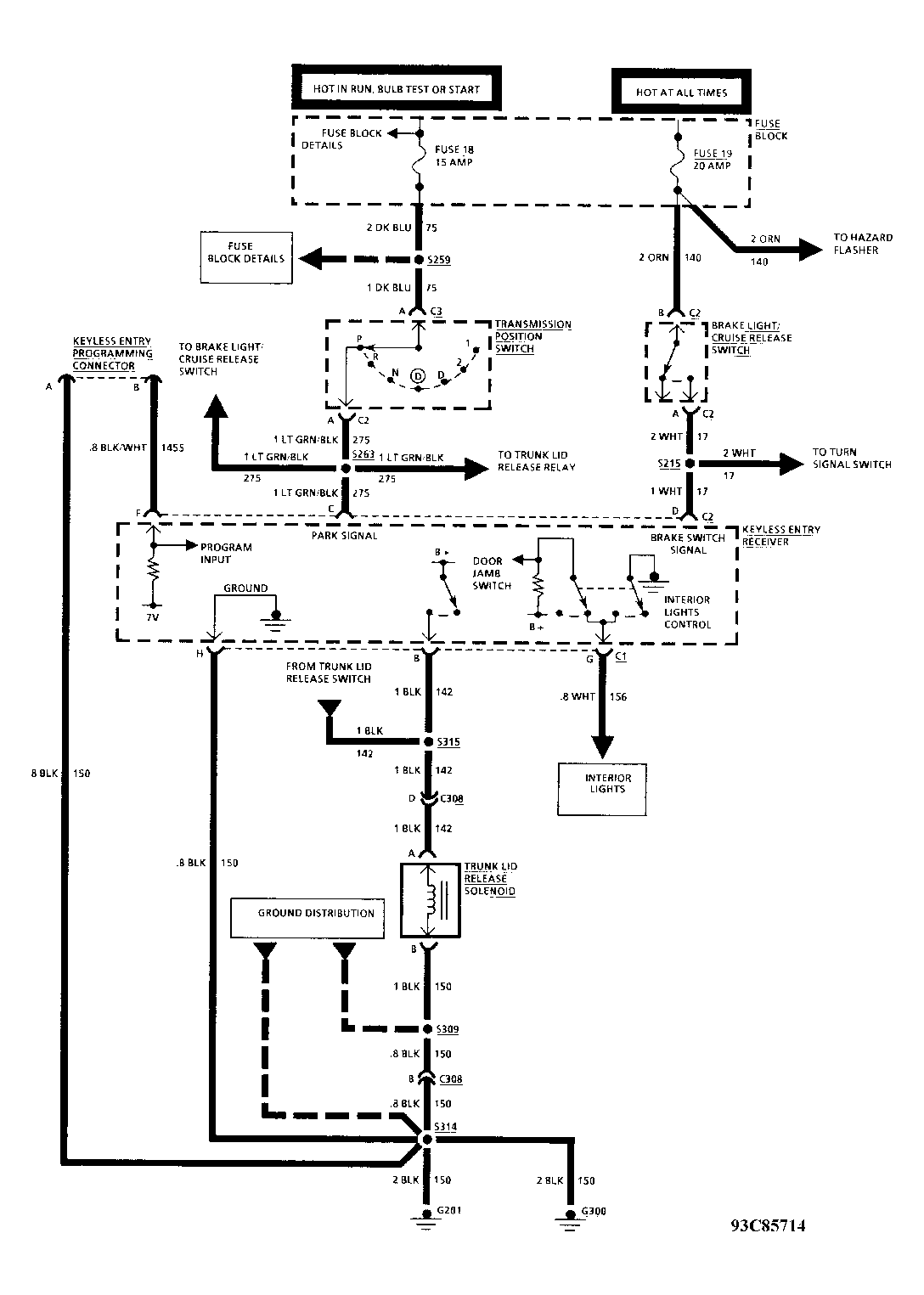

Fig 2: Keyless Entry Wiring Diagram (2 Of 3)
G93C85714Courtesy of GENERAL MOTORS CORP.

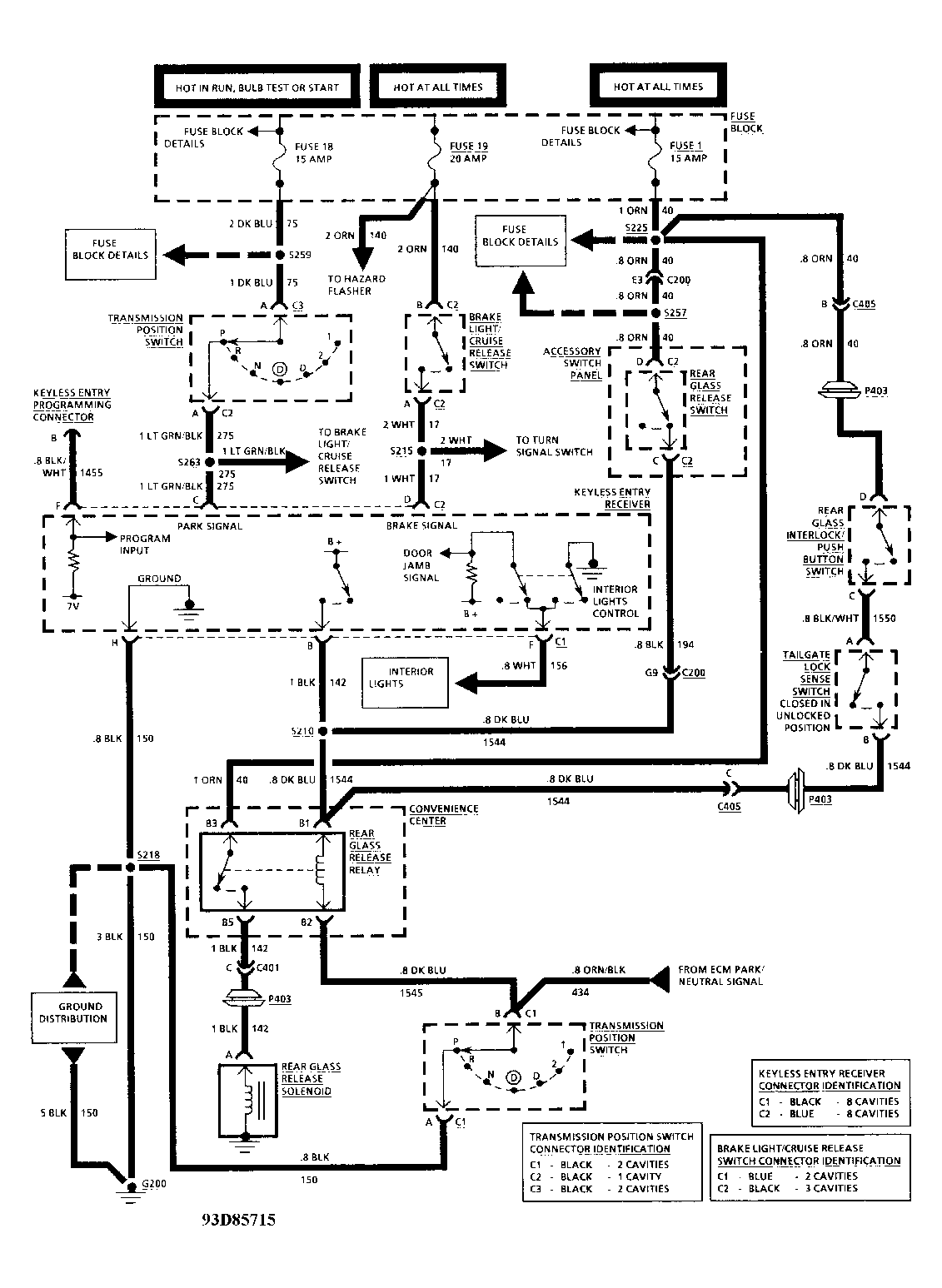

Fig 3: Keyless Entry Wiring Diagram (3 Of 3)
G93D85715Courtesy of GENERAL MOTORS CORP.
