Removal & Installation: Receiver

  1. On sedan, remove rear window panel trim assembly. On wagon, remove left quarter inner rear trim finish panel assembly. On all models, disconnect electrical connectors from receiver assembly. See Fig 1 or Fig 2 .
  2. On sedan, remove rivets attaching receiver assembly to rear window panel assembly. On wagon, remove bolts/screws attaching receiver assembly to bracket. On all models, if system programming is necessary, see RECEIVER PROGRAMMING  . To install, reverse removal procedure.

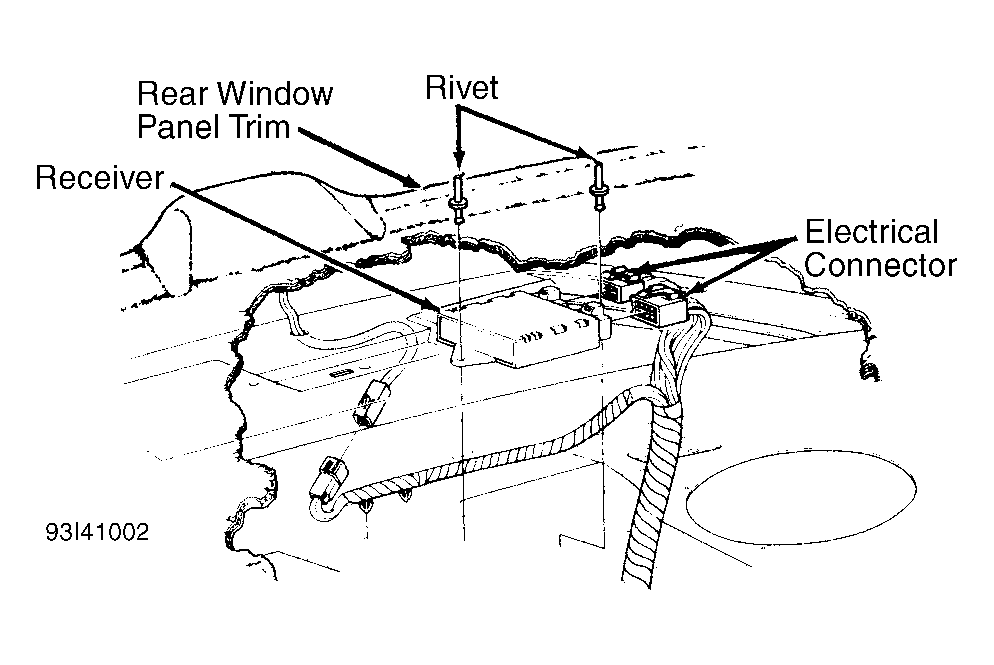

Fig 1: Receiver Assembly Location (Sedan)
G93I41002Courtesy of GENERAL MOTORS CORP.

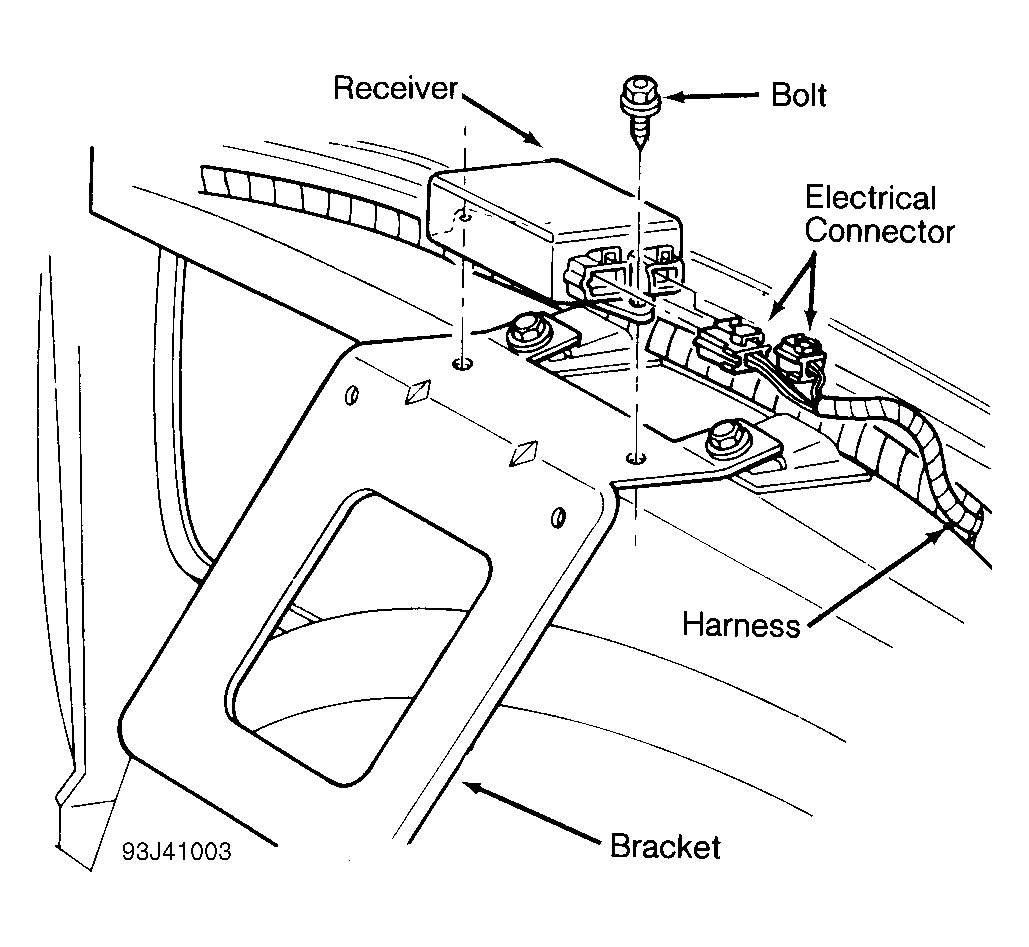

Fig 2: Receiver Assembly Location (Wagon)
G93J41003Courtesy of GENERAL MOTORS CORP.
