Flow Chart 8B, Upper Support Inflate Mode Inoperative Deflate Operates Normally (ROADMASTER)
Flow Chart 8B, Upper Support Inflate Mode Inoperative Deflate Operates Normally (ROADMASTER)

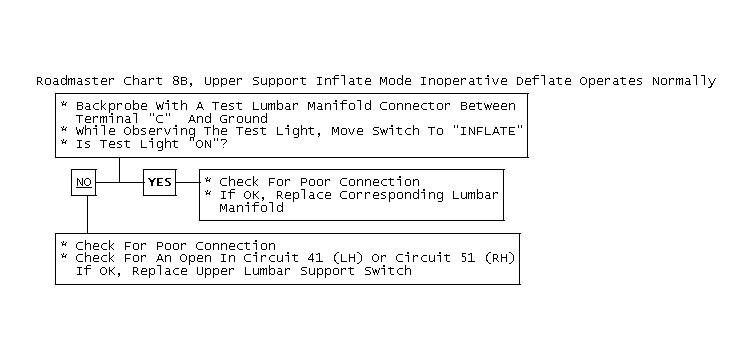

Fig 1: Roadmaster Chart 8B, Upper Support Inflate Mode Inoperative Deflate Operates Normally
