Flow Chart 7B, Upper Support Deflate Mode Inoperative Inflate Operates Normally (ROADMASTER)
Flow Chart 7B, Upper Support Deflate Mode Inoperative Inflate Operates Normally (ROADMASTER)

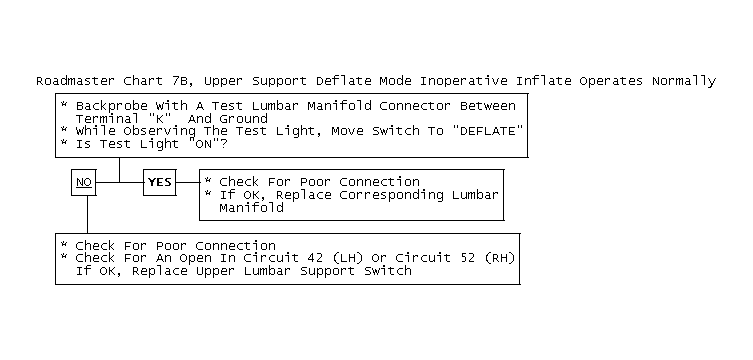

Fig 1: Roadmaster Chart 7B, Upper Support Deflate Mode Inoperative Inflate Operates Normally
