Flow Chart 11B, Lower Support Deflate Mode Inoperative Inflate Operates Normally (ROADMASTER)
Flow Chart 11B, Lower Support Deflate Mode Inoperative Inflate Operates Normally (ROADMASTER)

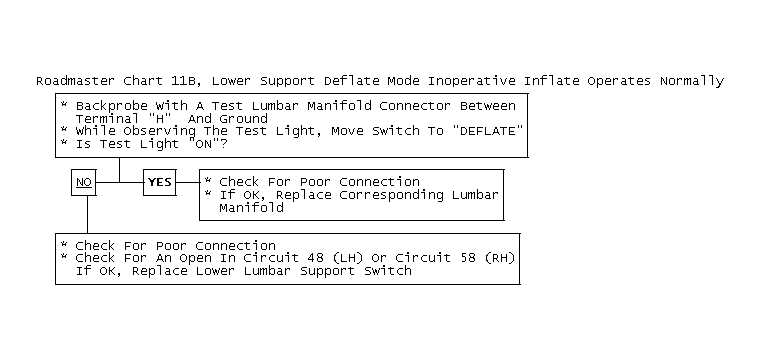

Fig 1: Roadmaster Chart 11B, Lower Support Deflate Mode Inoperative Inflate Operates Normally
