Test Description

  1. Determine a keyless entry fault or trunk lid release system fault.
  2. Checks for unwanted voltage at terminal "C" of Blue connector when transmission is in Drive.
  3. This test checks transmission position switch. With transmission in Park, transmission position switch should be closed, applying voltage to circuit No. 275.

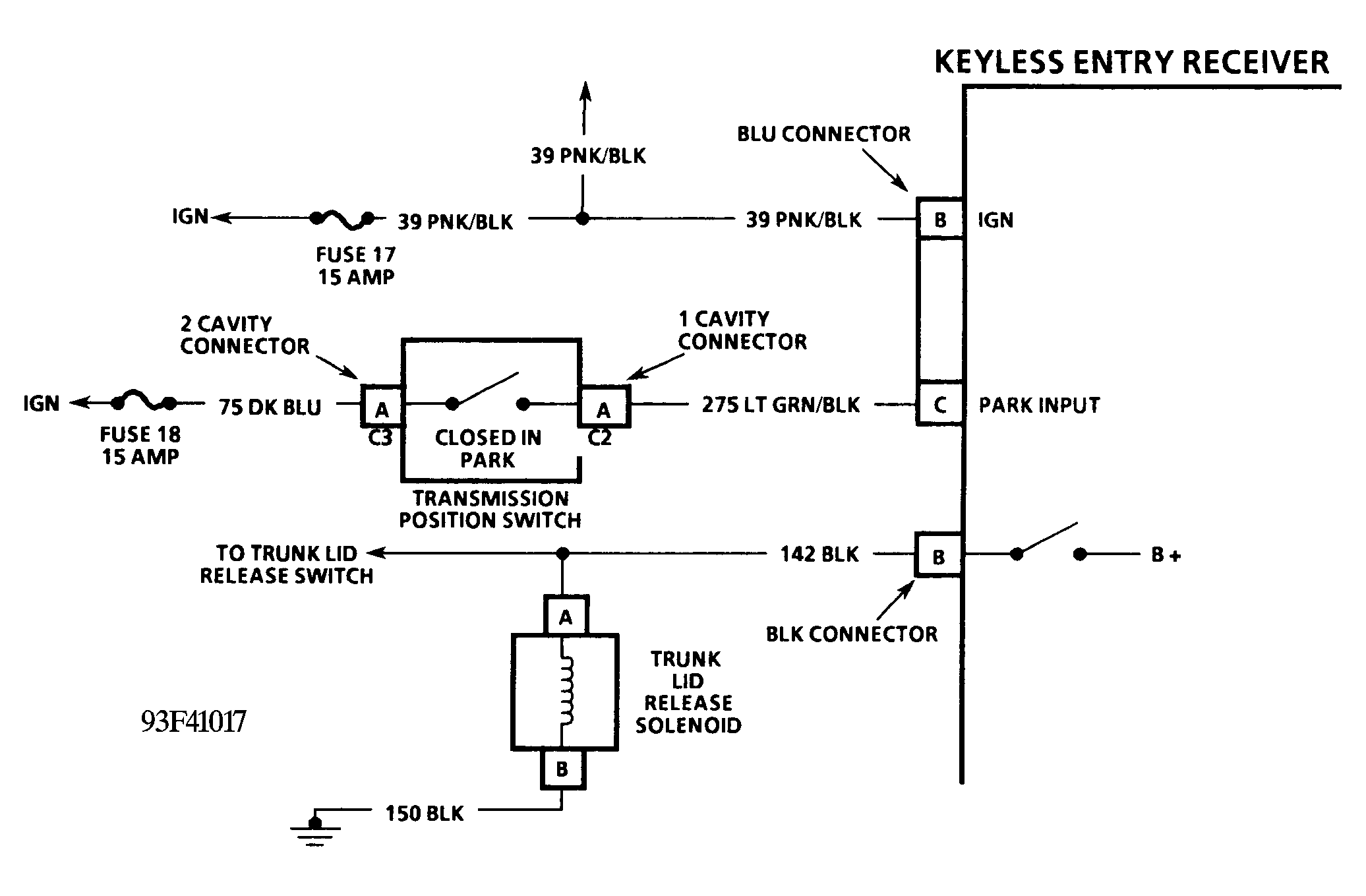

Fig 1: Test 6 (Sedan); Schematic
G93F41017Courtesy of GENERAL MOTORS CORP.

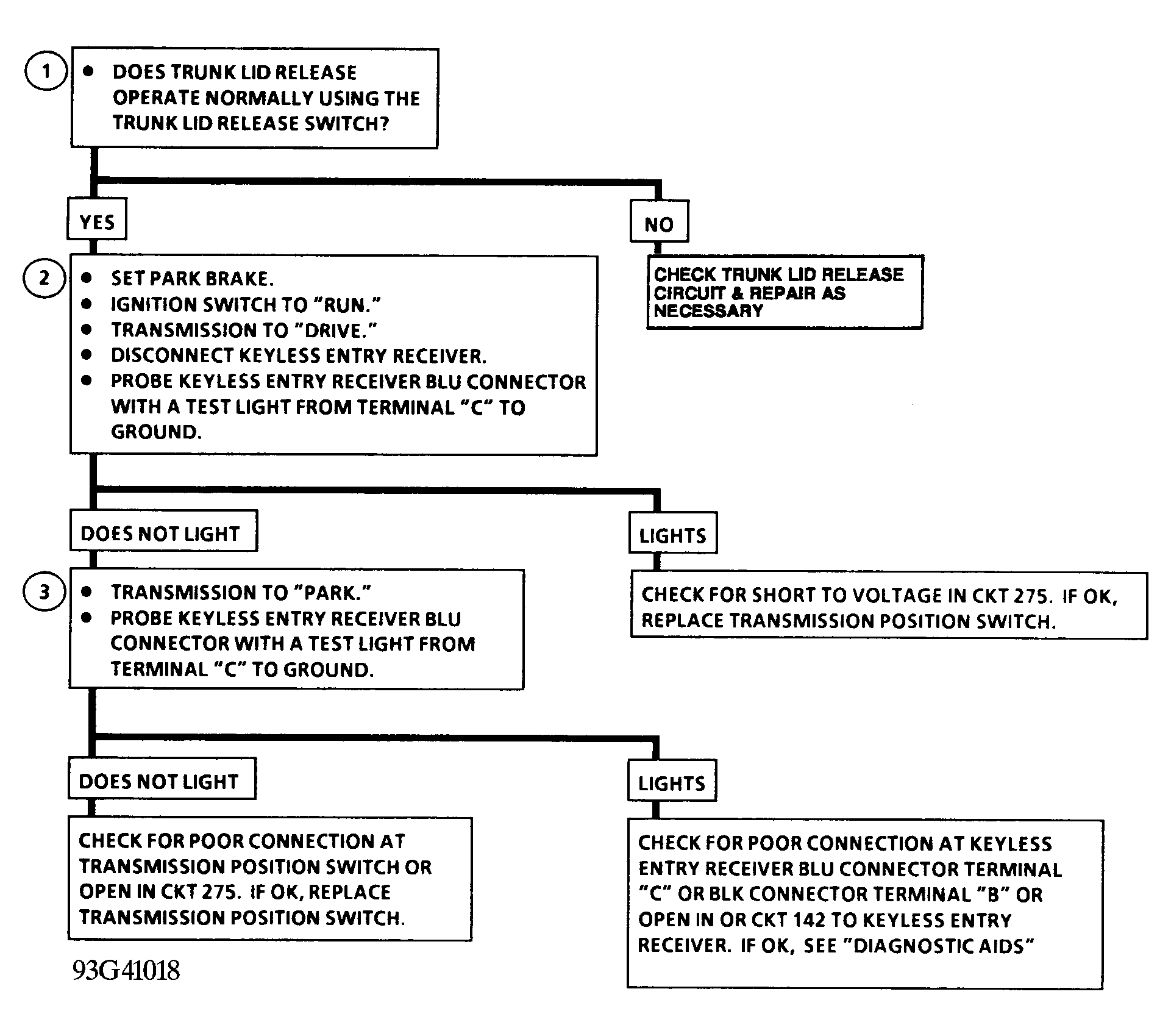

Fig 2: Test 6 (Sedan); Flow Chart
G93G41018Courtesy of GENERAL MOTORS CORP.
