Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

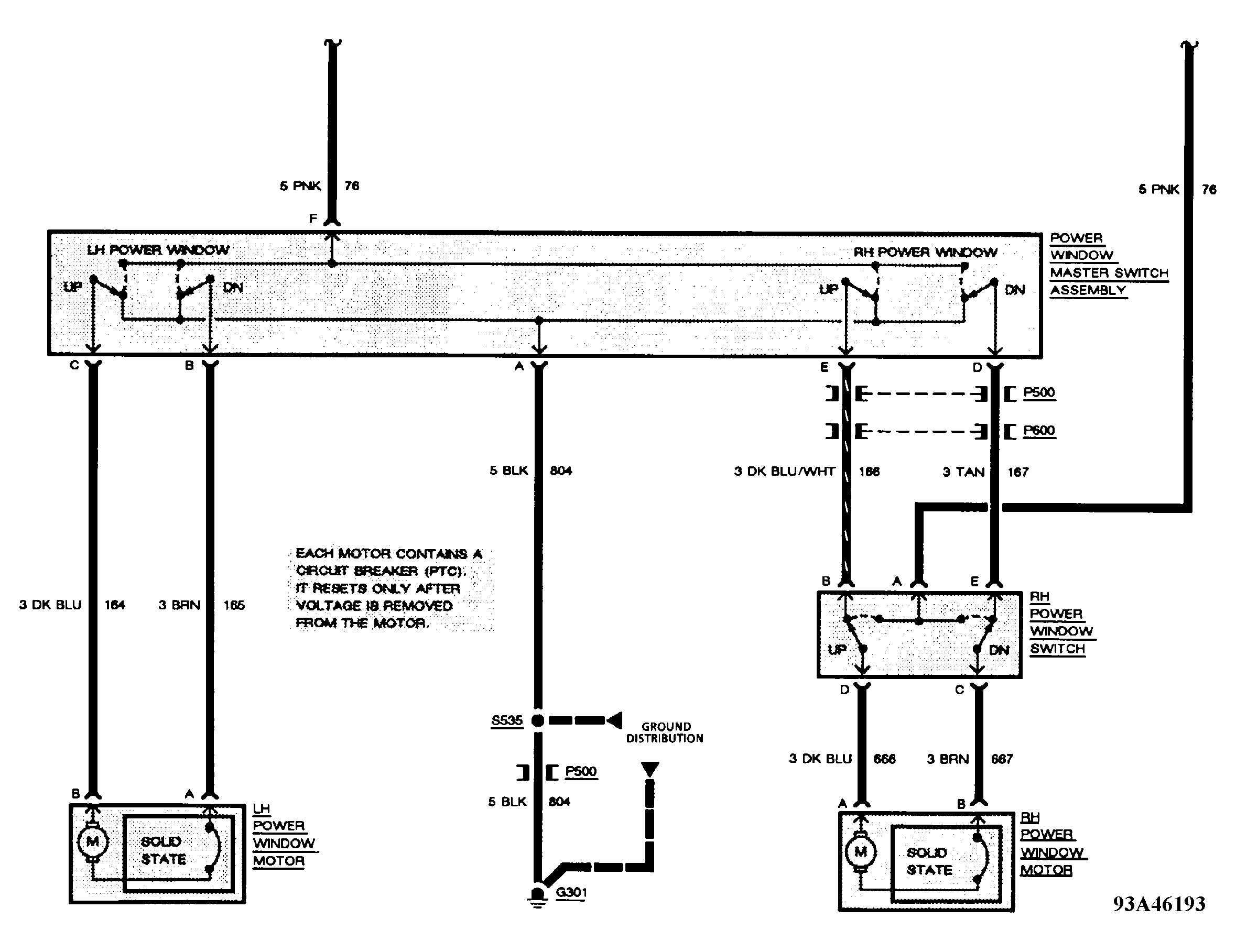

Fig 1: Power Windows Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Windows Wiring Diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
