Keyless Entry/Power Door Lock

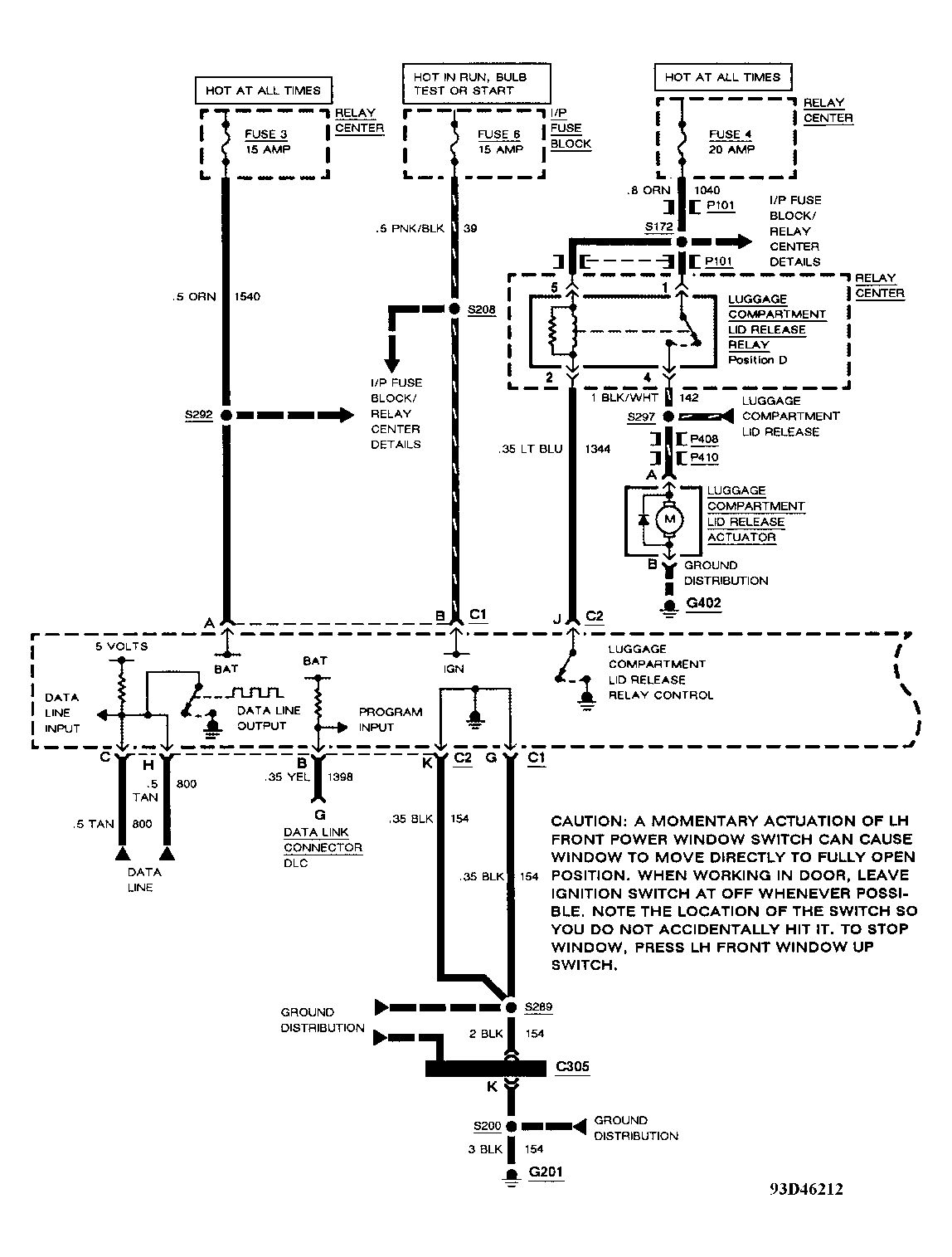

Fig 1: Wiring Diagram (LeSabre - 1 Of 4)

G93D46212

Courtesy of GENERAL MOTORS CORP.

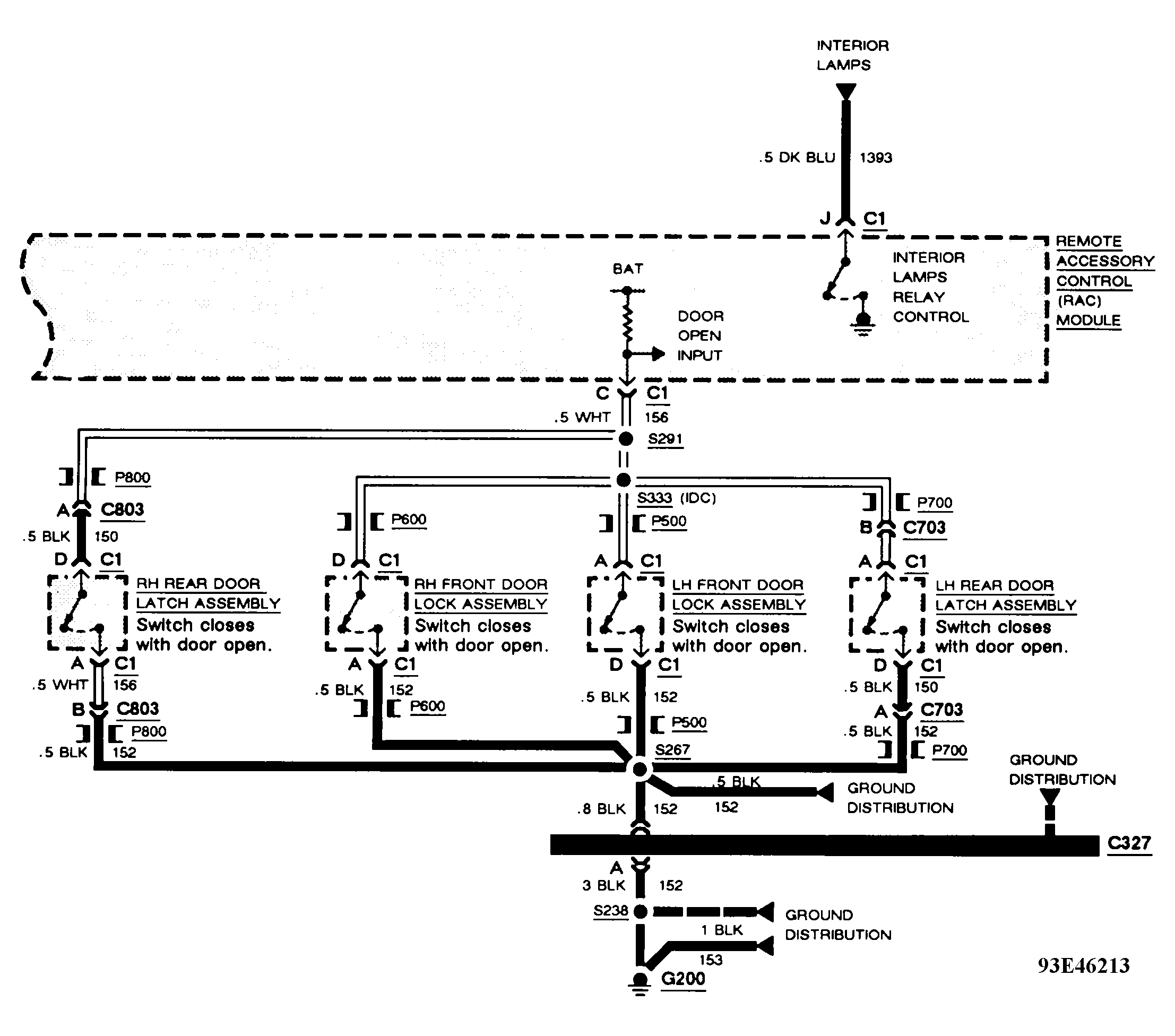

Fig 2: Wiring Diagram (LeSabre - 2 Of 4)

G93E46213

Courtesy of GENERAL MOTORS CORP.

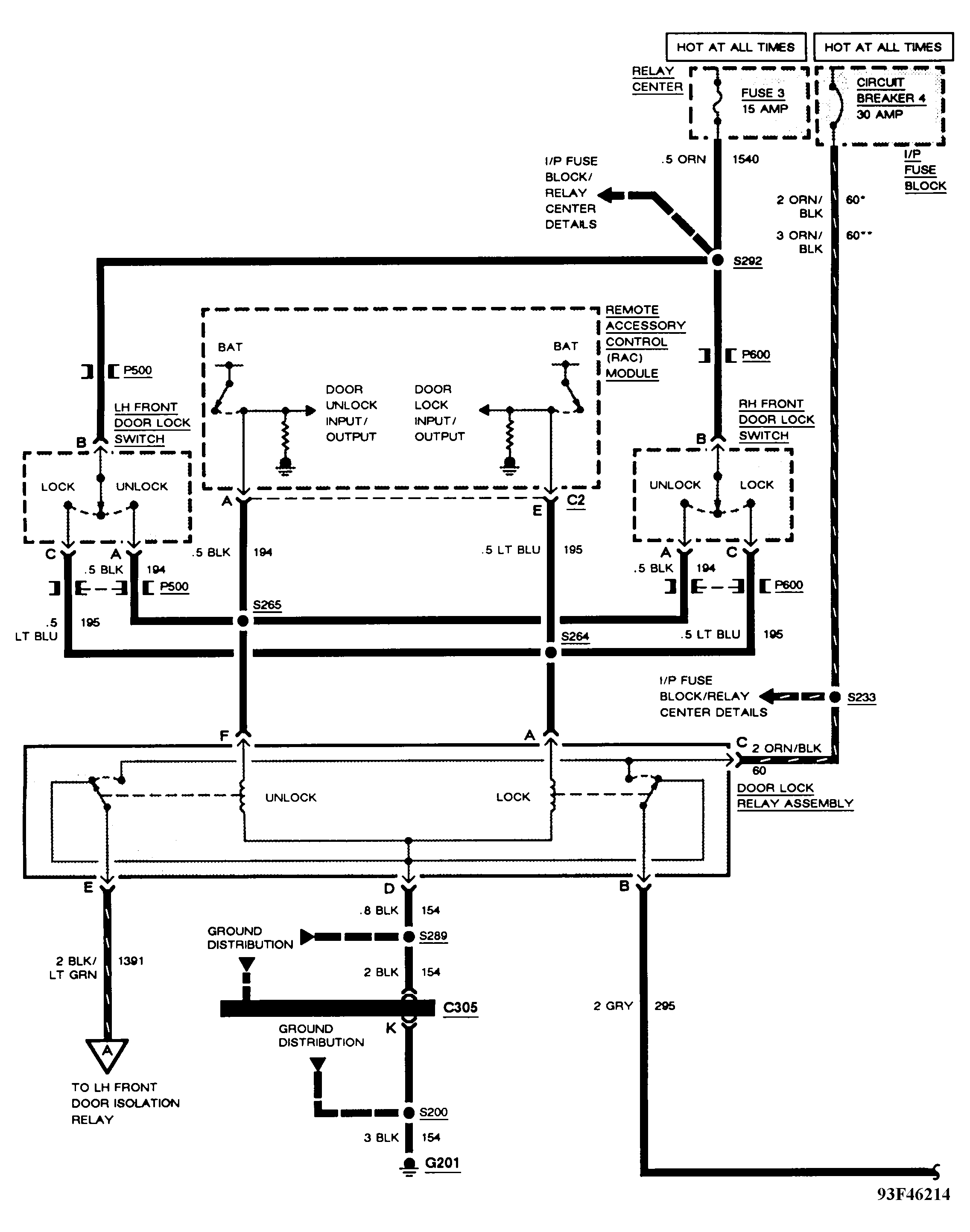

Fig 3: Wiring Diagram (LeSabre - 3 Of 4)

G93F46214

Courtesy of GENERAL MOTORS CORP.

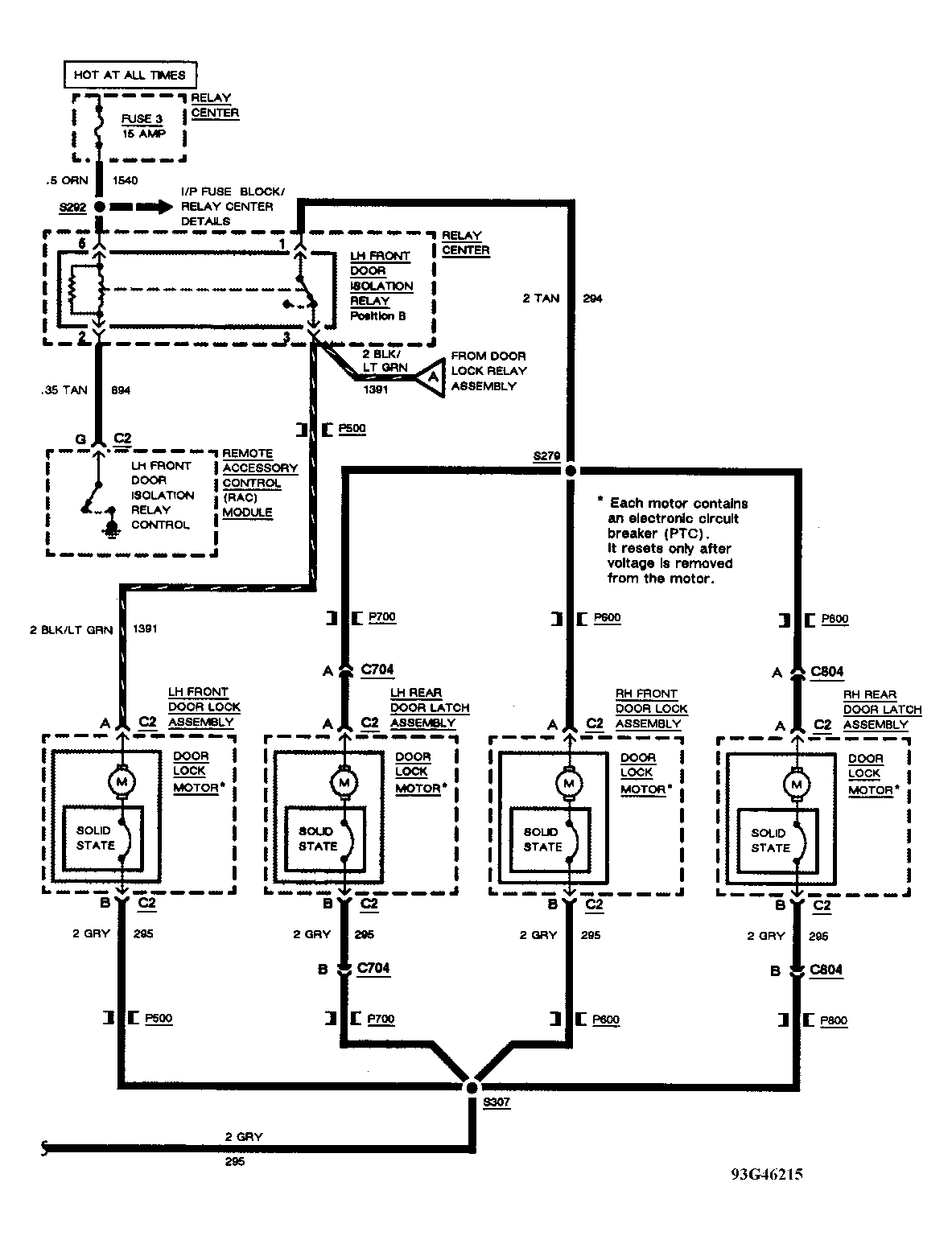

Fig 4: Wiring Diagram (LeSabre - 4 Of 4)

G93G46215

Courtesy of GENERAL MOTORS CORP.

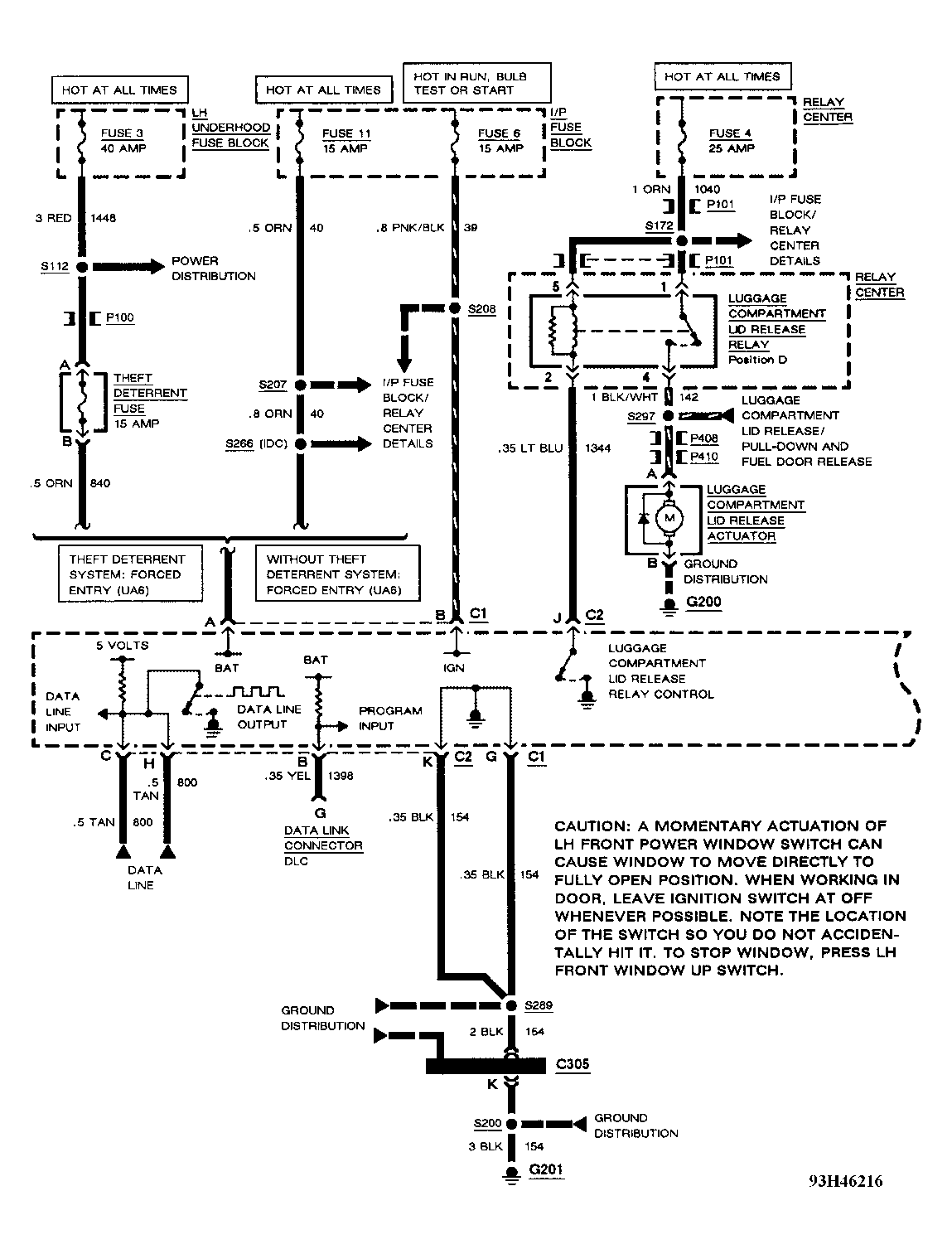

Fig 5: Wiring Diagram (Park Avenue - 1 Of 4)

G93H46216

Courtesy of GENERAL MOTORS CORP.

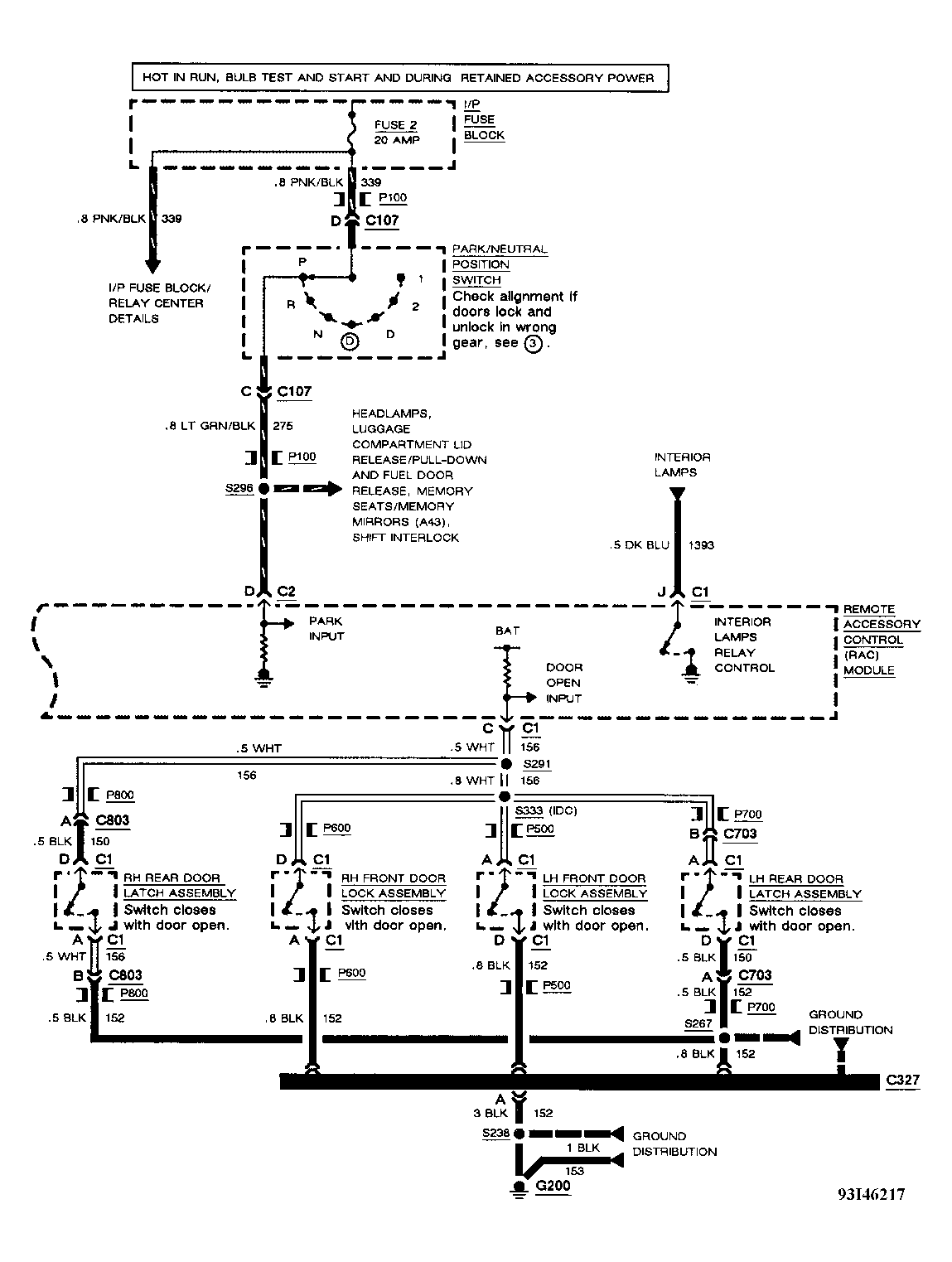

Fig 6: Wiring Diagram (Park Avenue - 2 Of 4)

G93I46217

Courtesy of GENERAL MOTORS CORP.

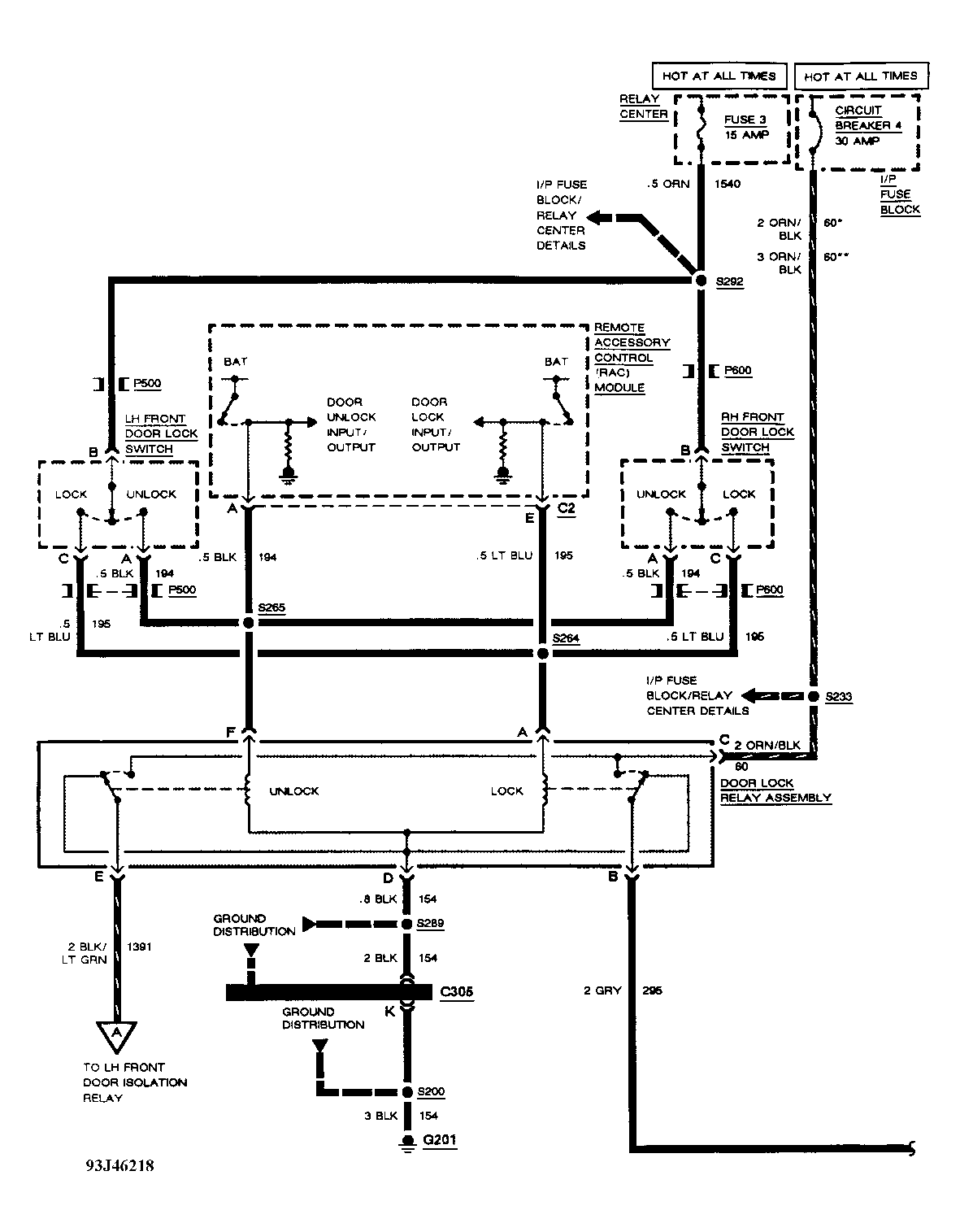

Fig 7: Wiring Diagram (Park Avenue - 3 Of 4)

G93J46218

Courtesy of GENERAL MOTORS CORP.

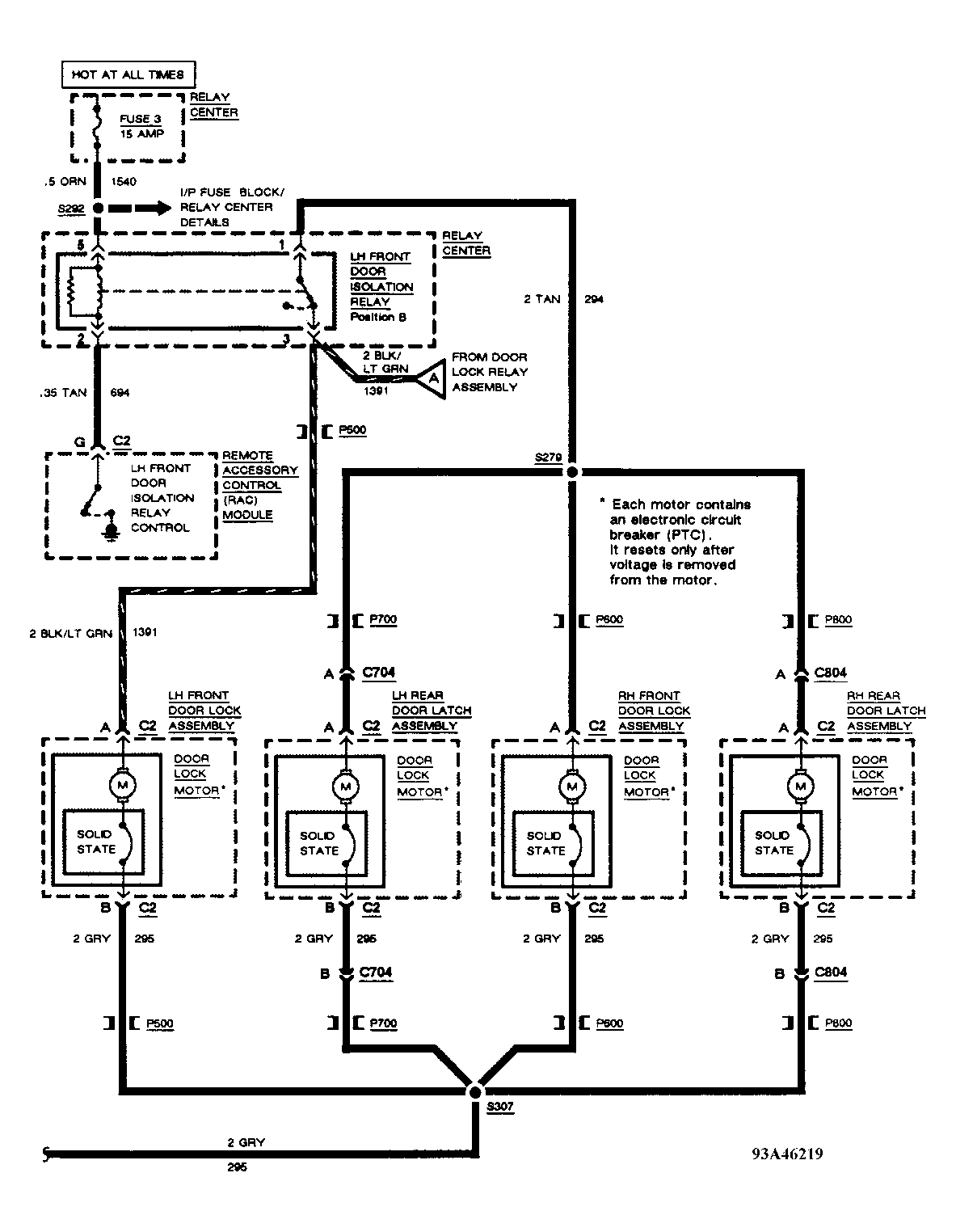

Fig 8: Wiring Diagram (Park Avenue - 4 Of 4)

G93A46219

Courtesy of GENERAL MOTORS CORP.
