Home >> Buick >> 1992 >> Skylark Base, 4D Sedan, 2.3 3 >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Power Window Control Module Test

Test C: Power Window Control Module Test

To perform test procedure, see Fig 1 .

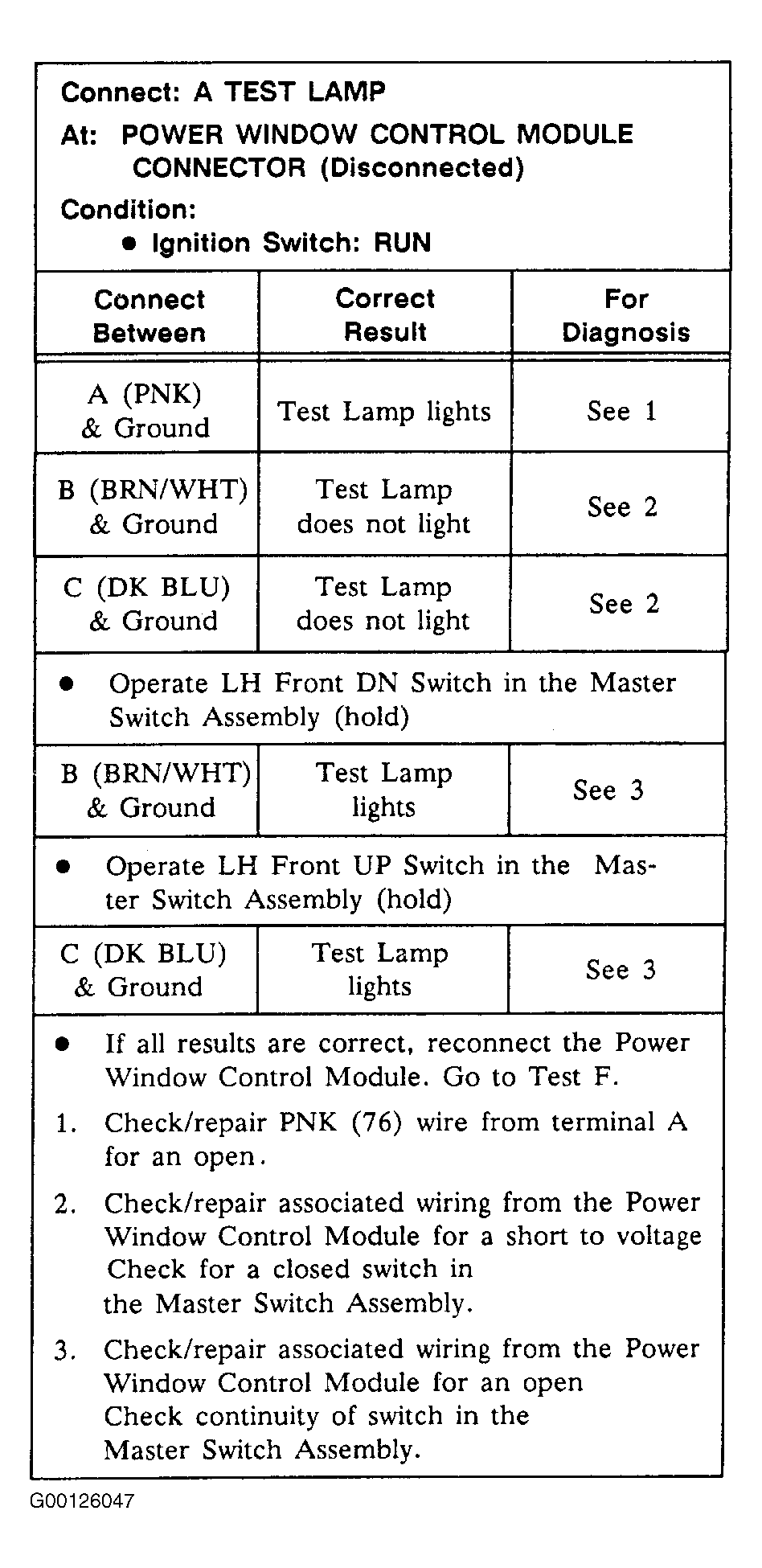

Fig 1: Power Window Control Module Test
G00126047Courtesy of GENERAL MOTORS CORP.
