Hydraulic Modulator: Installation

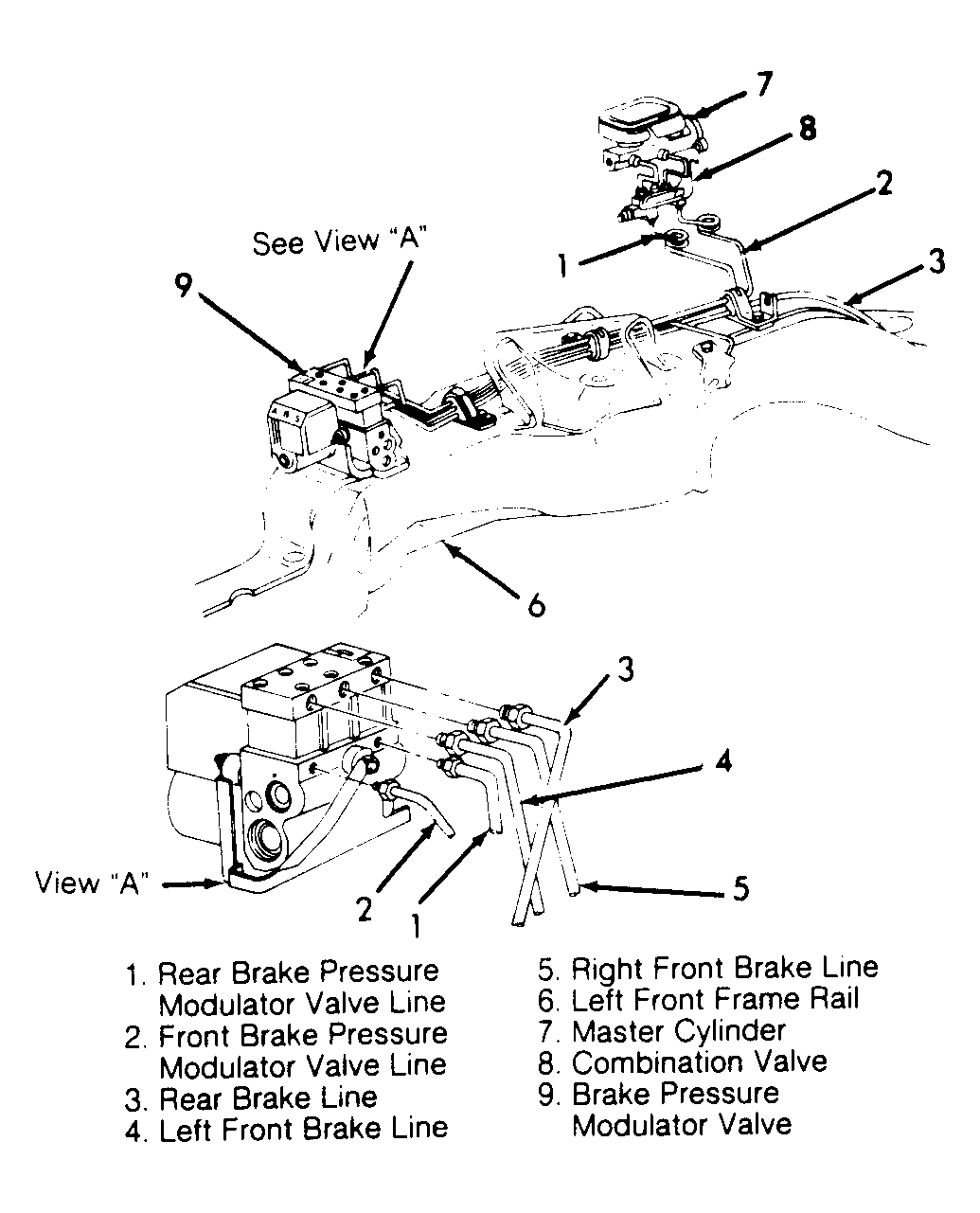

To install, reverse removal procedure. Ensure brake lines are installed in original location. See Figure. Tighten hydraulic modulator mounting nuts and brake lines to specification. See TORQUE SPECIFICATIONS table. Refill brake master cylinder, bleed brakes and check for leaks. See BLEEDING BRAKE SYSTEM.
