Test A: All Positions Do Not Operate

To perform this test, refer to illustration. See Fig 1 .

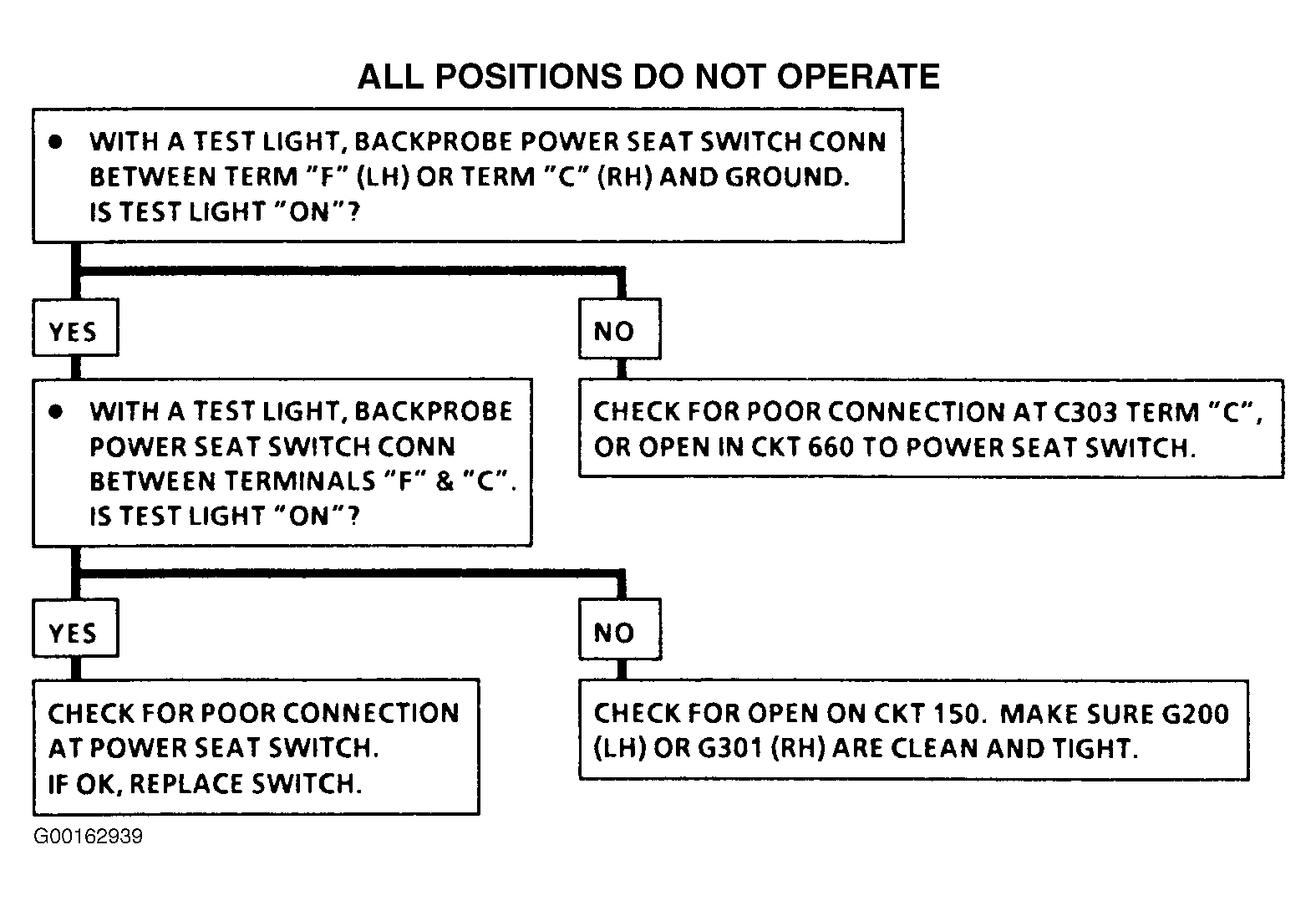

Fig 1: Test A: All Positions Do Not Operate

G00162939

Courtesy of GENERAL MOTORS CORP.
