Section 12 (Air Bag Restraint System)
>>
Identification - Connector
Identification - Connector
WARNING:
This page is about a different car, the 1991 Oldsmobile Custom Cruiser, 1991 Chevrolet Caprice, and 1991 Buick Roadmaster. However, it is still accessible from the selected car via links, so may be relevant.

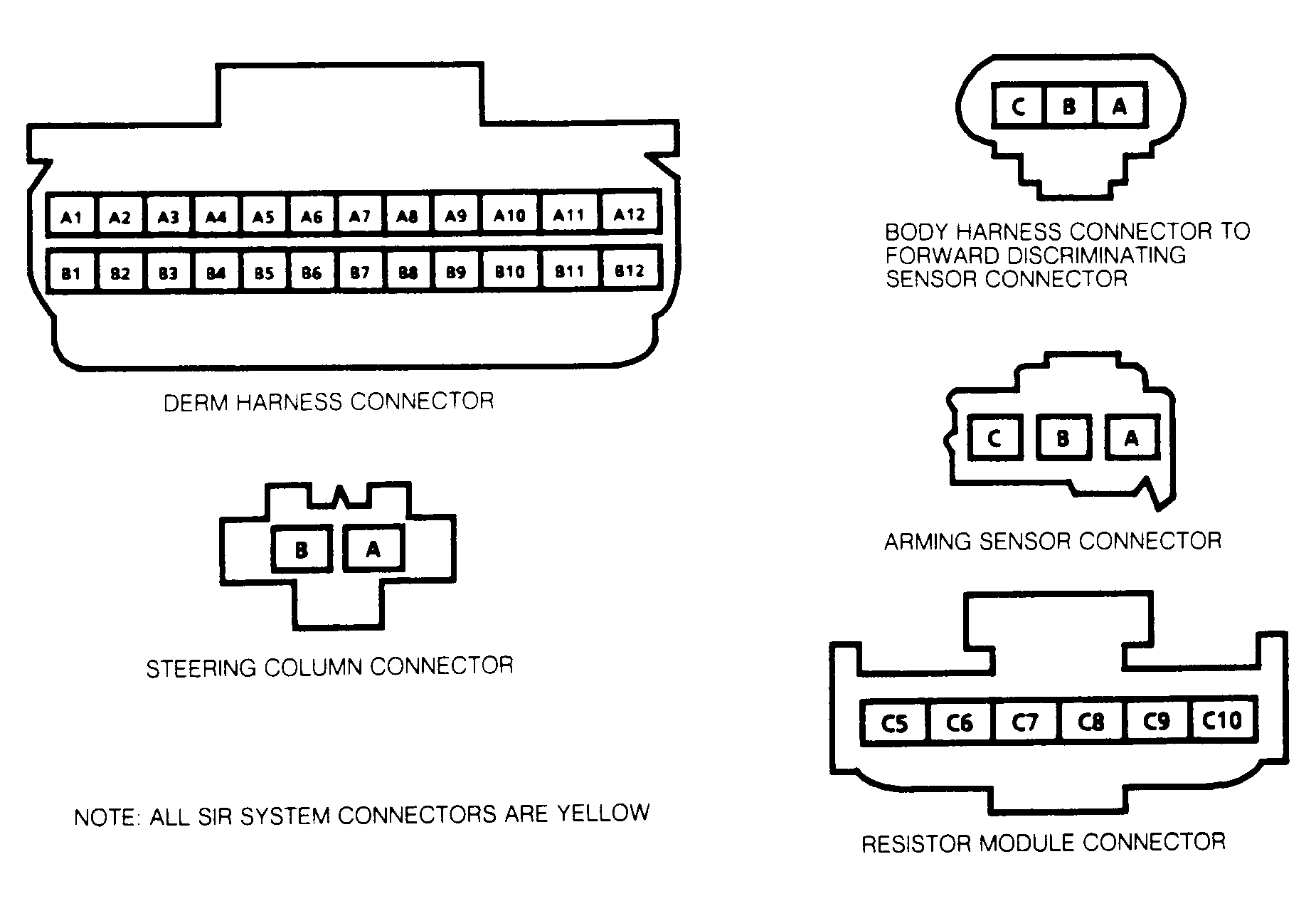

Fig 1: SIR Wiring Connectors Face Views
Courtesy of GENERAL MOTORS CORP.
