Power Lumbar Support Bladder: Installation

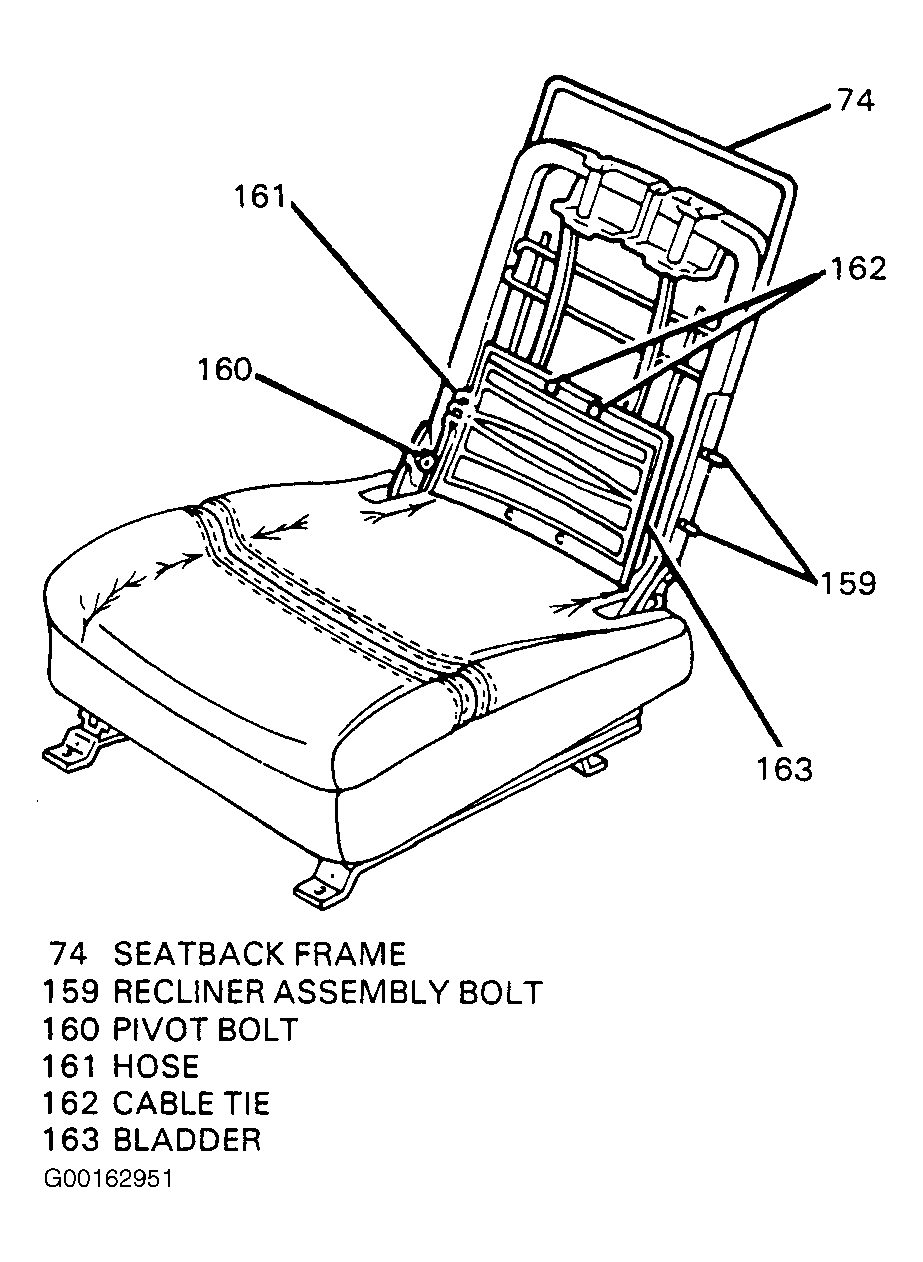

  1. Install the bladder (163). See Figure .
  2. Install the cable ties (162) to the seatback frame (74). See Figure .
  3. Connect the hoses (161), routing them properly so they do not bind. See Figure .
  4. Install the seatback cushion and cover. See POWER RECLINE SEAT COVERS & CUSHIONS  .
