Head Restraint: Installation

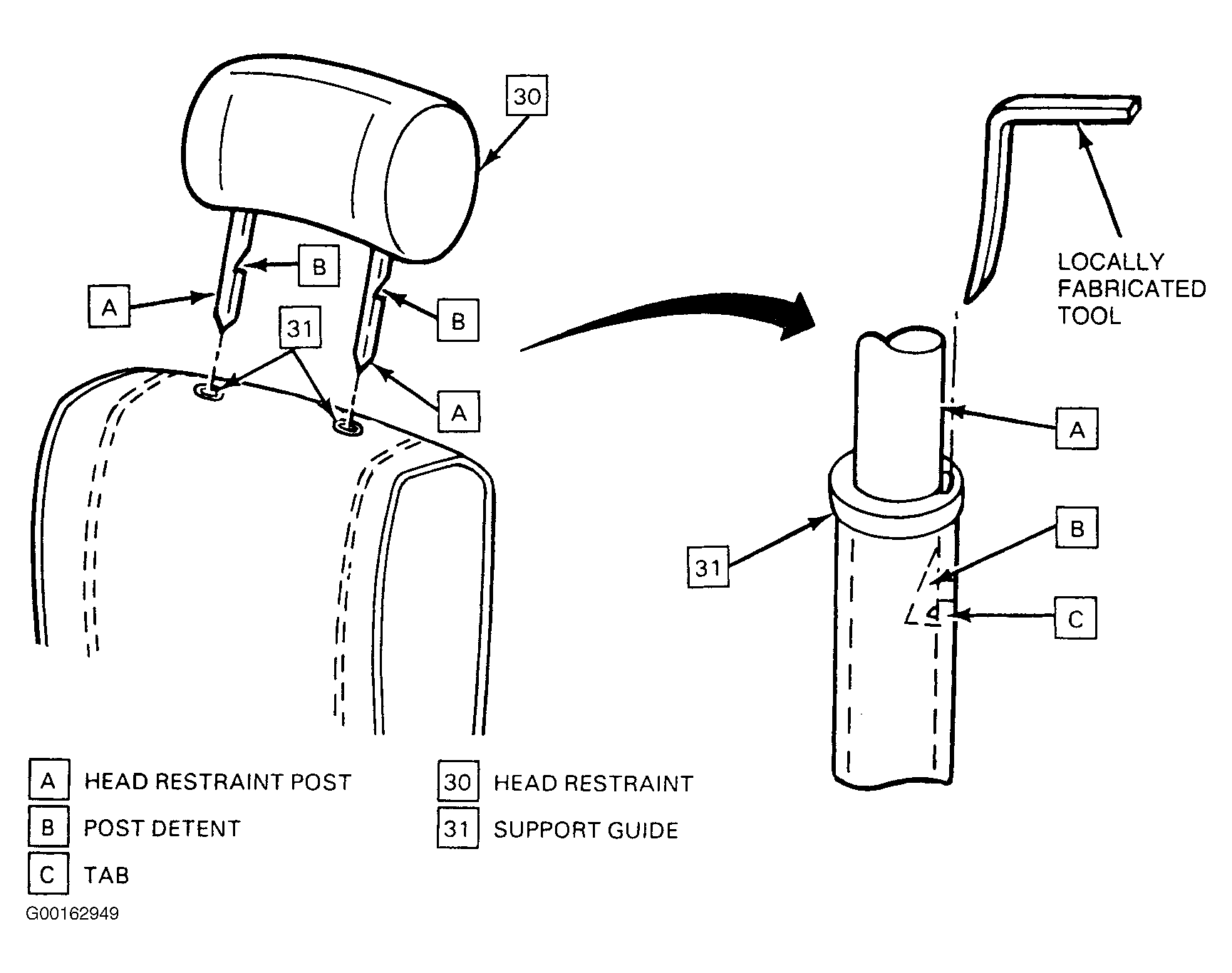

  1. Install posts into head restraint support guides (31). See Figure .
  2. Push head restraint (30) into full-down position. See Figure .
  3. Raise head restraint (30) to ensure head restraint (30) stops at posts detents. See Figure .
