Home >> Buick >> 1992 >> Roadmaster Base >> Repair and Diagnosis >> Body & Frame >> Power Seats >> Removal & Installation >> Center Armrest >> Installation

Center Armrest: Installation

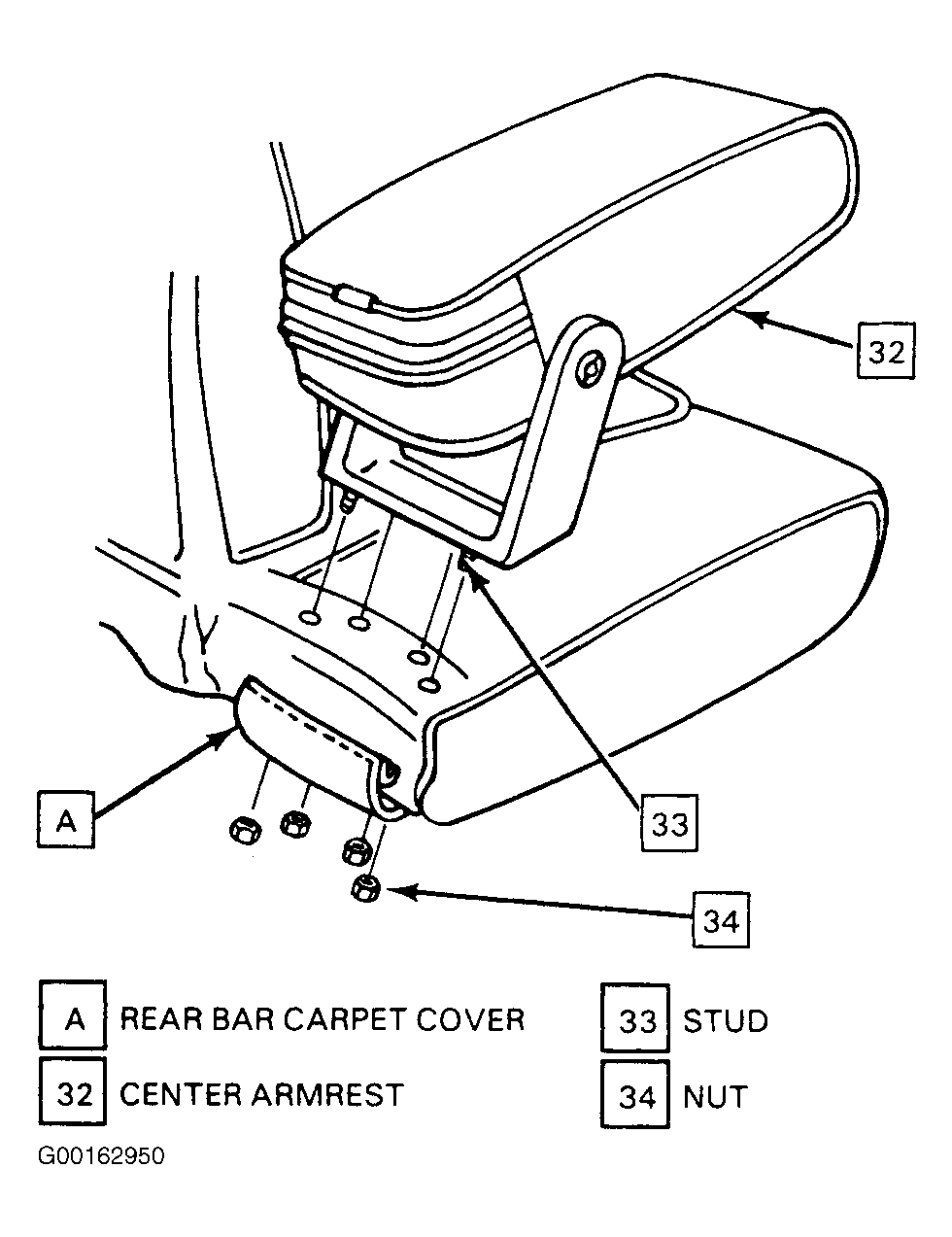

  1. Install the center armrest (32) and support to the front seat assembly. See Figure .
  2. Install the nuts (34) onto the studs (33), and tighten the nuts. See Figure . See TORQUE SPECIFICATIONS  .
  3. Install the rear bar carpet cover engaging J-channel retainer to frame. See Figure .
