Test E: Lock Function Inoperative (Unlock Function Operative) From One Door Lock Switch

For test procedure, refer to illustration. See Fig 1 .

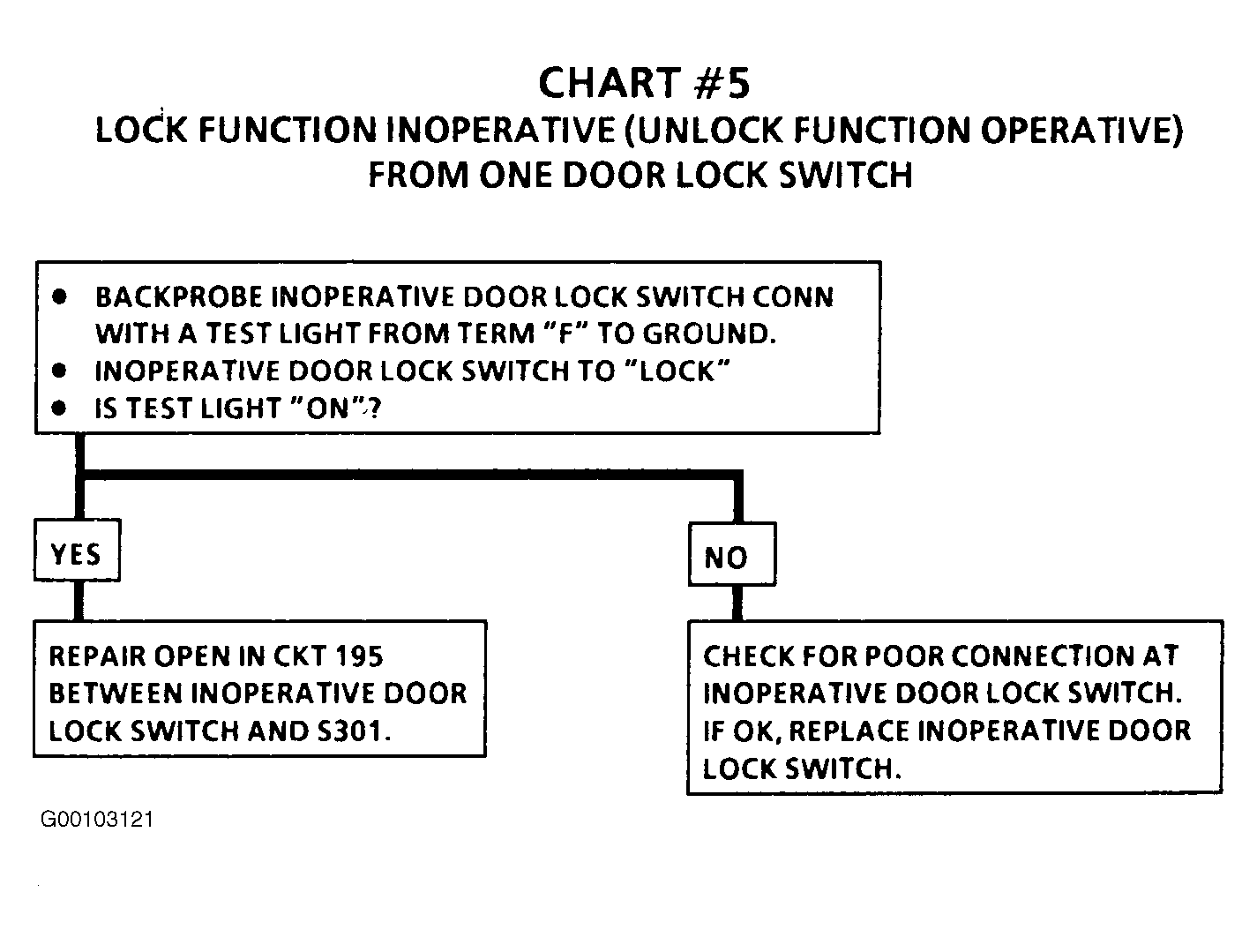

Fig 1: Test E: Lock Function Inoperative (Unlock Function Operative) From One Door Lock Switch

Courtesy of GENERAL MOTORS CORP.
