Window Regulator: Installation

  1. Install regulator to door inner panel.
  2. Connect wire connector.
  3. Install rivets using 1/4" x 5/8" peel type rivets.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install sound absorber pad. See SOUND ABSORBER PAD  .
  6. Install trim panel. See TRIM PANEL  .

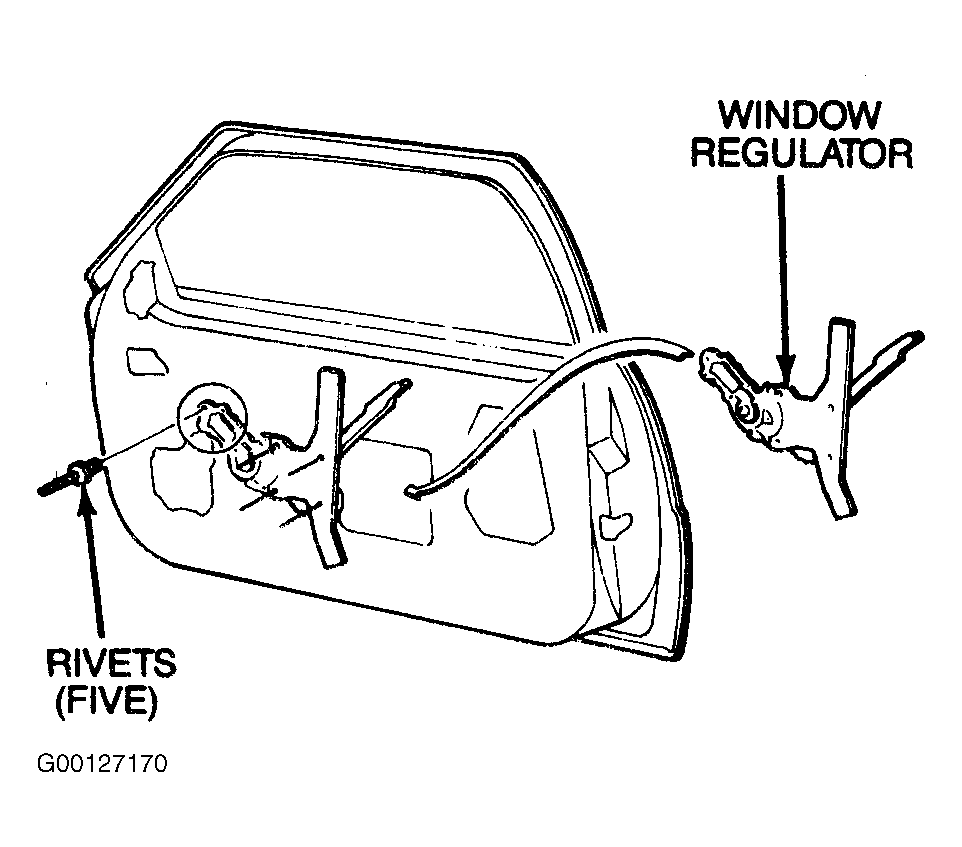

Fig 1: Removing Window Regulator
G00127170Courtesy of GENERAL MOTORS CORP.
