Water Deflector: Installation

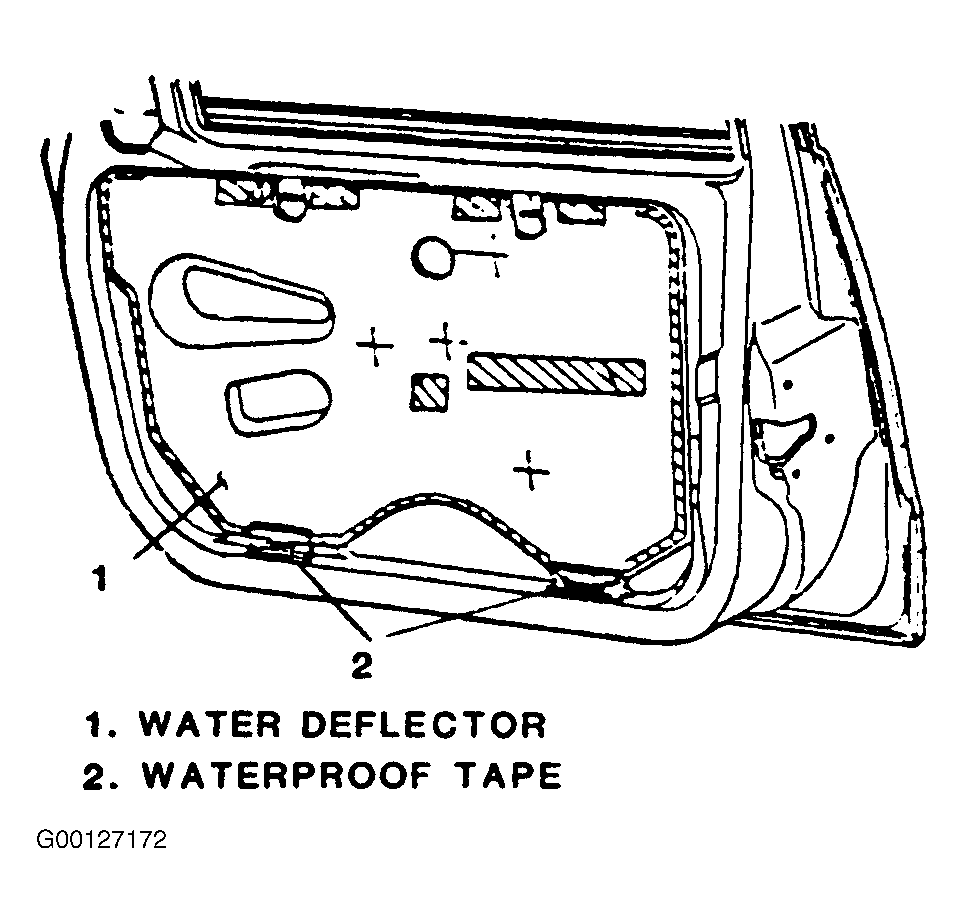

- Install water deflector (1) to door inner panel, making sure that the tabs on bottom of deflector are in slots in bottom of door inner panel. See Fig 1
.
- Apply waterproof tape (2) over slots in bottom of door inner panel where water deflector tabs were installed. See Fig 1
- Install any support brackets moved.
- Install waterproof tape to any damaged area of the deflector.
- Install door speaker assemblies, if present.
- Install sound absorber. See SOUND ABSORBER PAD
.
- Install door trim panel retainer and trim panel. See TRIM PANEL
.
Courtesy of GENERAL MOTORS CORP.
