Trim Panel: Installation

  1. Position trim panel close and connect electrical connectors. See Fig 2 .
  2. Insert hooks at top.
  3. Align fasteners with holes in door at locations shown and push in on trim panel.
  4. Install screws (3). See Fig 1 .
  5. Install power door lock switch.
  6. Install power seat switch plate. See POWER SEAT SWITCH PLATE  .

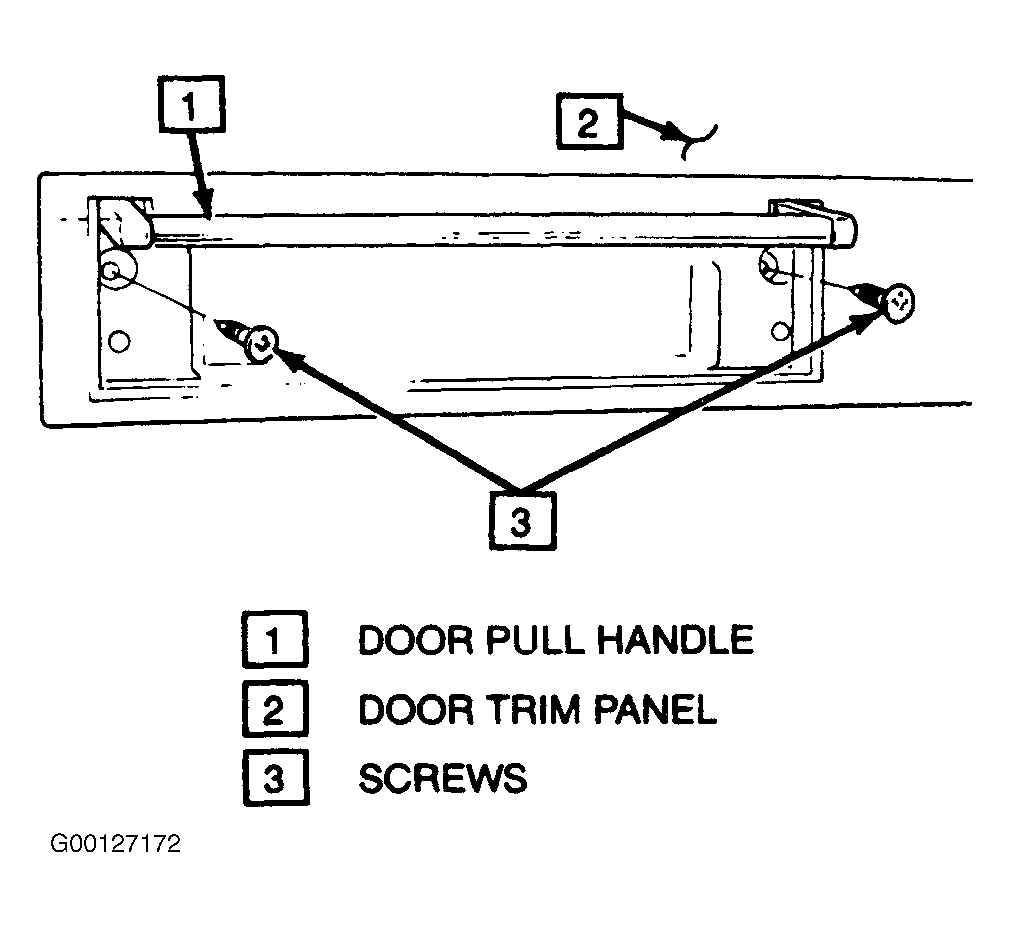

Fig 1: Removing Pull Handle Screws
G00127168Courtesy of GENERAL MOTORS CORP.

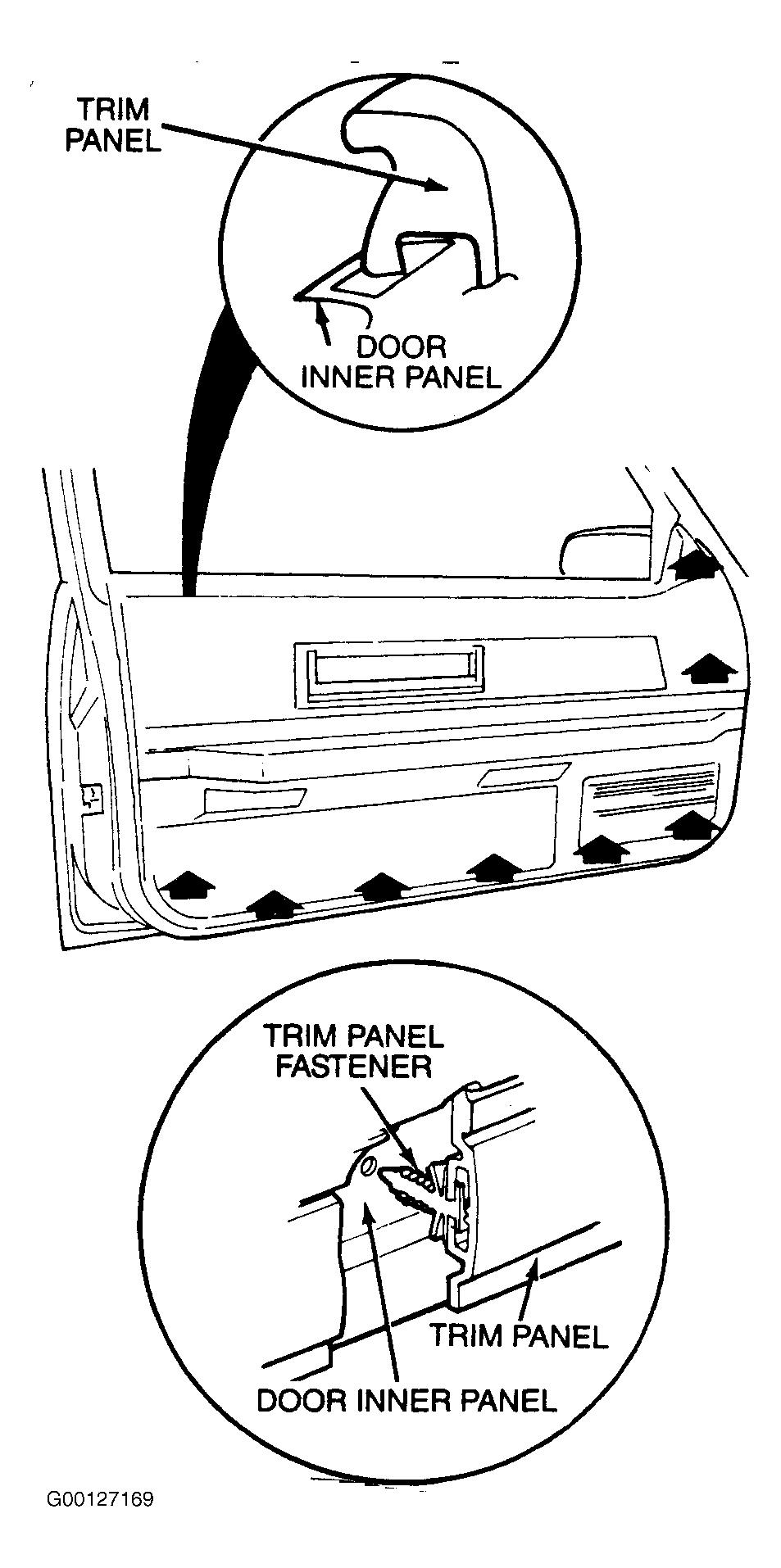

Fig 2: Removing Door Trim Panel
G00127169Courtesy of GENERAL MOTORS CORP.
