Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Ground G100	Right front corner of engine compartment, behind headlight.
Ground G103	Front of right hand cylinder head, below generator.
Ground 300	Behind far right side of dash, above kick panel.
Ground G310	Behind rear seat backrest, below shelf support on right side.

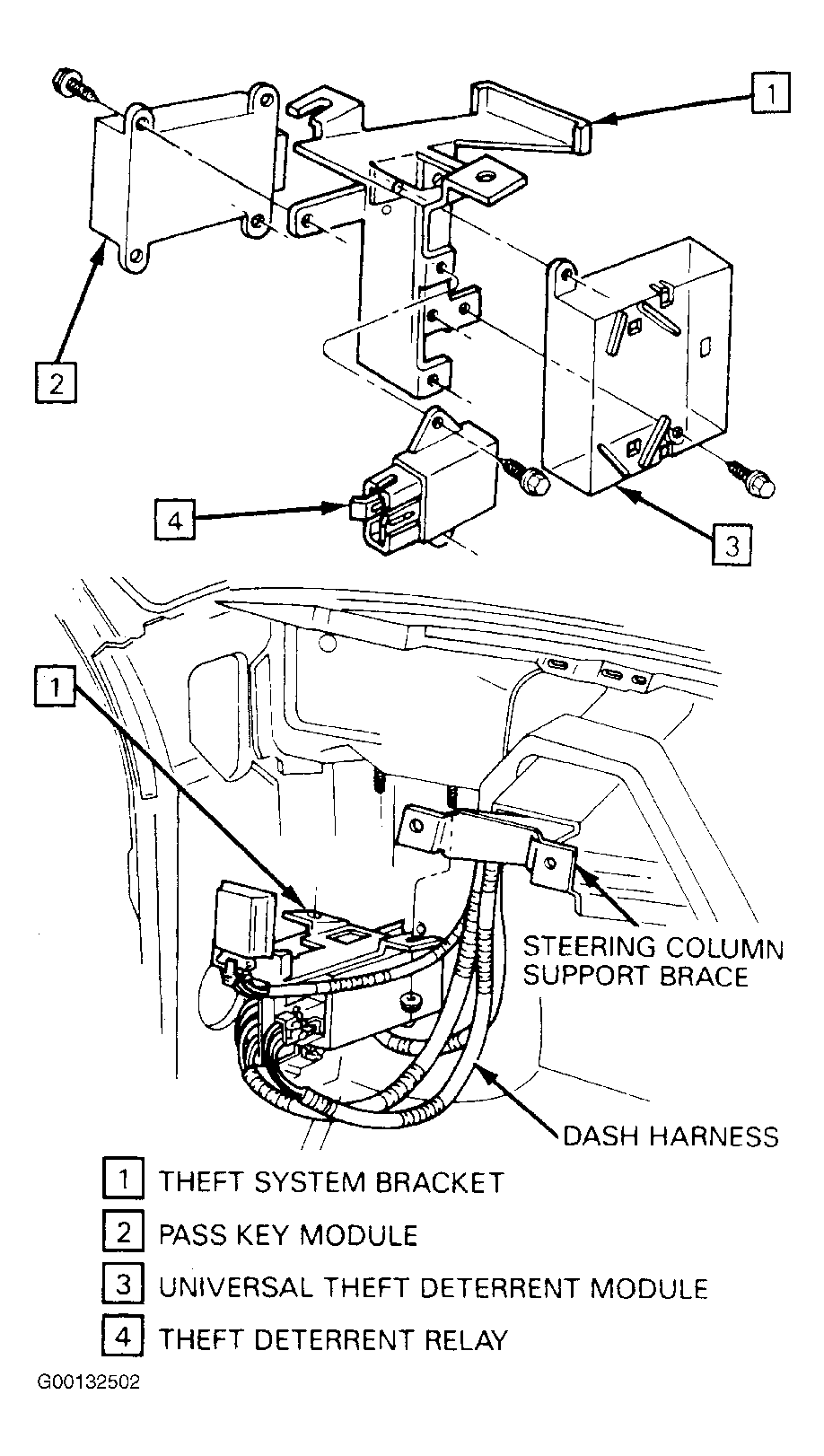

Fig 1: Locating PASSKey(R) System Components

Courtesy of GENERAL MOTORS CORP.

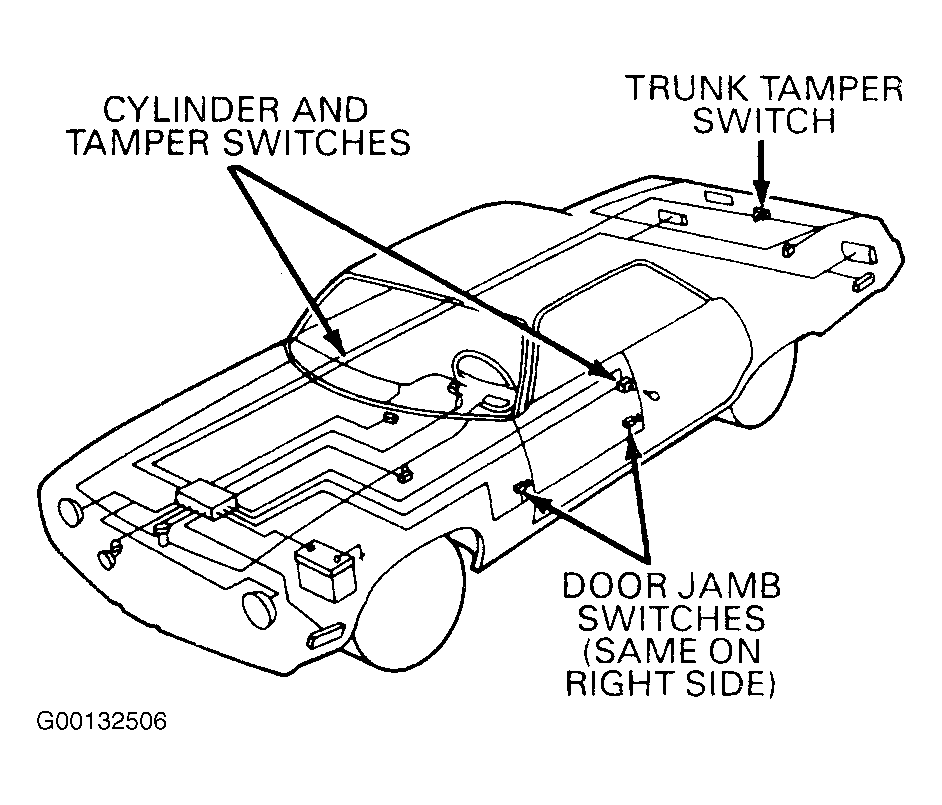

Fig 2: Locating Universal Theft Deterrent System Components

Courtesy of GENERAL MOTORS CORP.
