Home >> Buick >> 1992 >> Park Avenue Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Component Locations

Component Locations

For component locations, refer to illustration. See Fig 1 .

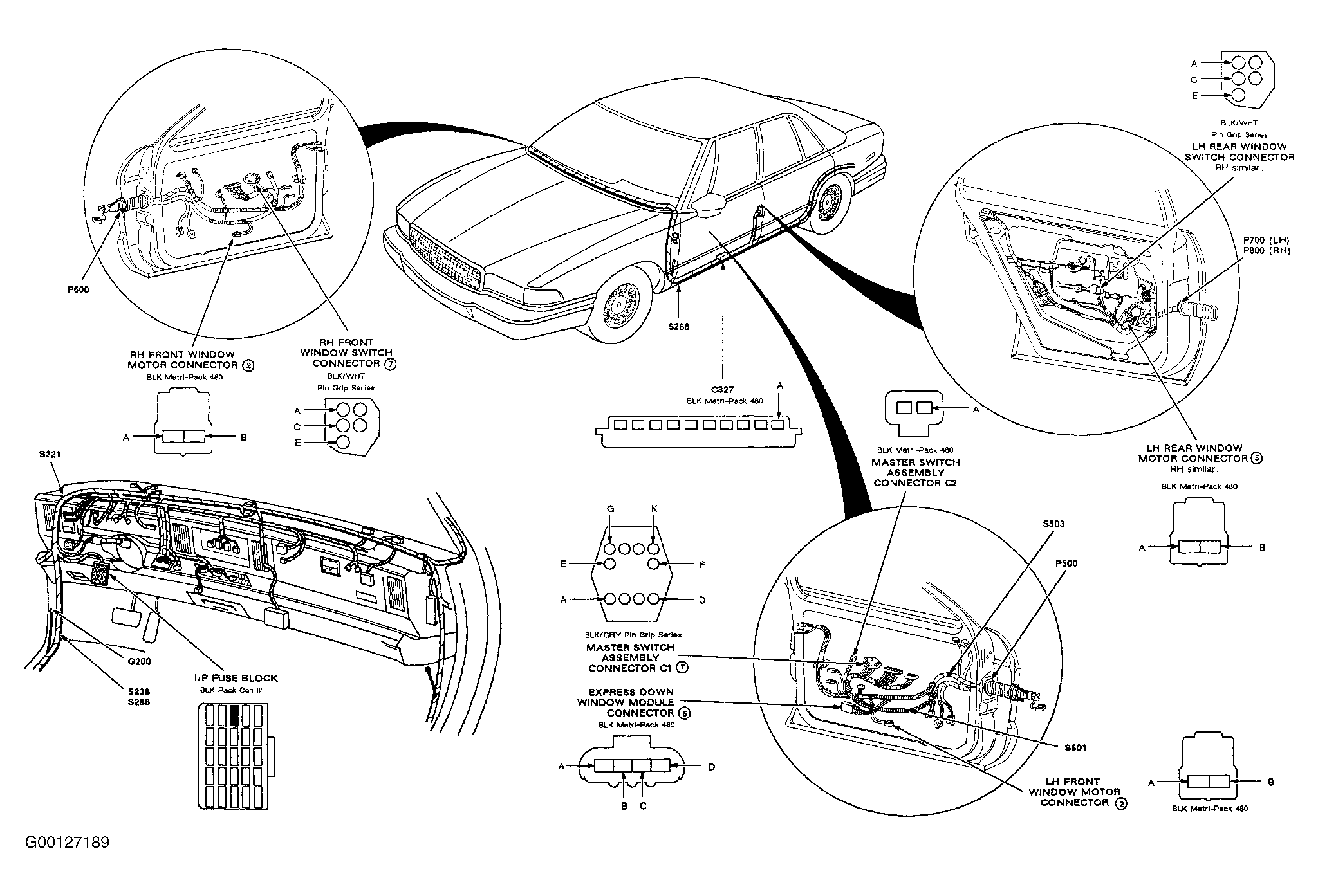

Fig 1: Power Window Component Locations
G00127189Courtesy of GENERAL MOTORS CORP.
