Instrument Panel Cluster (IPC) Connector Pin Test

Remove IPC. See AIR BAG PRECAUTIONS . See, under REMOVAL & INSTALLATION, INSTRUMENT PANEL CLUSTER (IPC) . See Fig 1 -13 for voltage and resistance specifications. Make all measurements with ignition switch in RUN position (except when measuring resistance).
Make all measurements to ground (with negative battery disconnected), unless a specific terminal is given. See appropriate test under TESTING. If voltage or resistance readings at terminals being tested are correct, and particular component using those terminals does not operate, check wires, bulbs and printed circuit. If wiring, bulbs and printed circuit are okay, replace IPC. If correct voltage or resistance is NOT found at a terminal, check circuit for malfunction.

NOTE: Figures 1 - 13 are Courtesy of General Motors Corp.

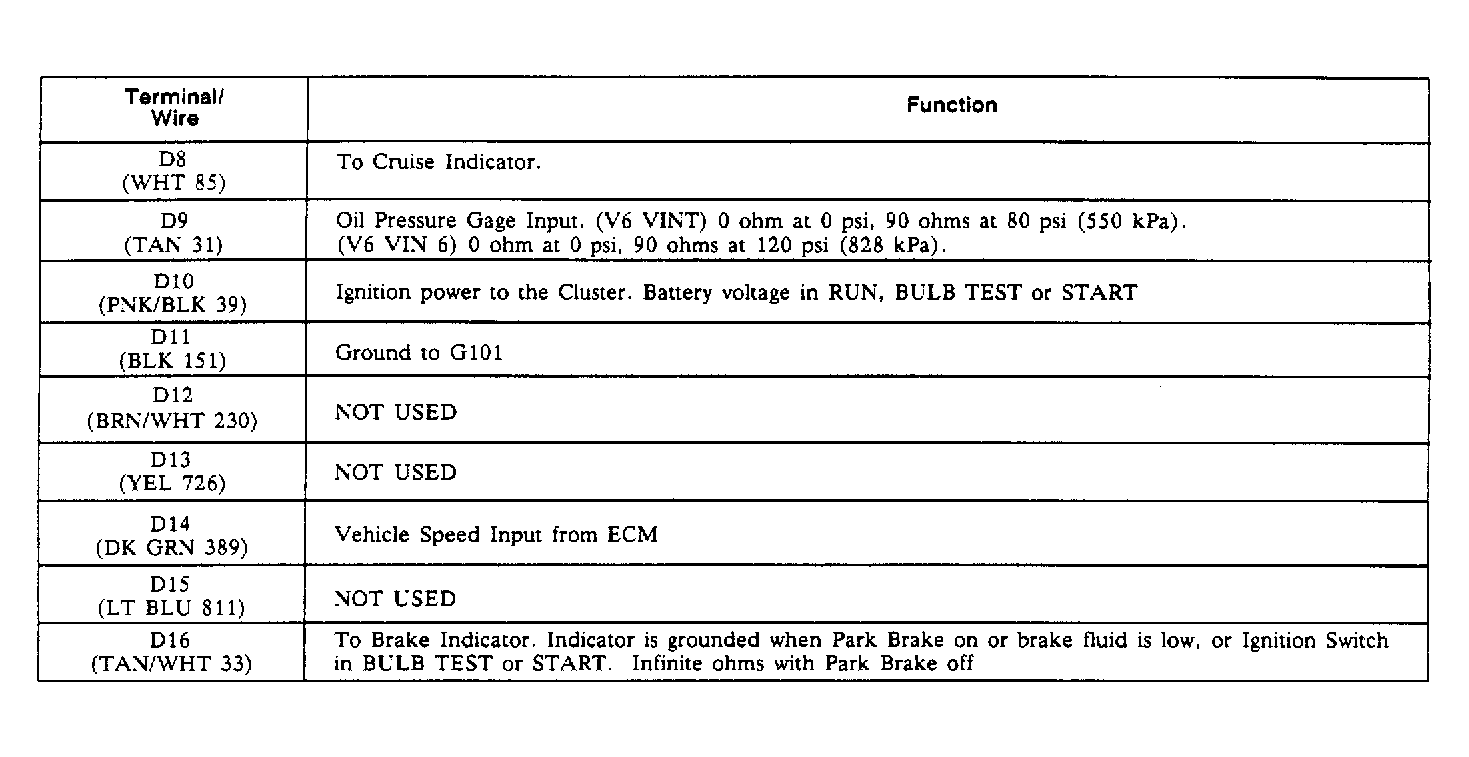

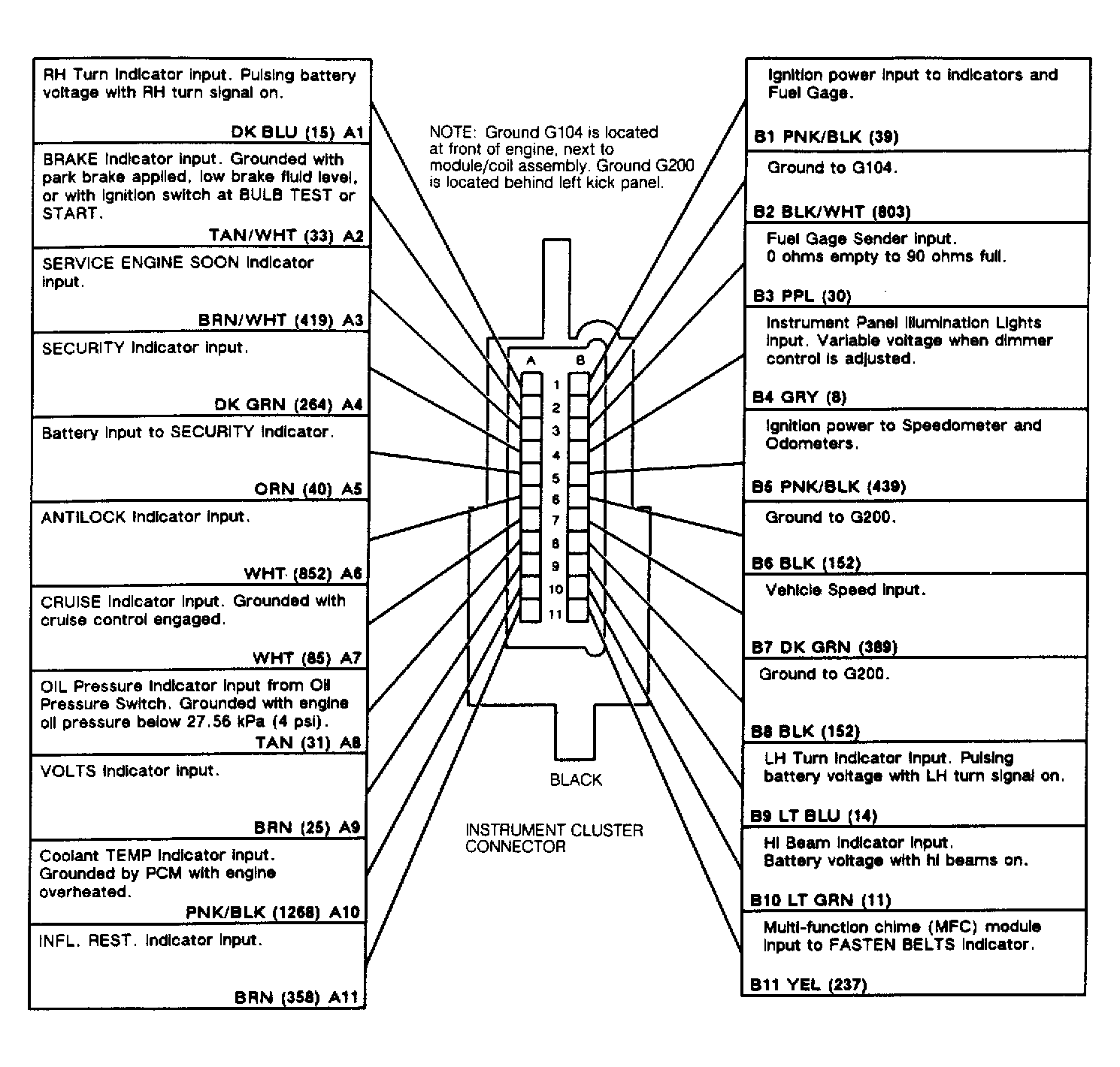

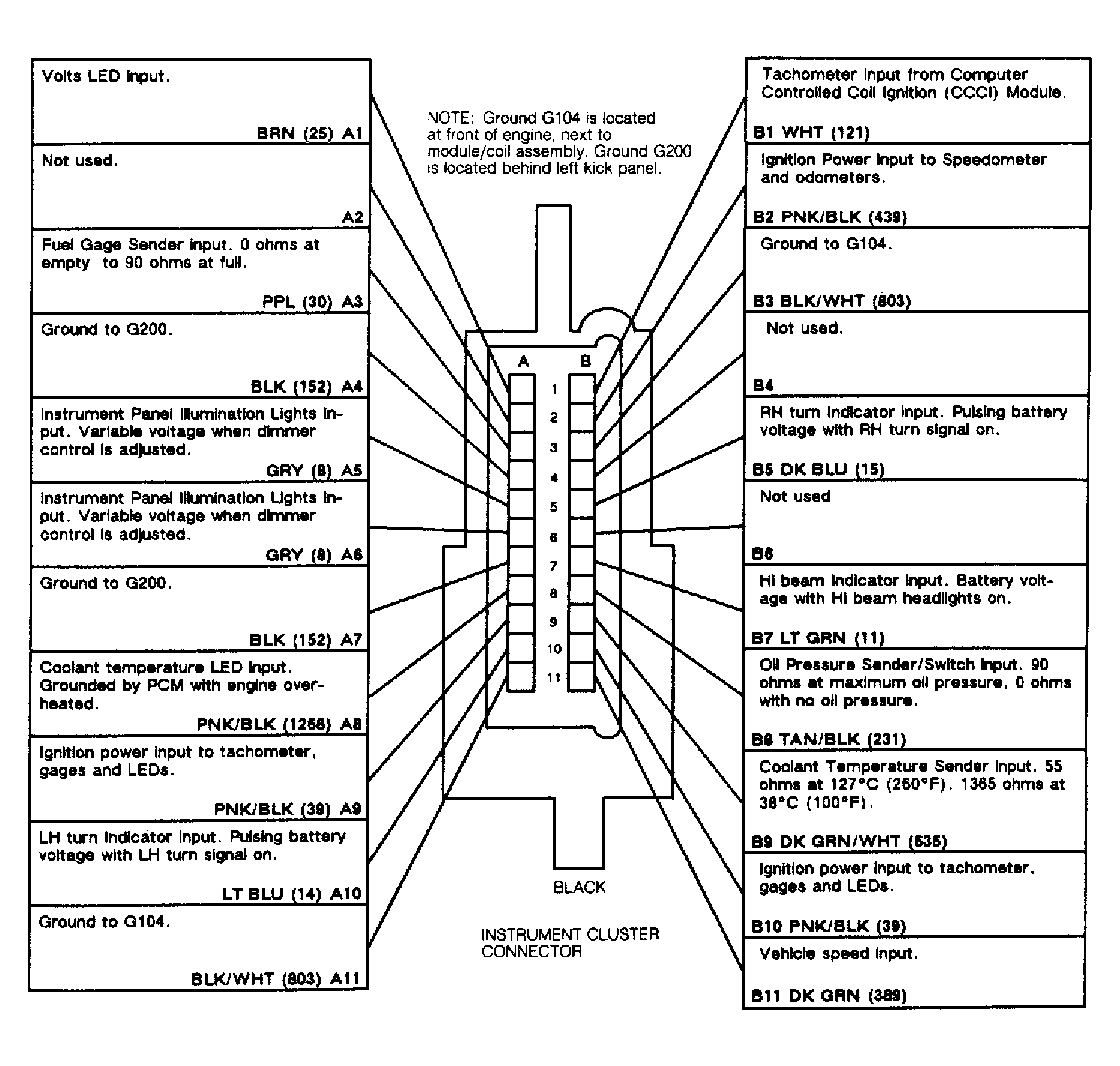

Fig 1: Testing Instrument Panel Cluster (IPC) Connector C1 Pins (Century - Gauge Cluster)

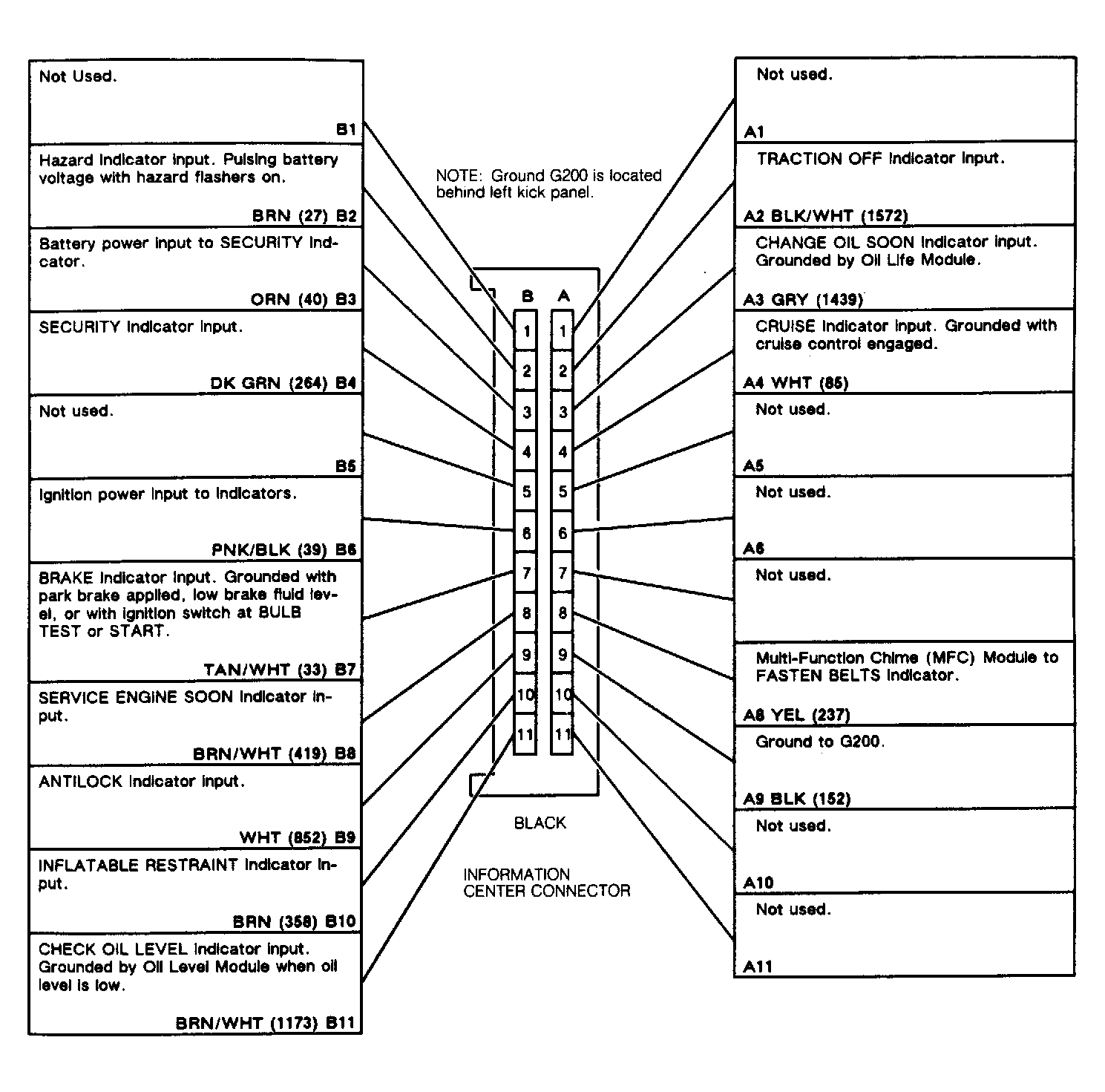

Fig 2: Testing Instrument Panel Cluster (IPC) Connector C1 Pins (Century - Indicator Cluster)

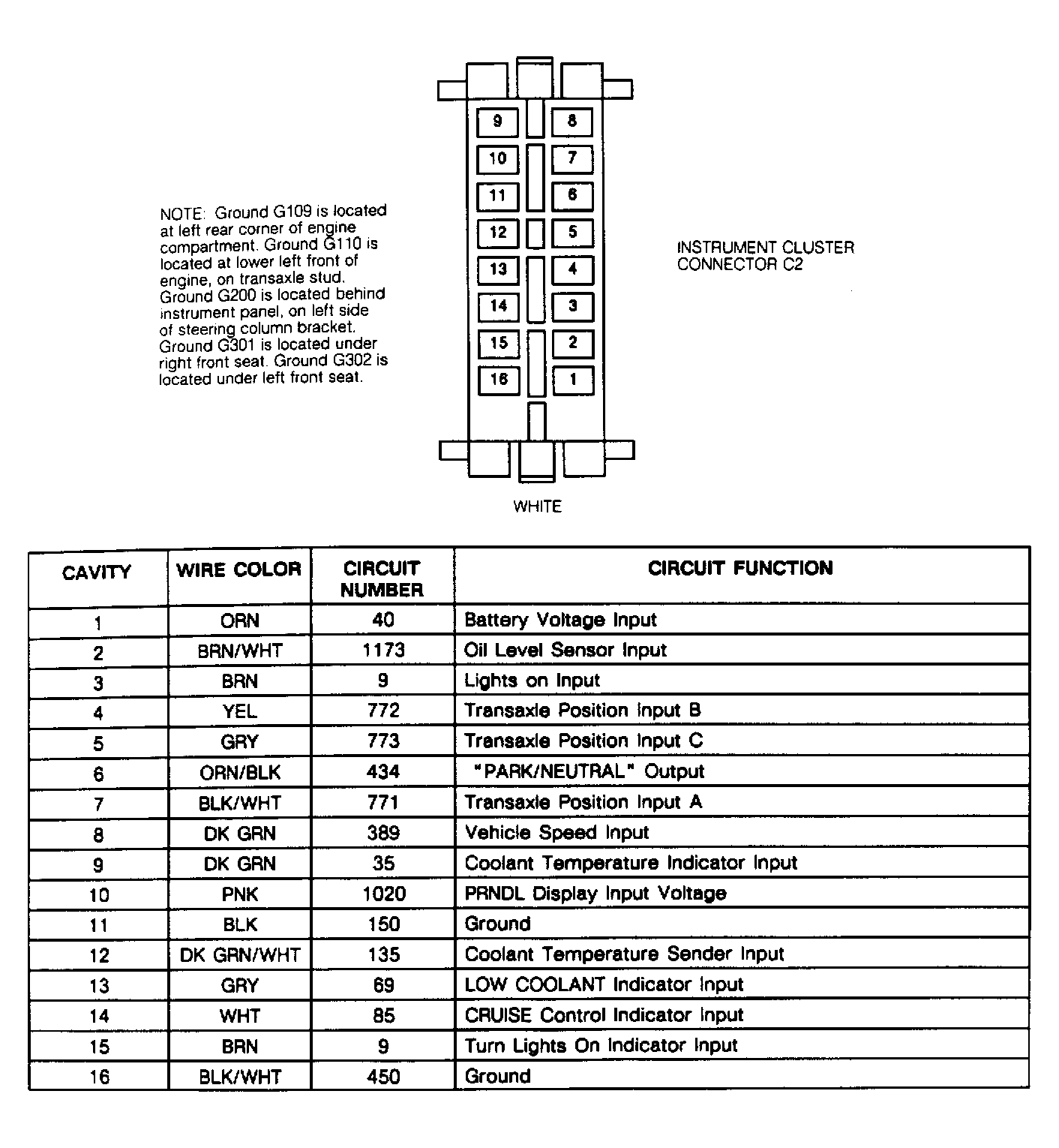

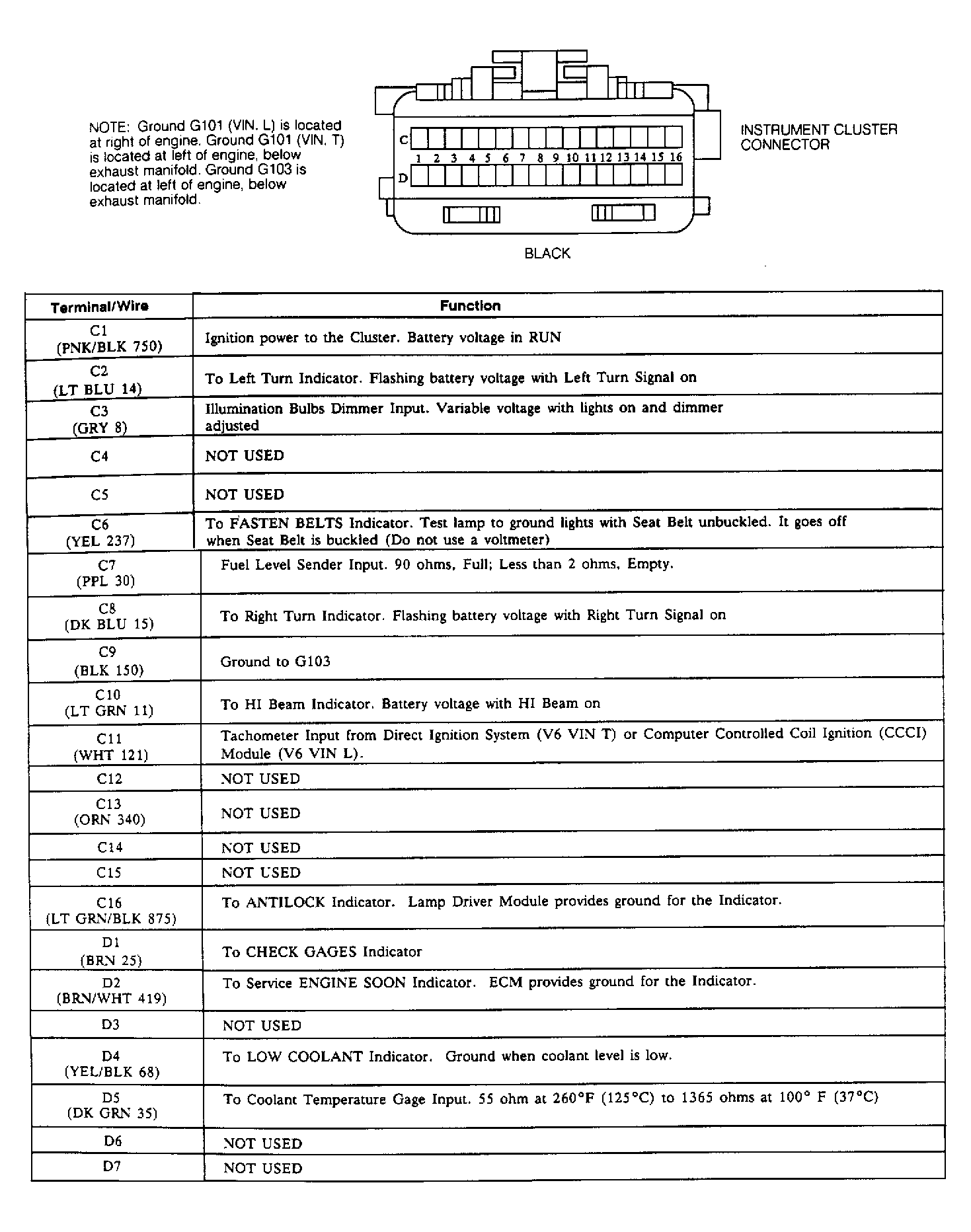

Fig 3: Testing Instrument Panel Cluster (IPC) Connector C2 Pins (Century - Gauge & Indicator Cluster)

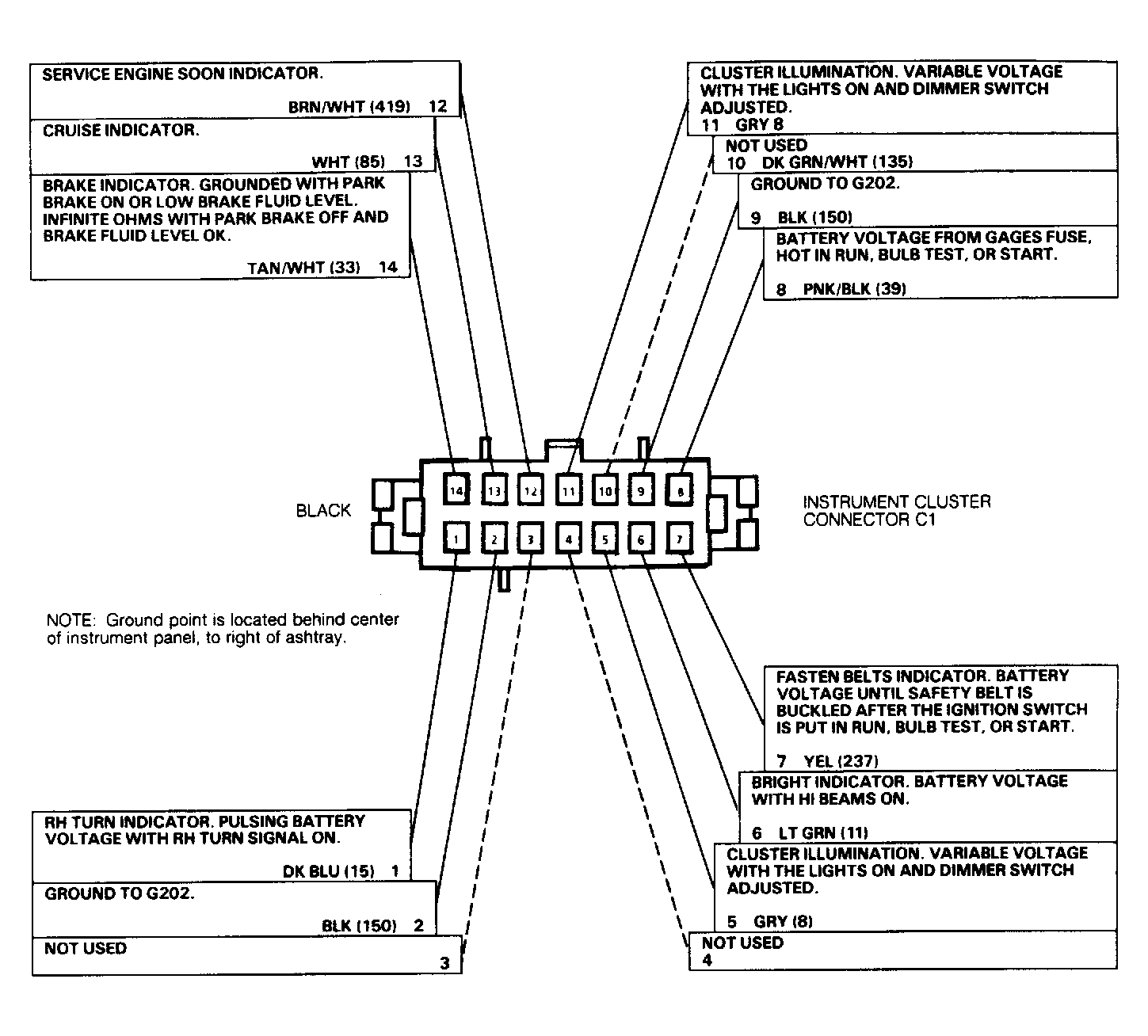

Fig 4: Testing Instrument Panel Cluster (IPC) Connector Pins (LeSabre & Park Avenue - Gauge Cluster)

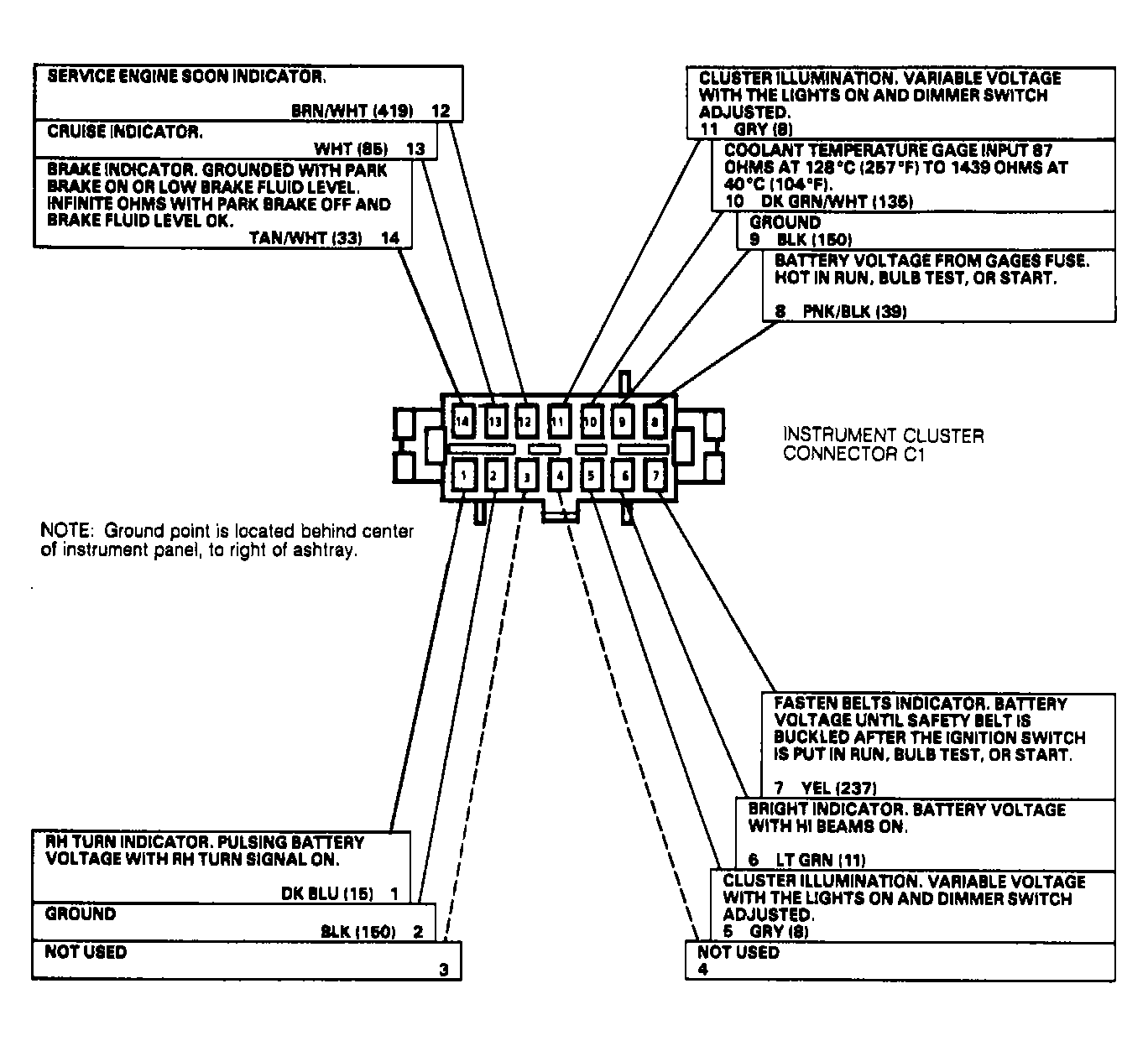

Fig 5: Testing Instrument Panel Cluster (IPC) Connector Pins (LeSabre & Park Avenue - Indicator Cluster)

Fig 6: Testing Instrument Panel Cluster (IPC) Connector Pins (LeSabre - Information Center)

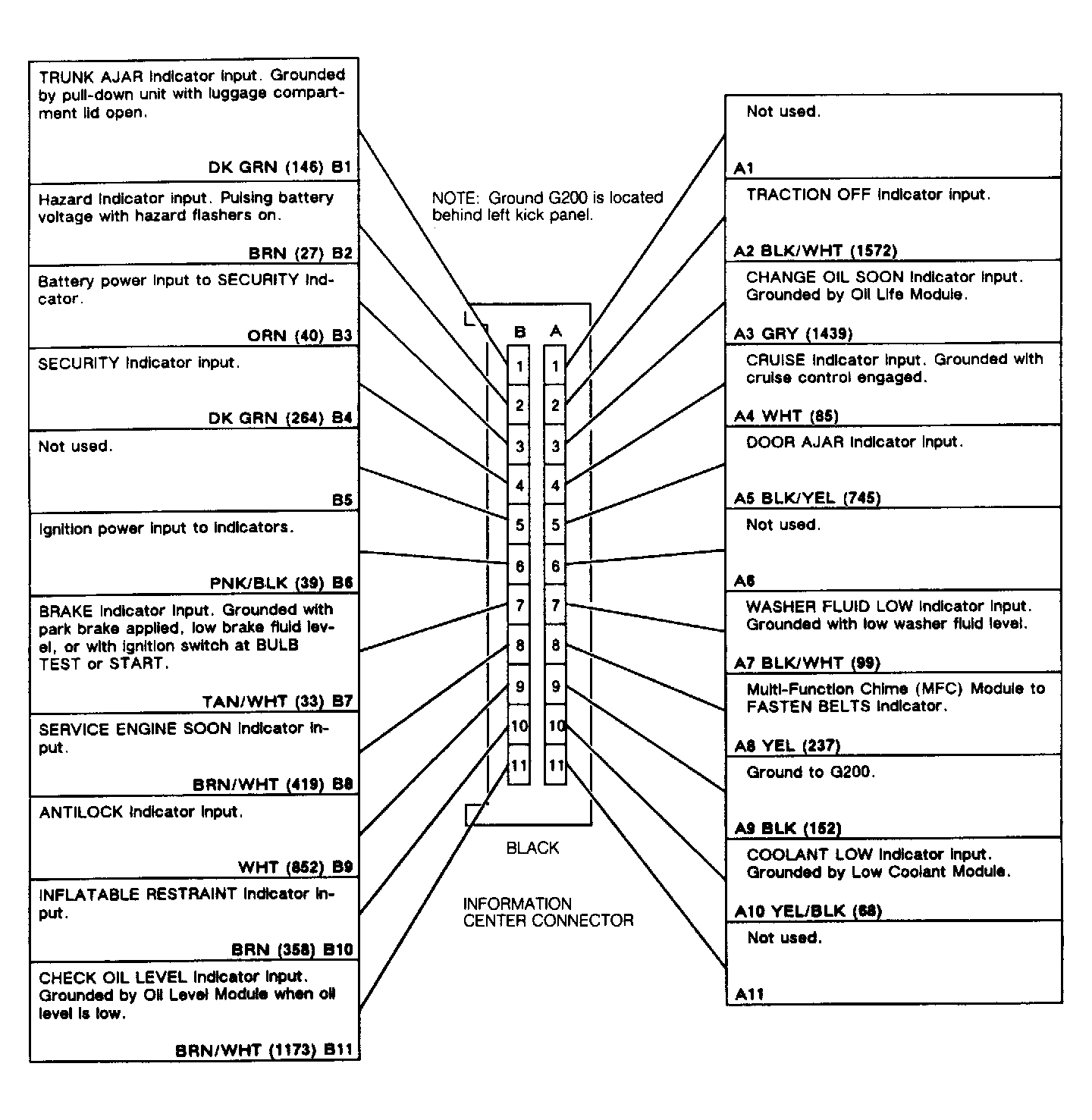

Fig 7: Testing Instrument Panel Cluster (IPC) Connector Pins (Park Avenue - Information Center)

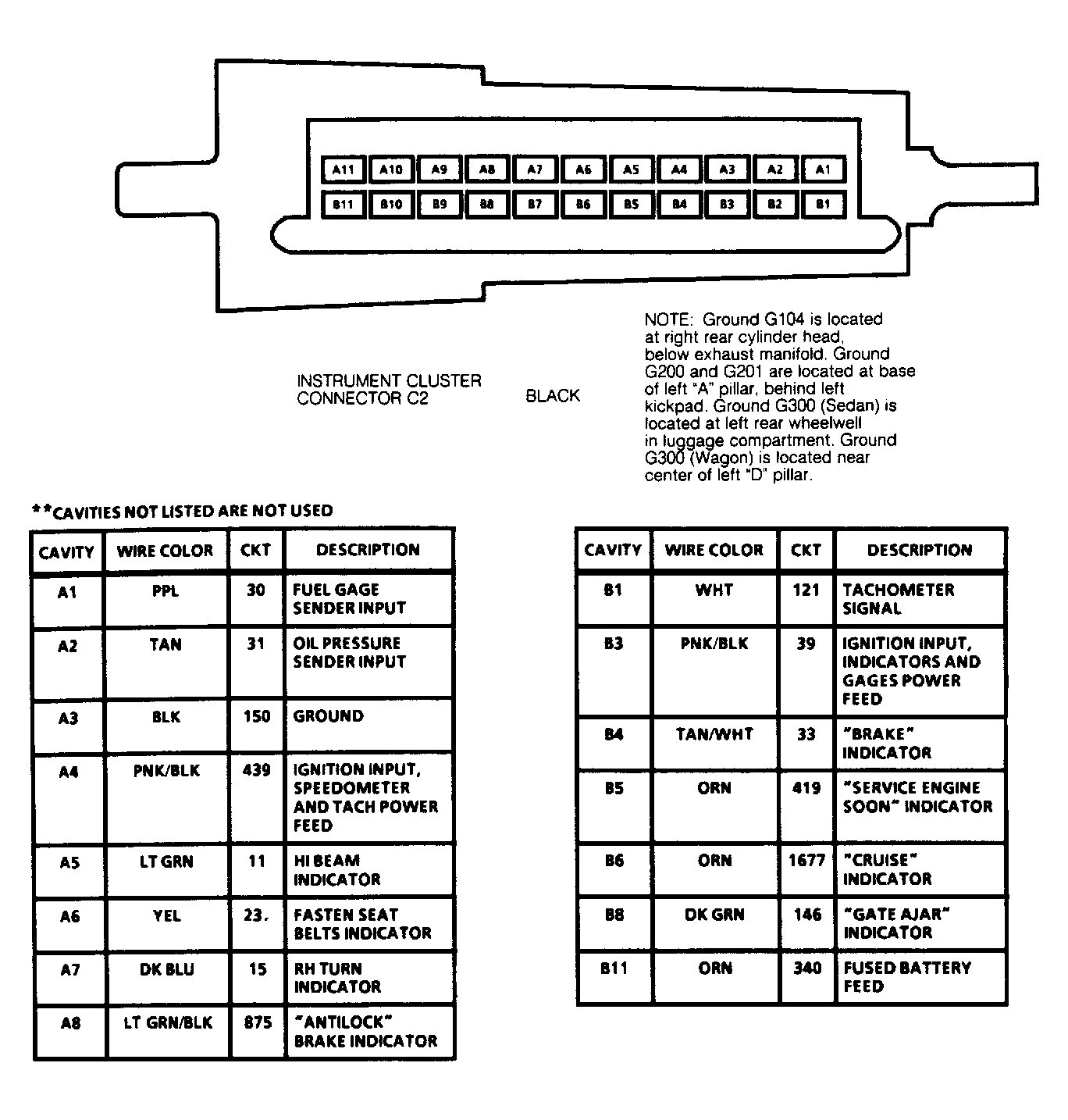

Fig 8: Testing Instrument Panel Cluster (IPC) Connector Pins Regal (1 of 2)

Fig 9: Testing Instrument Panel Cluster (IPC) Connector Pins Regal (2 of 2)

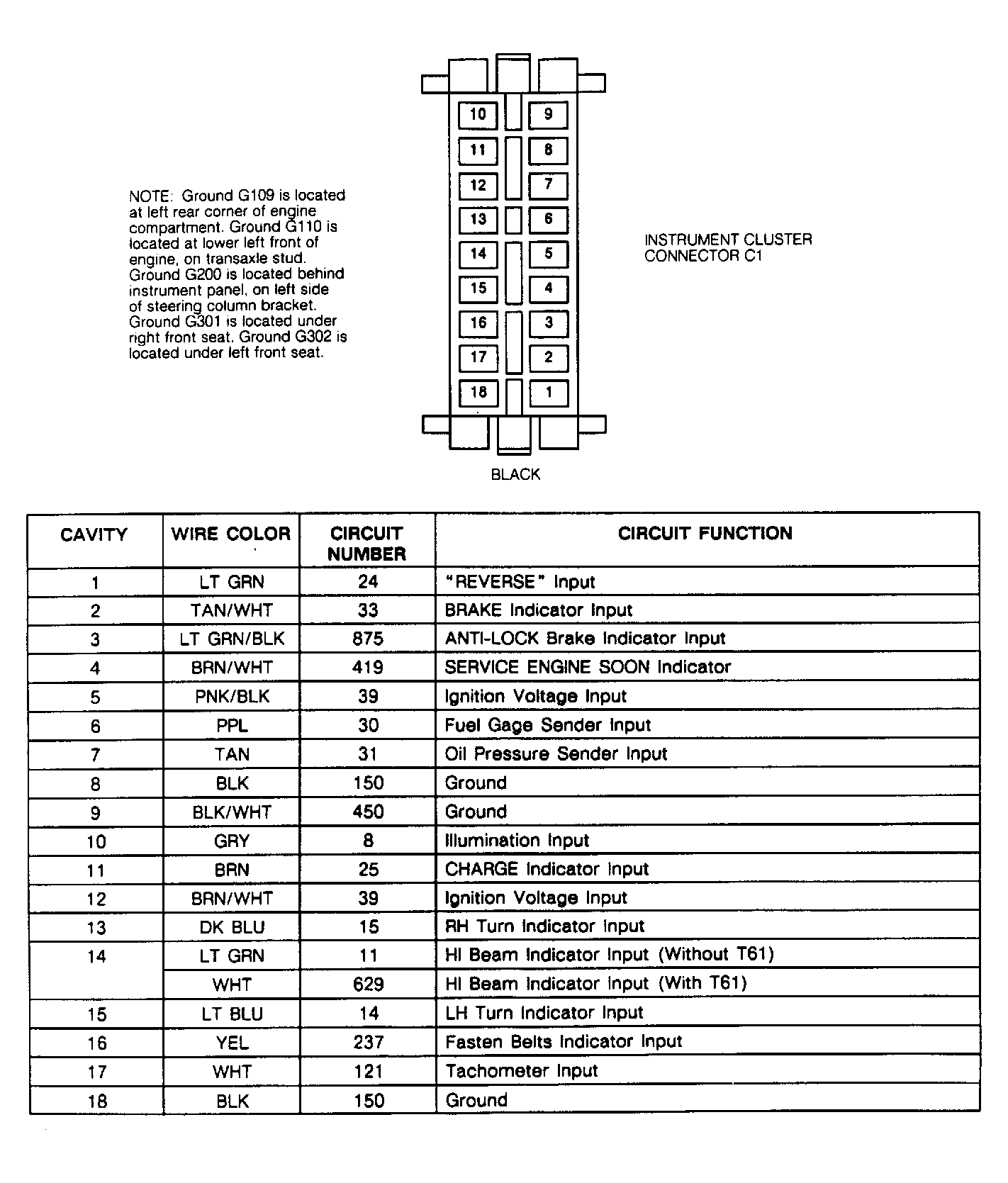

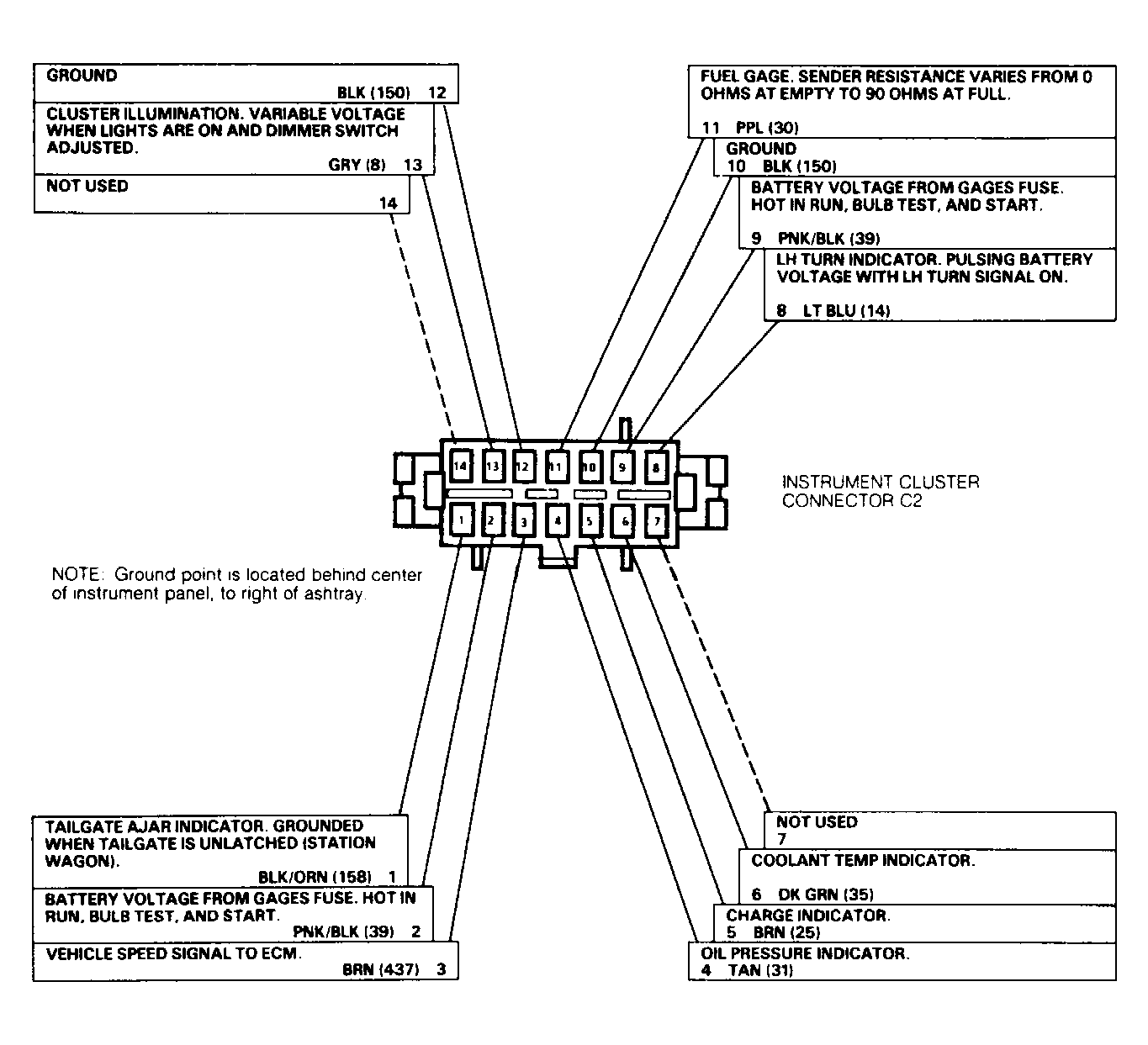

Fig 10: Testing Instrument Panel Cluster (IPC) Connector C1 Pins (Roadmaster)

Fig 11: Testing Instrument Panel Cluster (IPC) Connector C2 Pins (Roadmaster)

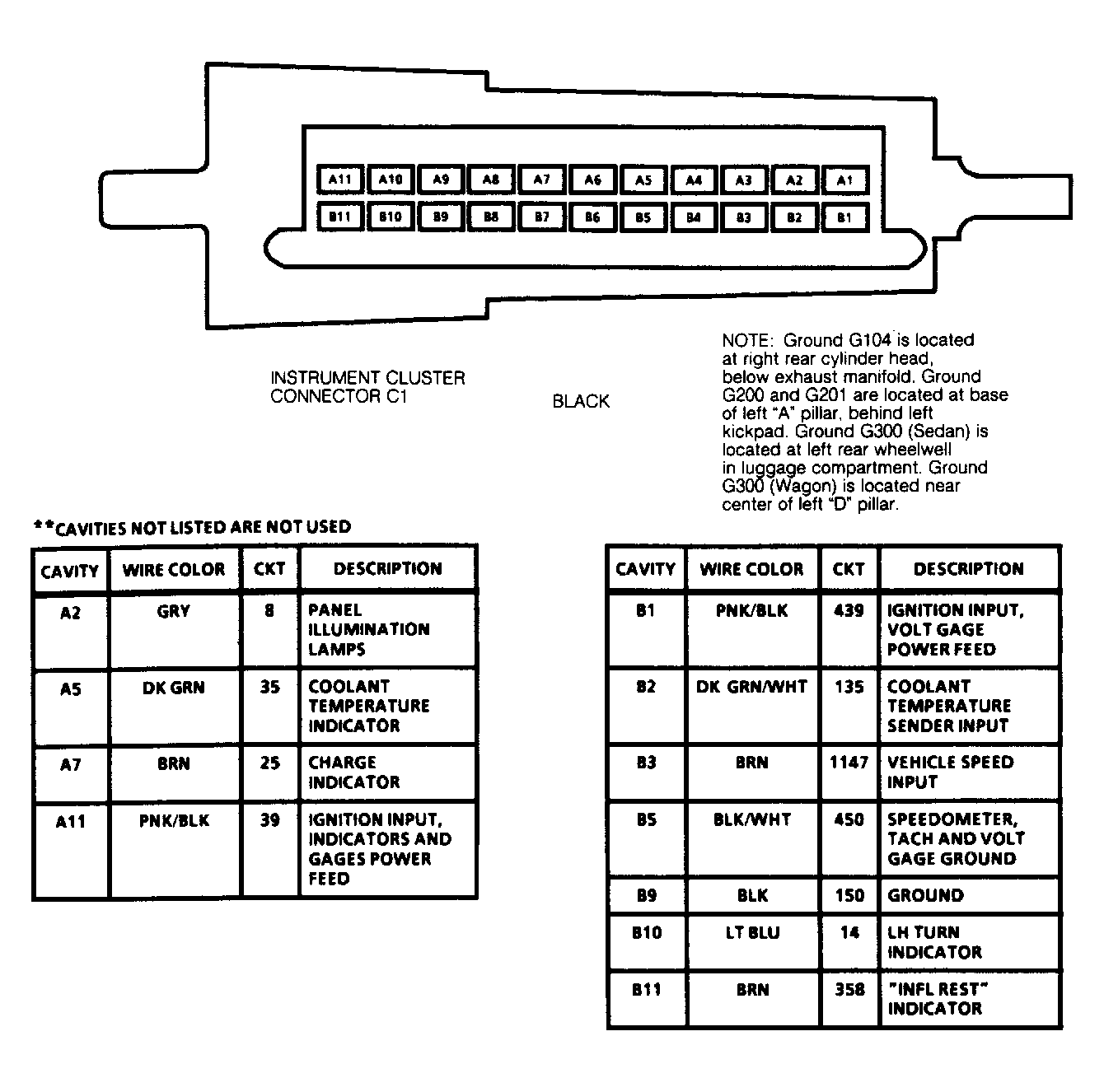

Fig 12: Testing Instrument Panel Cluster (IPC) Connector C1 Pins (Skylark)

Fig 13: Testing Instrument Panel Cluster (IPC) Connector C2 Pins (Skylark)
