Test A: Power Window Switch

For test procedure, refer to illustration. See Fig 1.

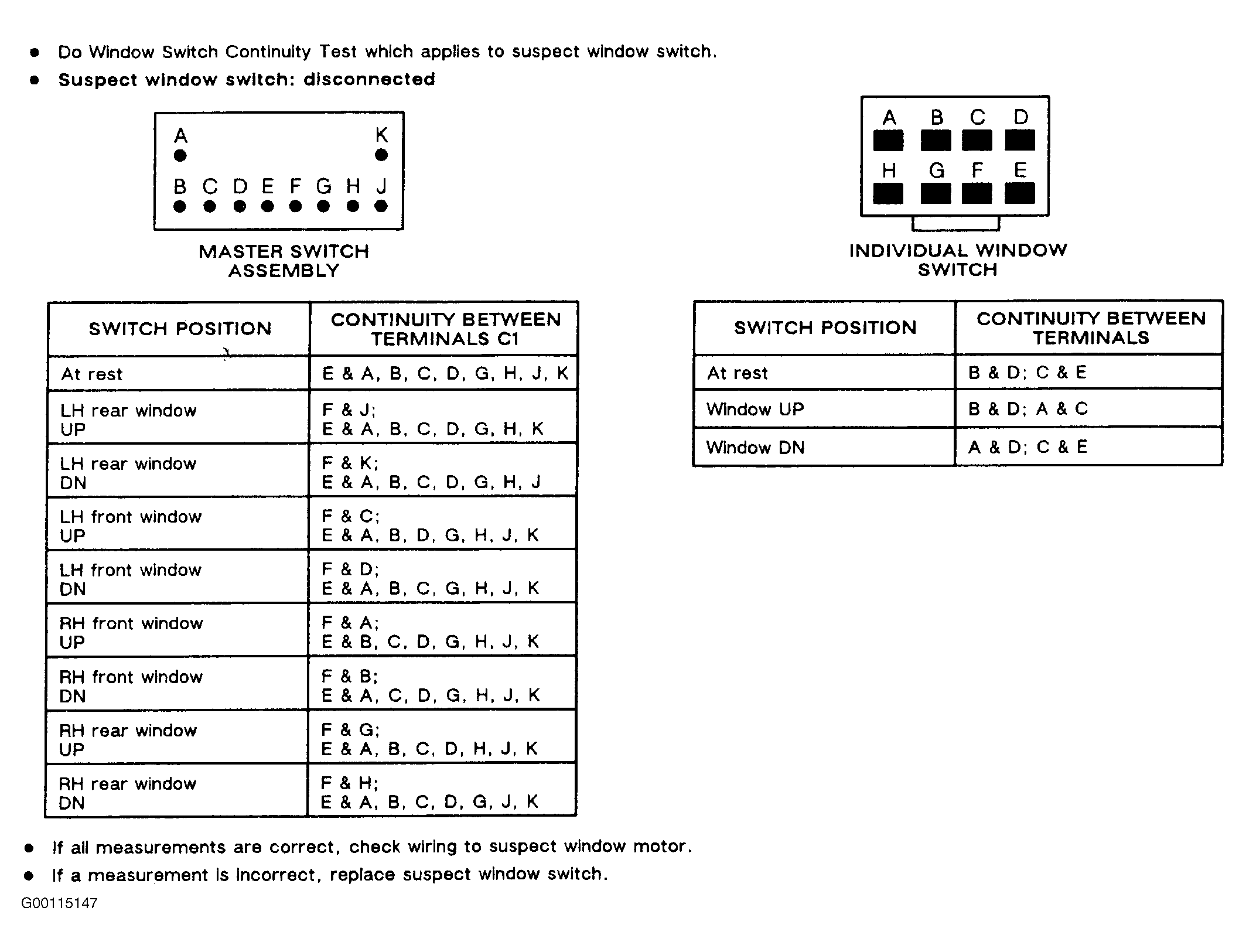

Fig 1: Test A: Power Window Switch

G00115147

Courtesy of GENERAL MOTORS CORP.
