Switch Continuity

  1. If all seat functions do not operate, check power and ground at suspect seat switch. See Fig 1 .
  2. If some seat functions do not operate, see Fig 1 .

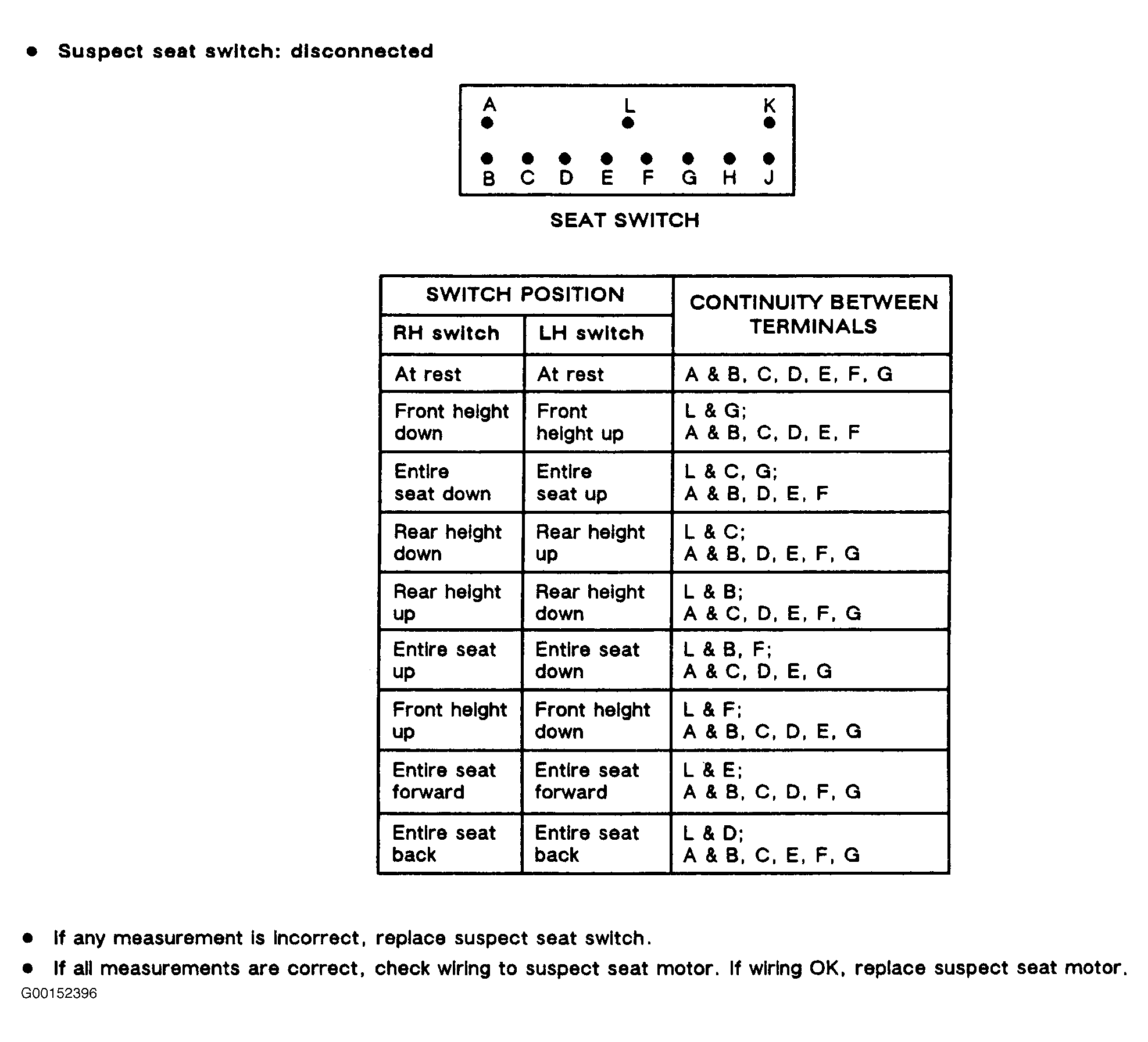

Fig 1: Testing Switch Continuity
G00152396Courtesy of GENERAL MOTORS CORP.
