Component Locations

COMPONENT LOCATIONS

Connector Location
I/P Fuse Block Left Of Instrument Panel. See Fig 1 .
C305 Passenger Front Door. See Fig 2 .
C324 Under Left Seat. See Fig 3 .
C325 Under Right Seat. See Fig 3 .
C327 Driver Front Door. See Fig 4 .
Forward/Back Motor Connector Under Seat. See Fig 3 .
Front Height Motor Connector Under Seat. See Fig 3 .
G200 Left Of Instrument Panel. See Fig 1 .
G201 Left Of Instrument Panel. See Fig 1 .
Left Seat Switch Connector Left Door. See Fig 4 .
P500 Driver Front Door. See Fig 4 .
P600 Passenger Front Door. See Fig 2 .
Rear Height Motor Connector Under Seat. See Fig 3 .
Right Seat Switch Connector Right Door. See Fig 2 .
S200 Left Of Instrument Panel. See Fig 1 .
S233 Left Of Instrument Panel. See Fig 1 .
S238 Left Of Instrument Panel. See Fig 1 .
S288 Left Of Instrument Panel. See Fig 1 .

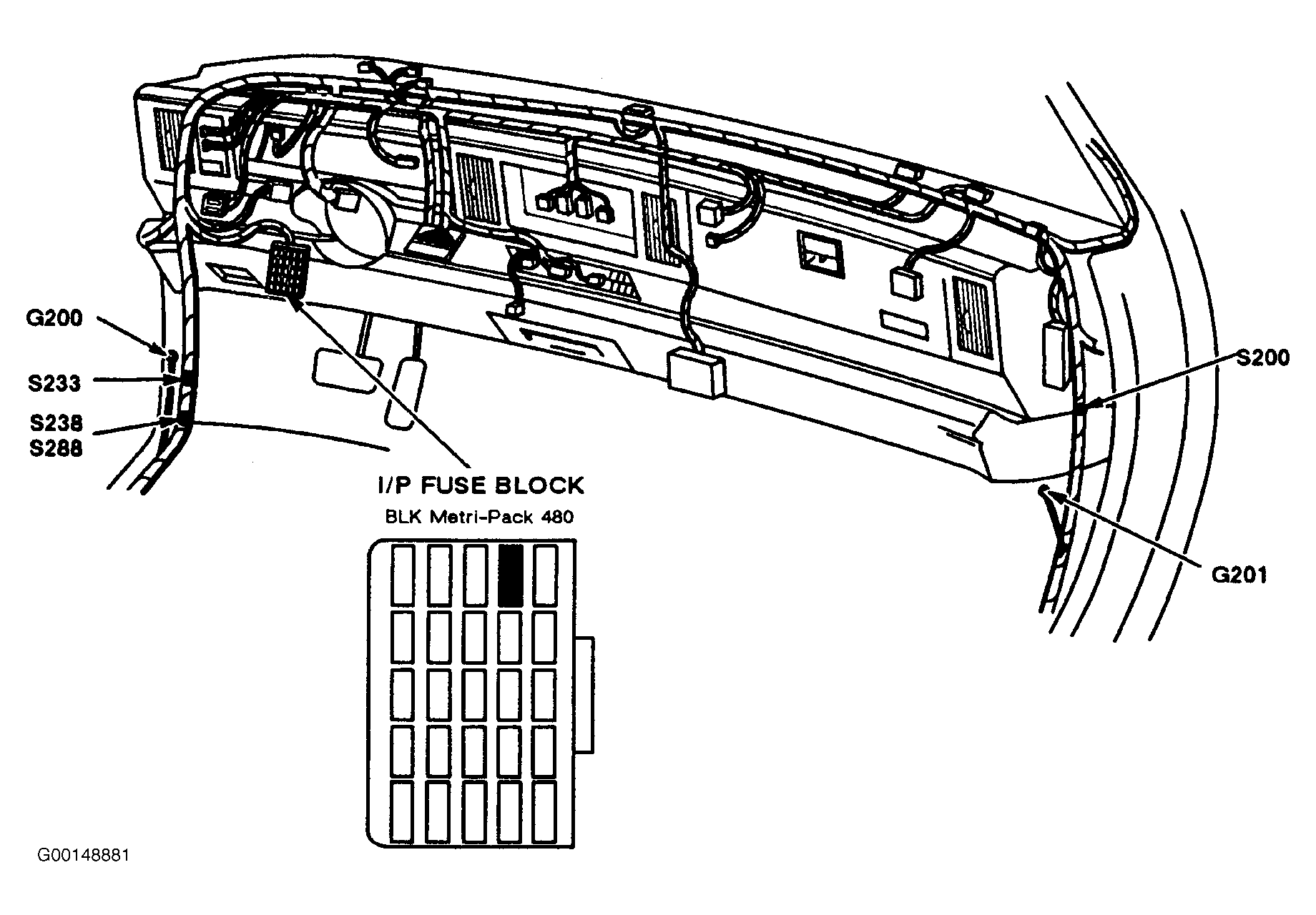

Fig 1: Locating Instrument Panel Components
G00148881Courtesy of GENERAL MOTORS CORP.

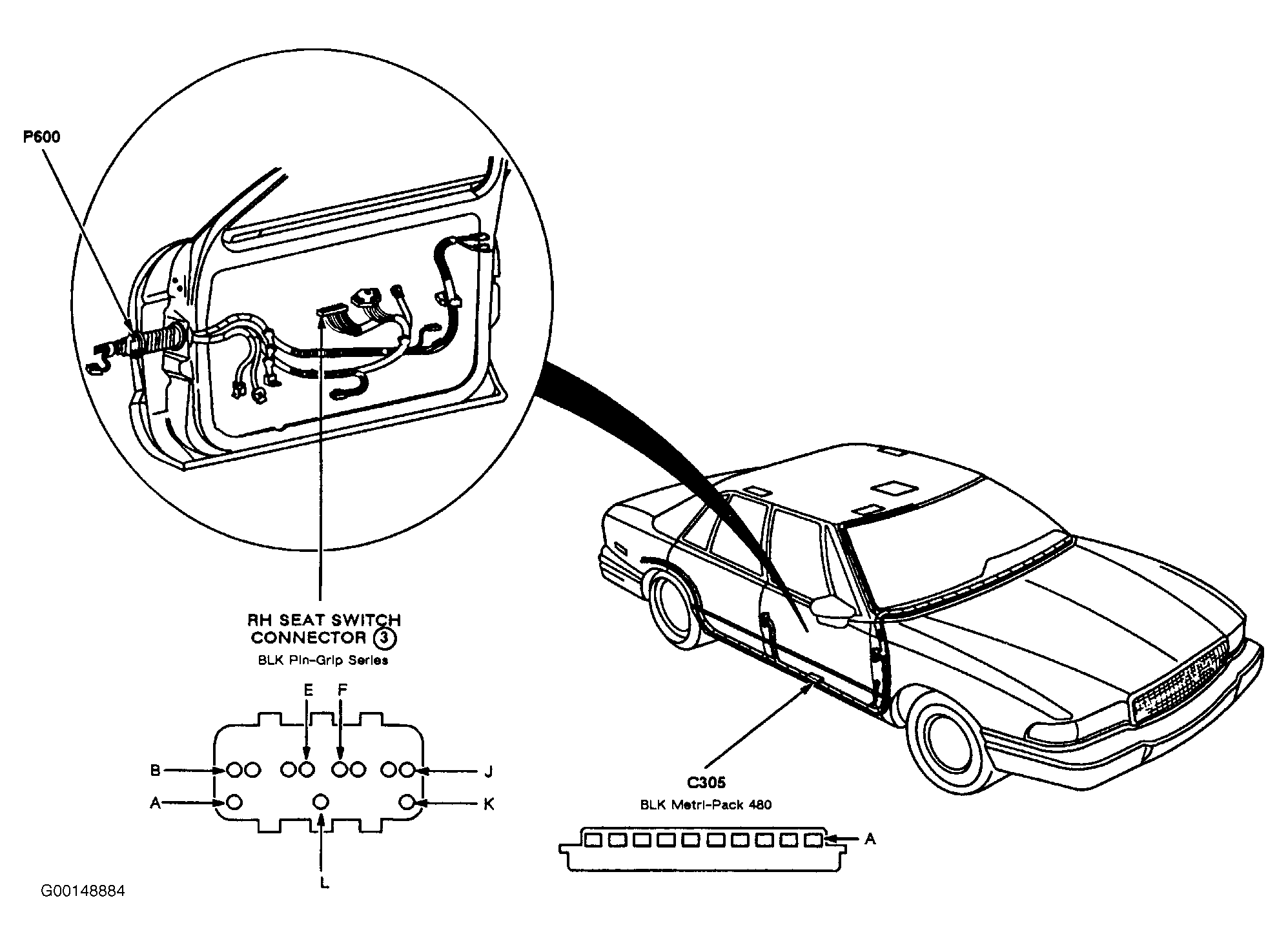

Fig 2: Locating Passenger Side Door Components
G00148884Courtesy of GENERAL MOTORS CORP.

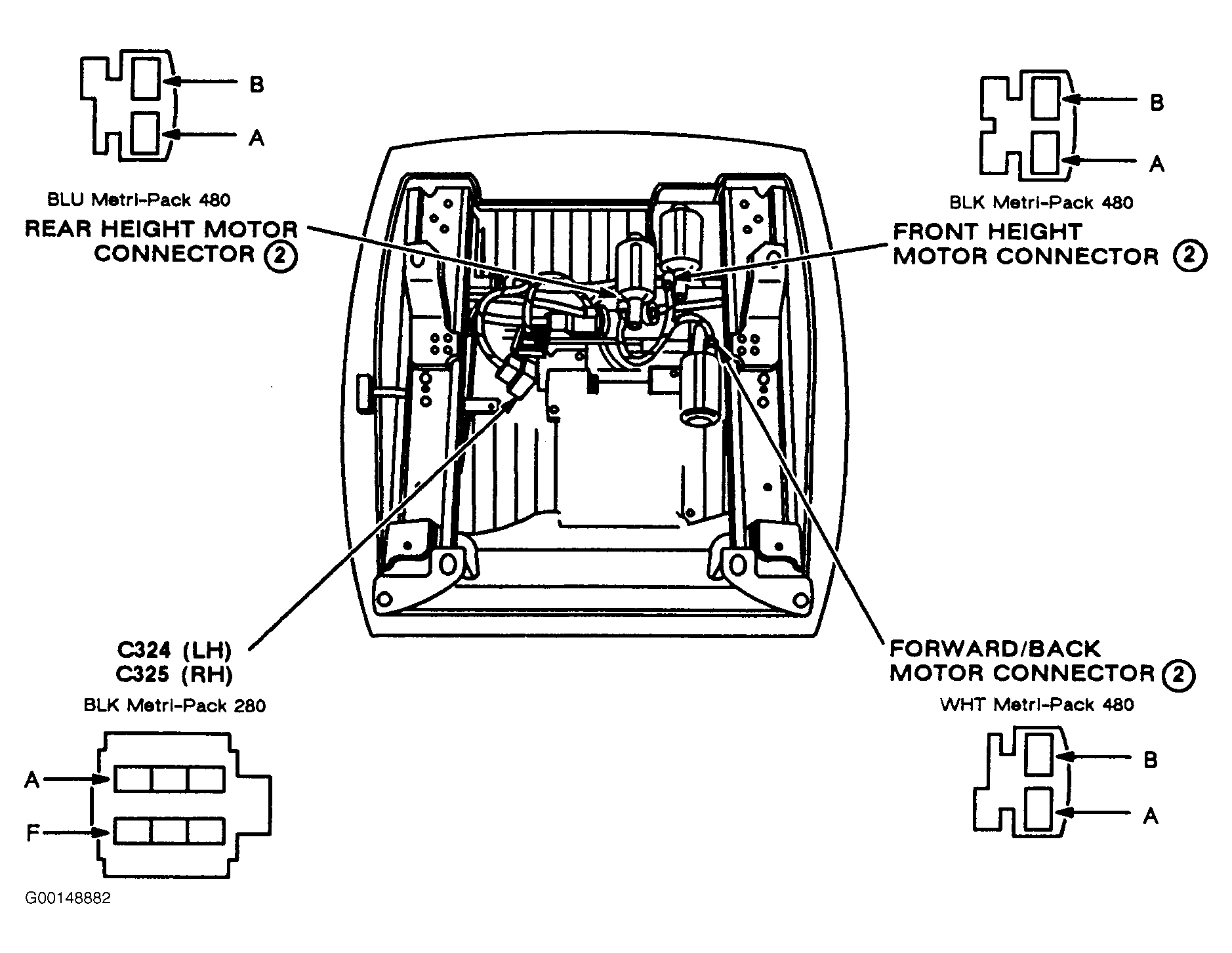

Fig 3: Locating Under Seat Components
G00148882Courtesy of GENERAL MOTORS CORP.

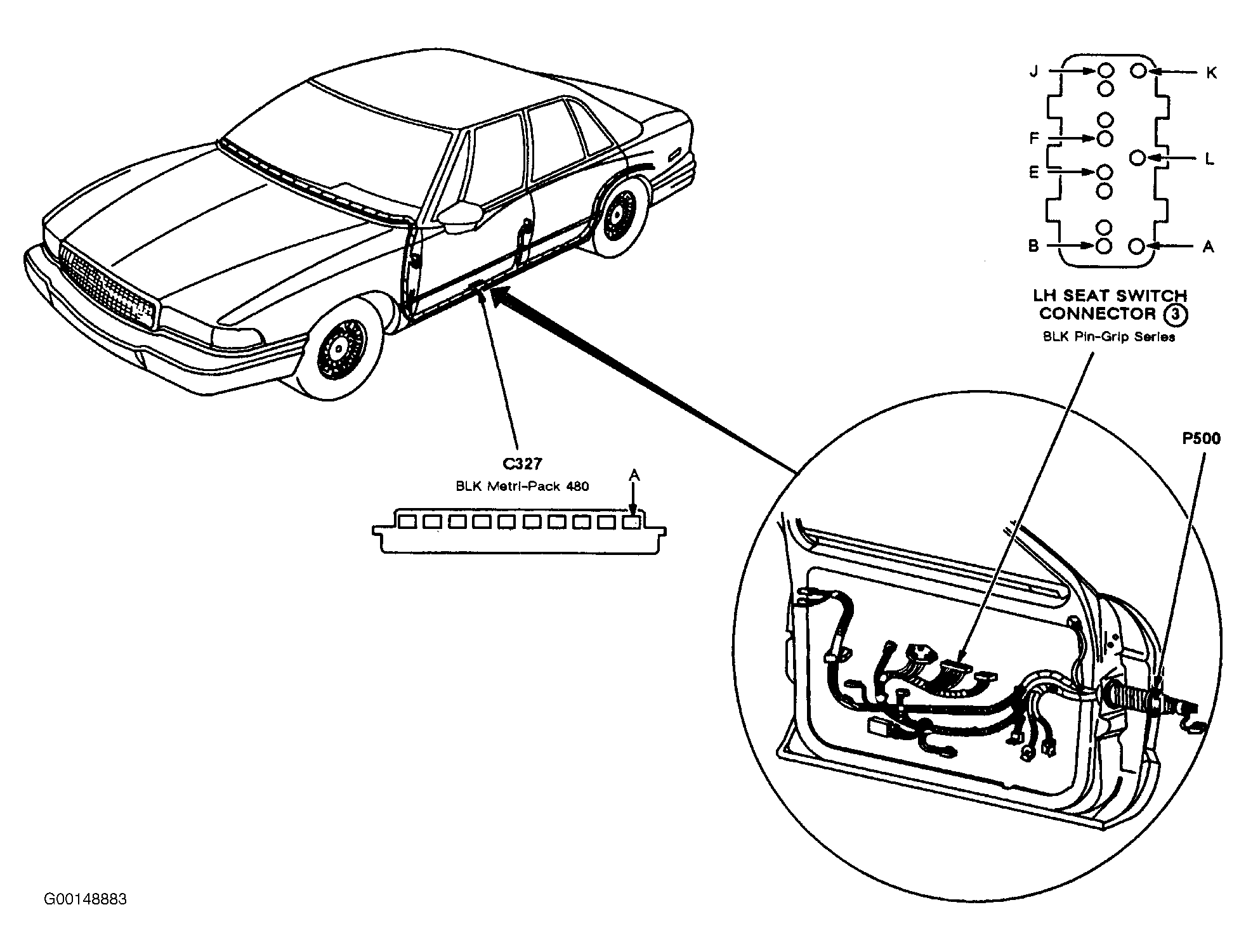

Fig 4: Locating Driver Side Door Components
G00148883Courtesy of GENERAL MOTORS CORP.
