Test H: Front Door Lock Switch Output

To perform Front Door Lock Switch Output testing, refer to illustration. See Fig 1 .

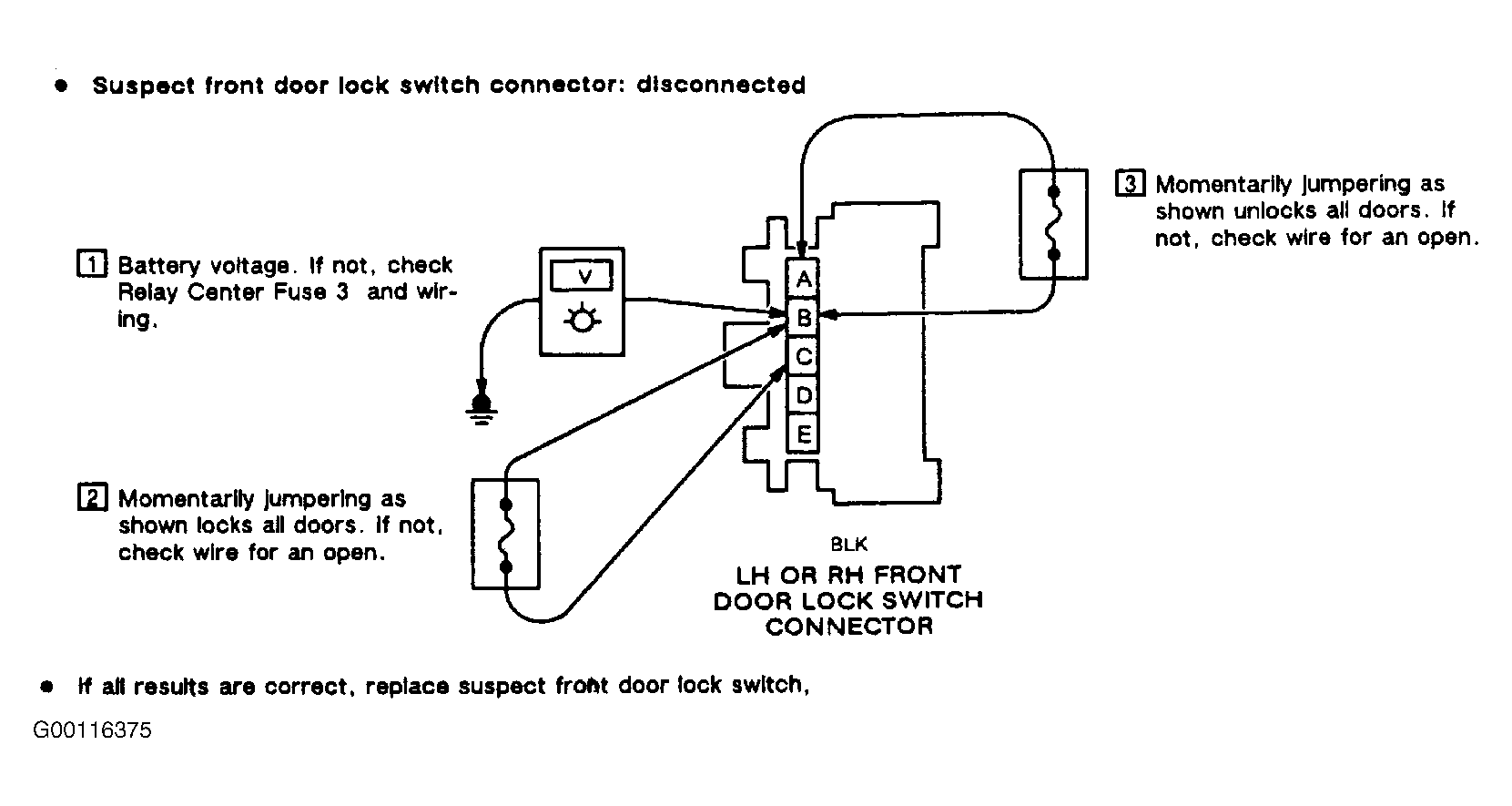

Fig 1: Testing Front Door Lock Switch Output

G00116375

Courtesy of GENERAL MOTORS CORP.
