Home >> Buick >> 1992 >> LeSabre Custom >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> System Tests >> Test A: Door Lock Isolation

Test A: Door Lock Isolation

To perform Door Lock Isolation testing, refer to illustration. See Fig 1 .

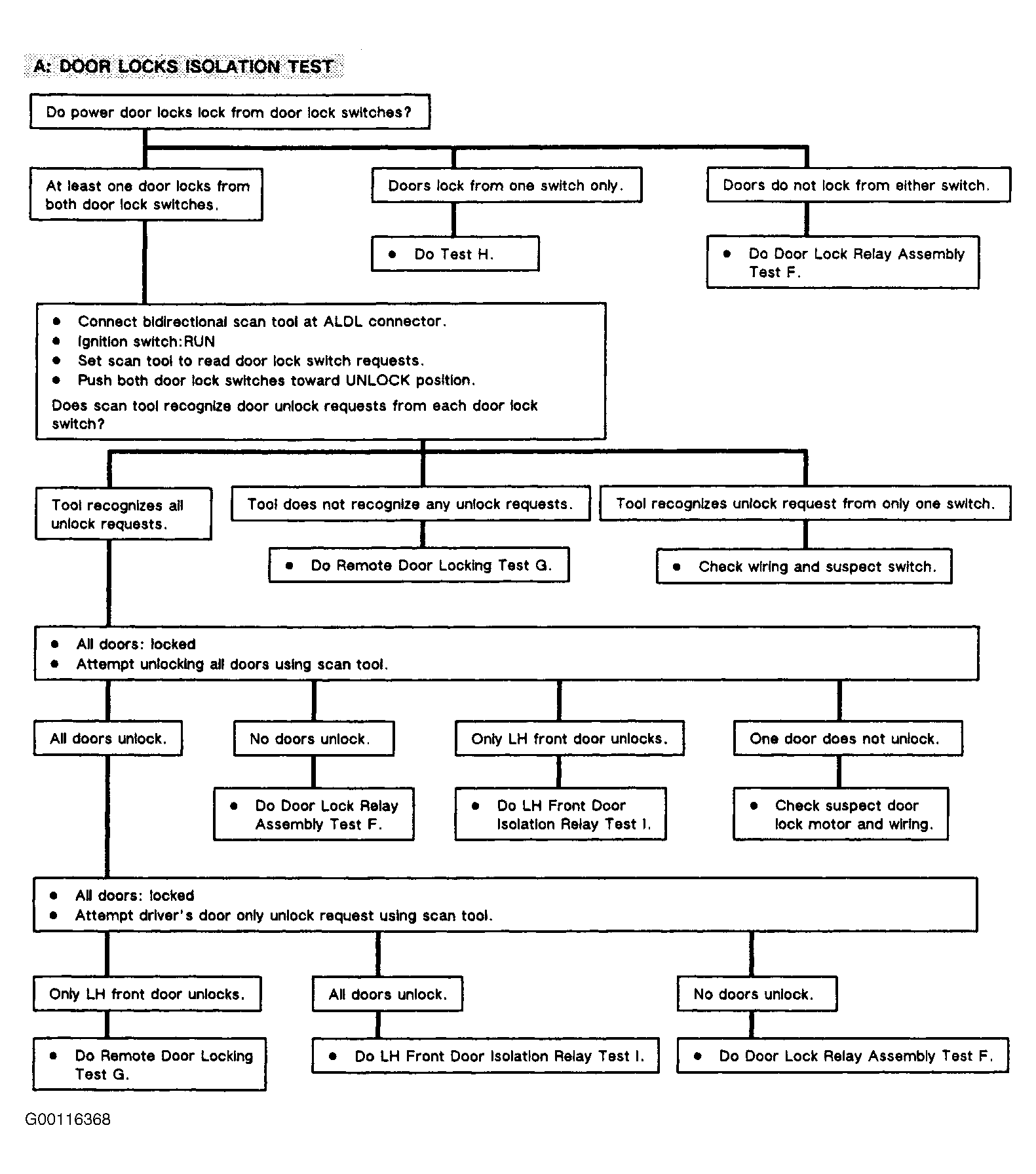

Fig 1: Testing Door Lock Isolation

G00116368

Courtesy of GENERAL MOTORS CORP.
