Code 38, Flow Chart, Brake Switch Ckt

NOTE: Scan testers display brake status in different manners depending upon manufacturer. What is important is that status changes when brake pedal is depressed.

If Code 26 is set with Code 38, see Code 26 chart.

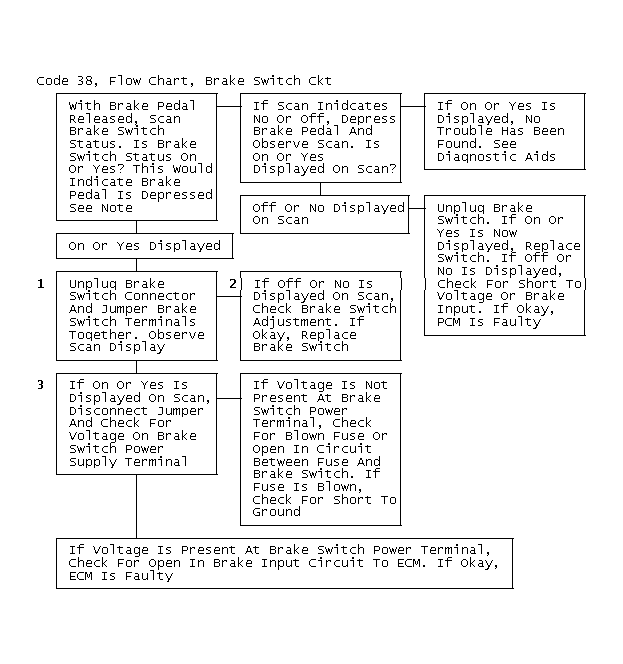

Fig 1: Code 38, Flow Chart, Brake Switch Ckt
GB0049130
