Wiring Diagrams

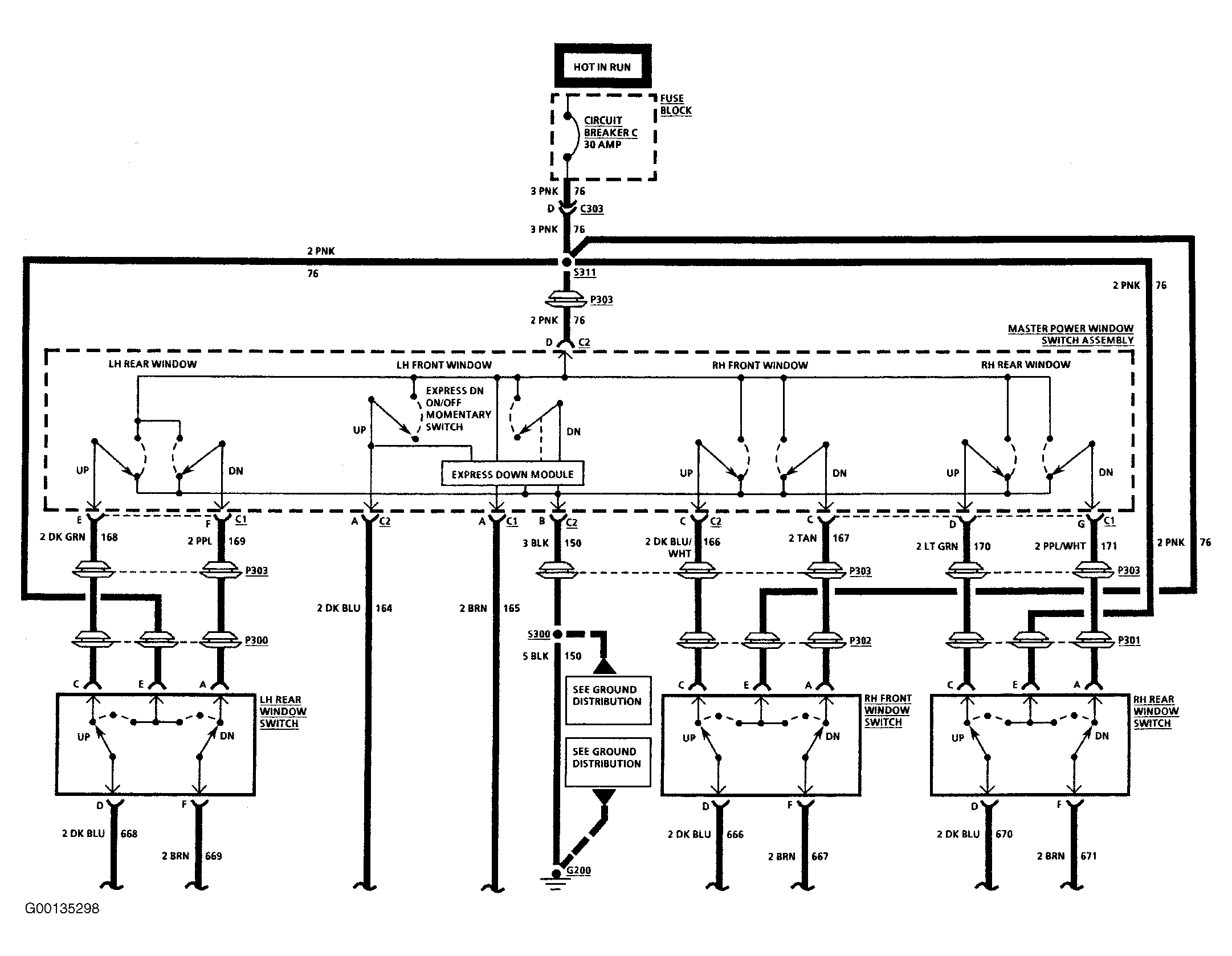

Fig 1: Power Window System Wiring Diagram (Roadmaster - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

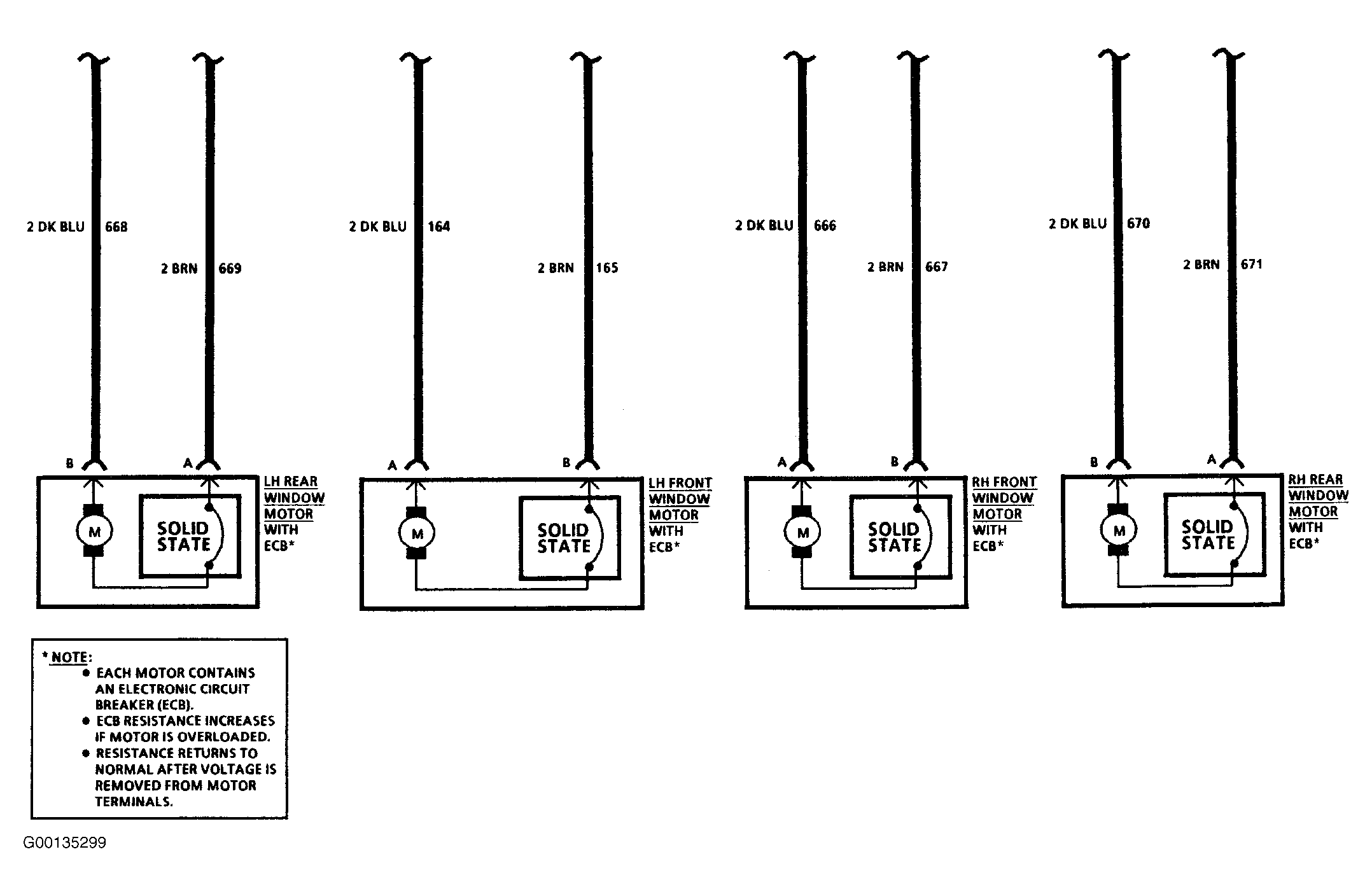

Fig 2: Power Window System Wiring Diagram (Roadmaster - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
