Window Regulator: Installation
- Install window regulator assembly.

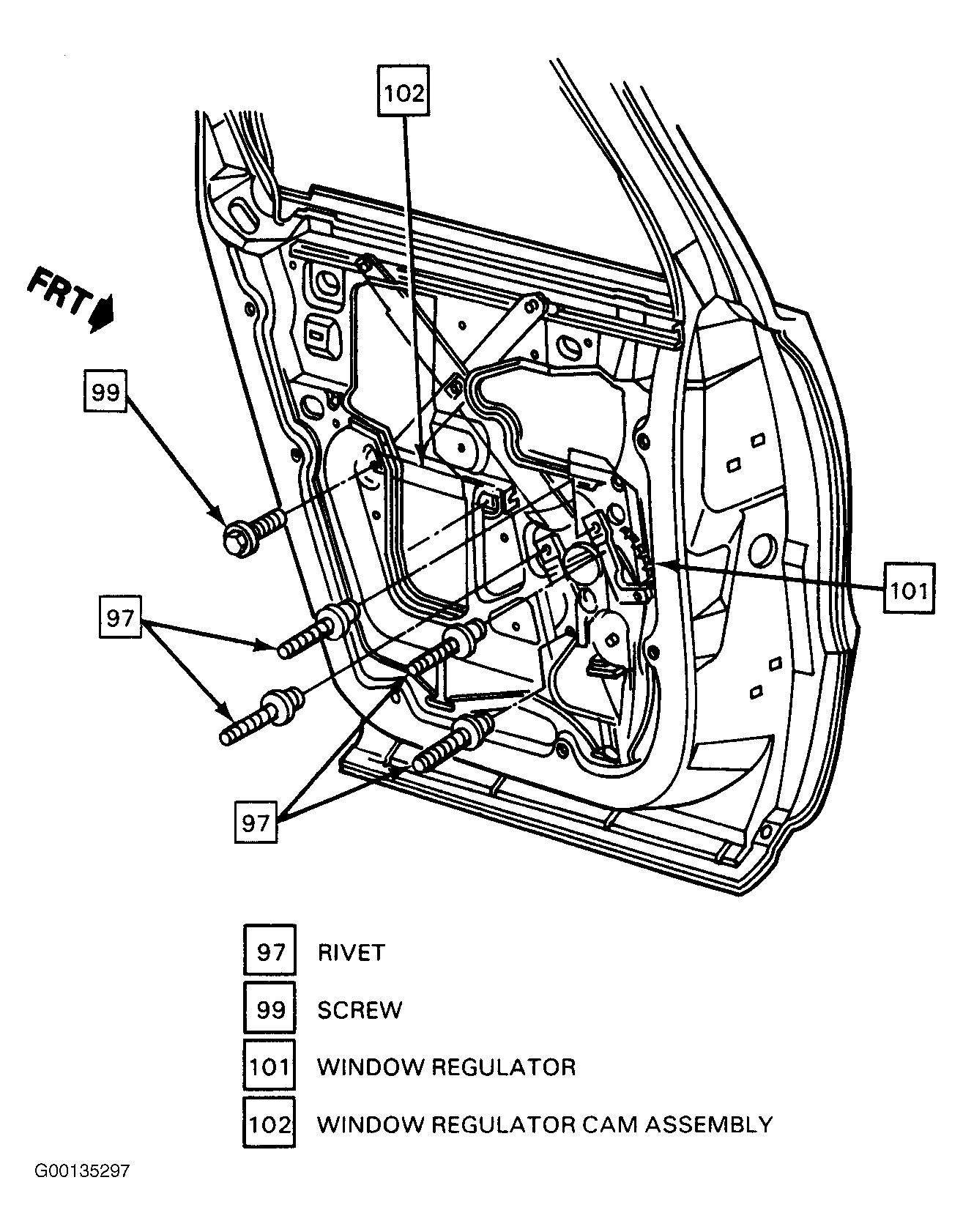

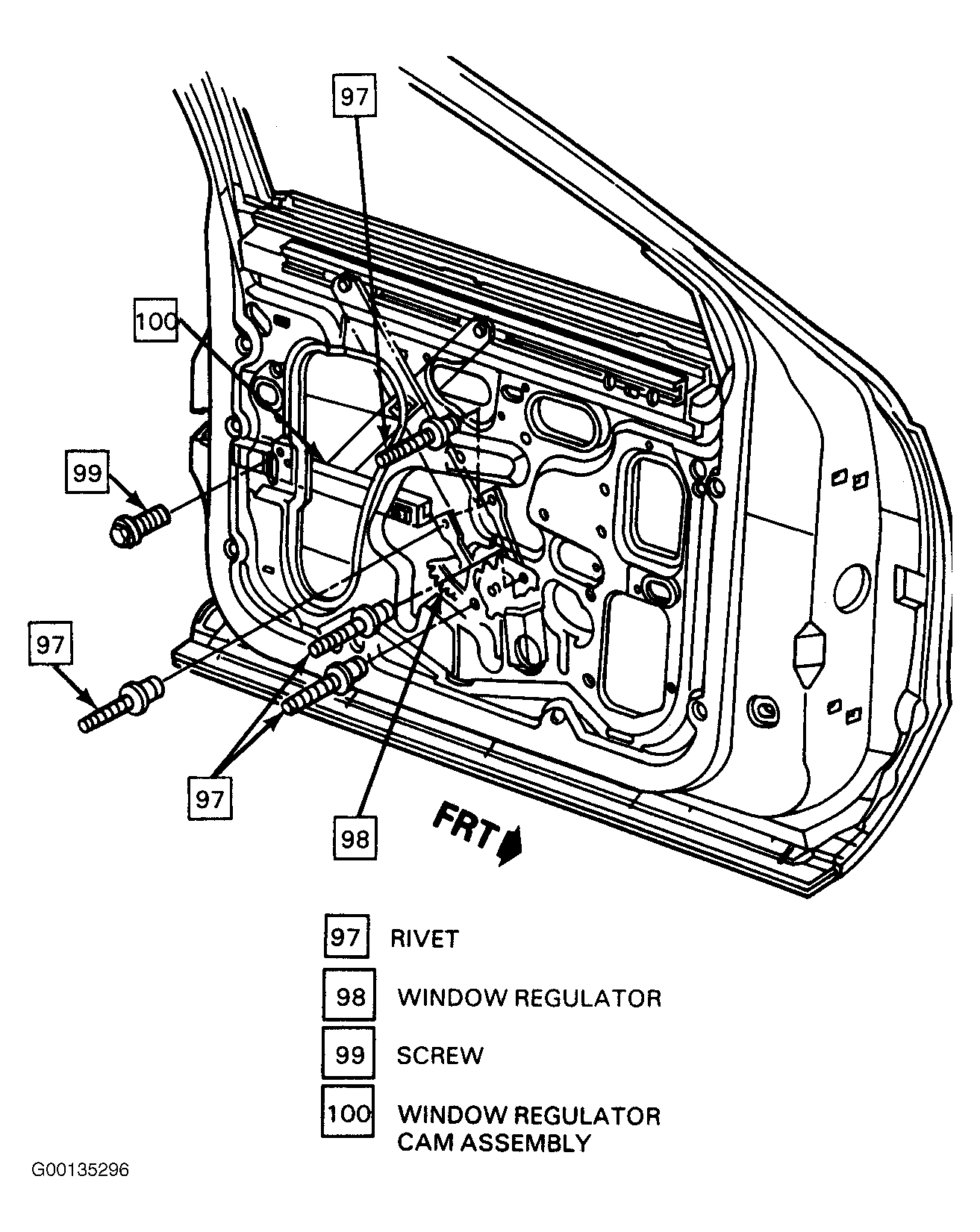

- Install rivets (97) securing window regulator (98 or 101) to door panel. See Fig 2
for front doors or Fig 3
for rear doors. Secure upper rearmost, center rearmost, center foremost, then lower rearmost.
- Connect electrical connection.
- Install screws (99) securing window regulator cam assembly (100 or 102) to door inner panel. See Fig 2
for front doors or Fig 3
for rear doors. See TORQUE SPECIFICATIONS
.

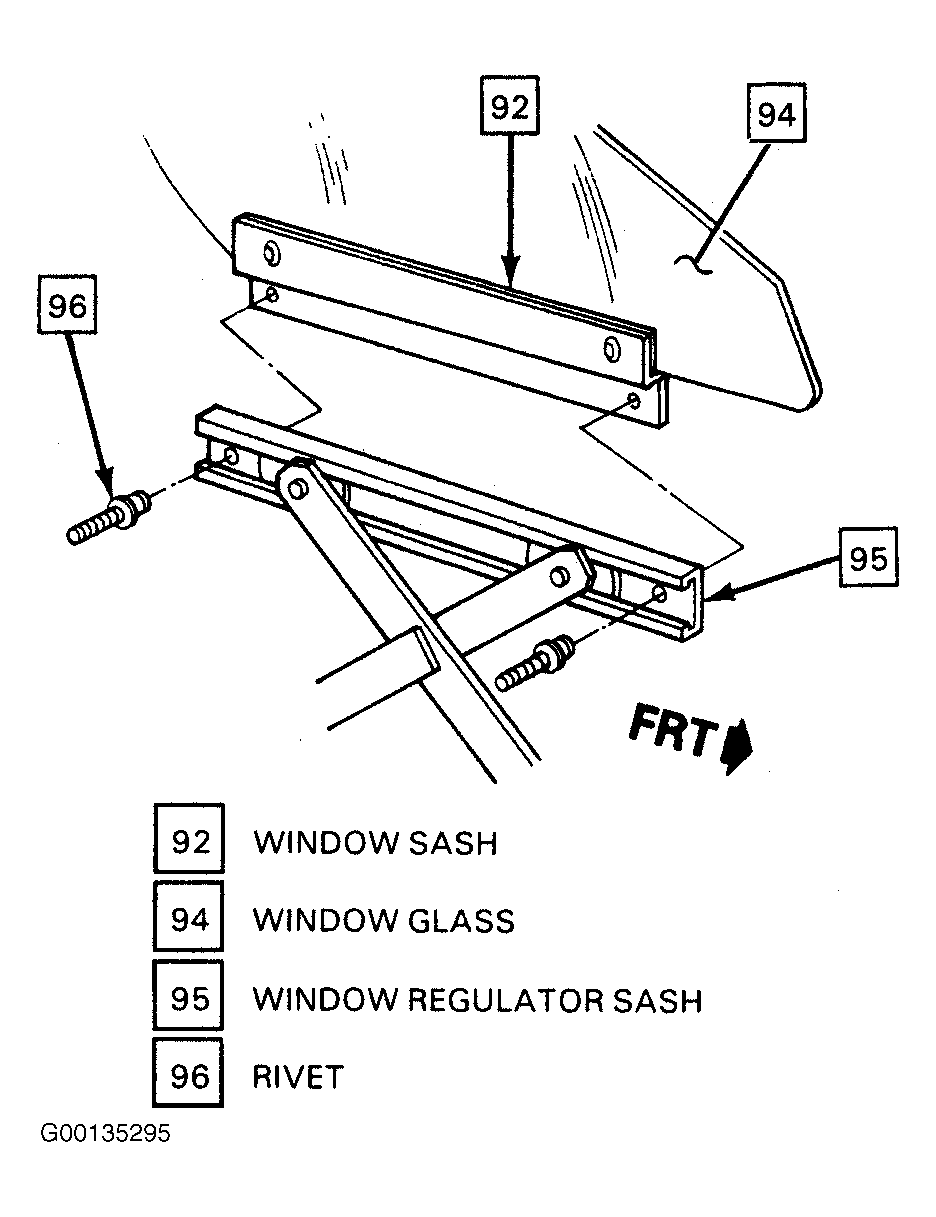

- Install rivets (96) connecting window sash (92) to regulator sash (95). See Fig 1
.
- Install door latch module assembly. See DOOR LATCH MODULE ASSEMBLY
.
- Remove cloth-backed tape. Inspect window regulator (98 or 101) operation. See Fig 2
for front doors or Fig 3
for rear doors. Inspect window glass (94) alignment.
- Install water deflector. See WATER DEFLECTOR
.
- Install door trim panel. See TRIM PANEL
.
