Pull Handle: Installation

  1. Install pull handle (61). See Fig 1 .
  2. Install pins (60) to back of door trim panel (2).
  3. Install hinge spring (59) to back of door trim panel (2). Hook hinge spring (59) over tab.
  4. Install door trim panel. See TRIM PANEL  .

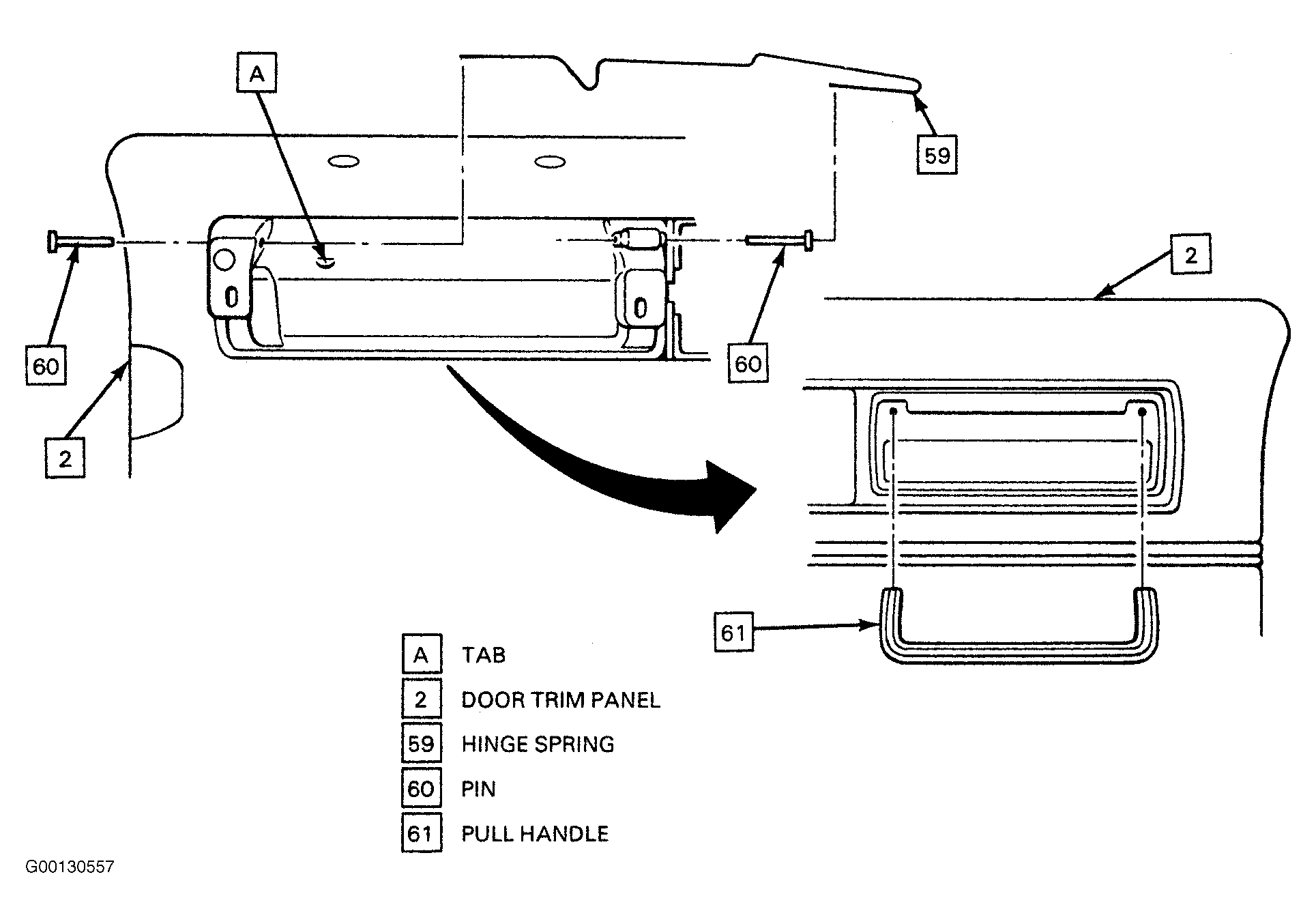

Fig 1: Removing & Installing Pull Handle
G00130557Courtesy of GENERAL MOTORS CORP.
