Removal & Installation: Notes

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in AIR BAG RESTRAINT SYSTEM article.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

NOTE: For exploded view of front and rear doors refer to illustrations. See Fig 1 and Fig 2 for front doors, or Fig 3 and Fig 4 for rear doors.

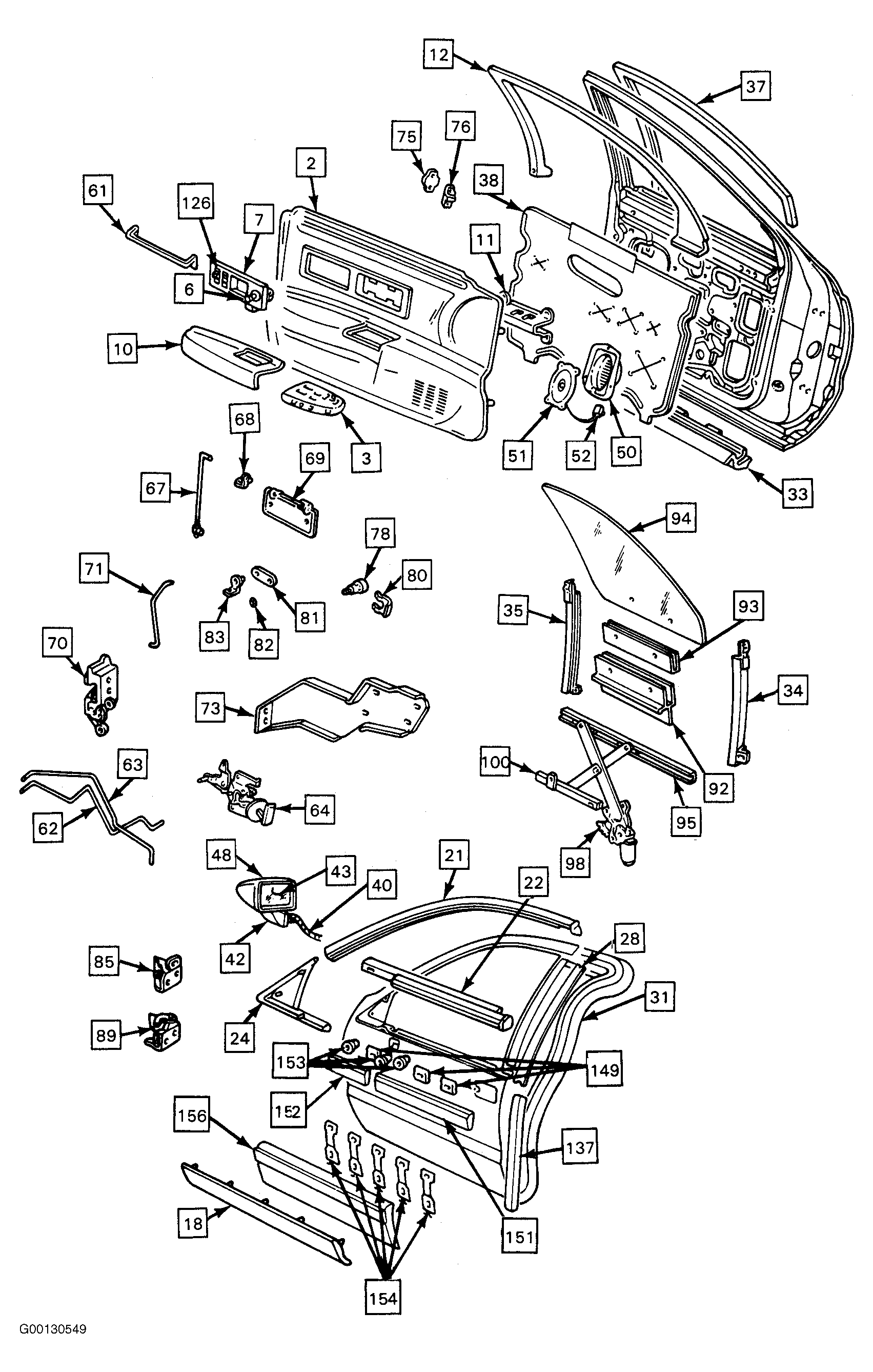

Fig 1: Exploded View Of Front Door Components

Courtesy of GENERAL MOTORS CORP.

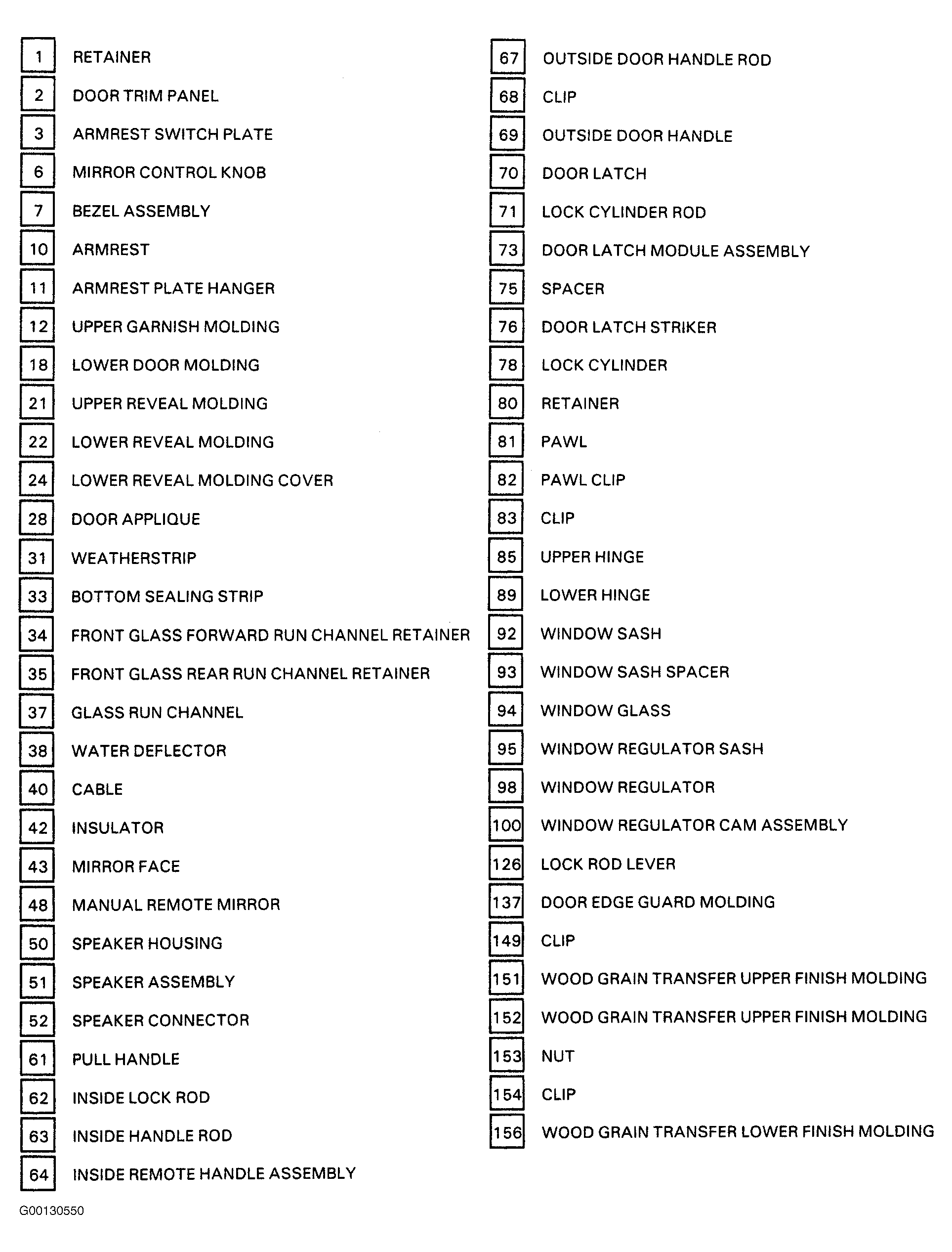

Fig 2: Front Door Components Legend

Courtesy of GENERAL MOTORS CORP.

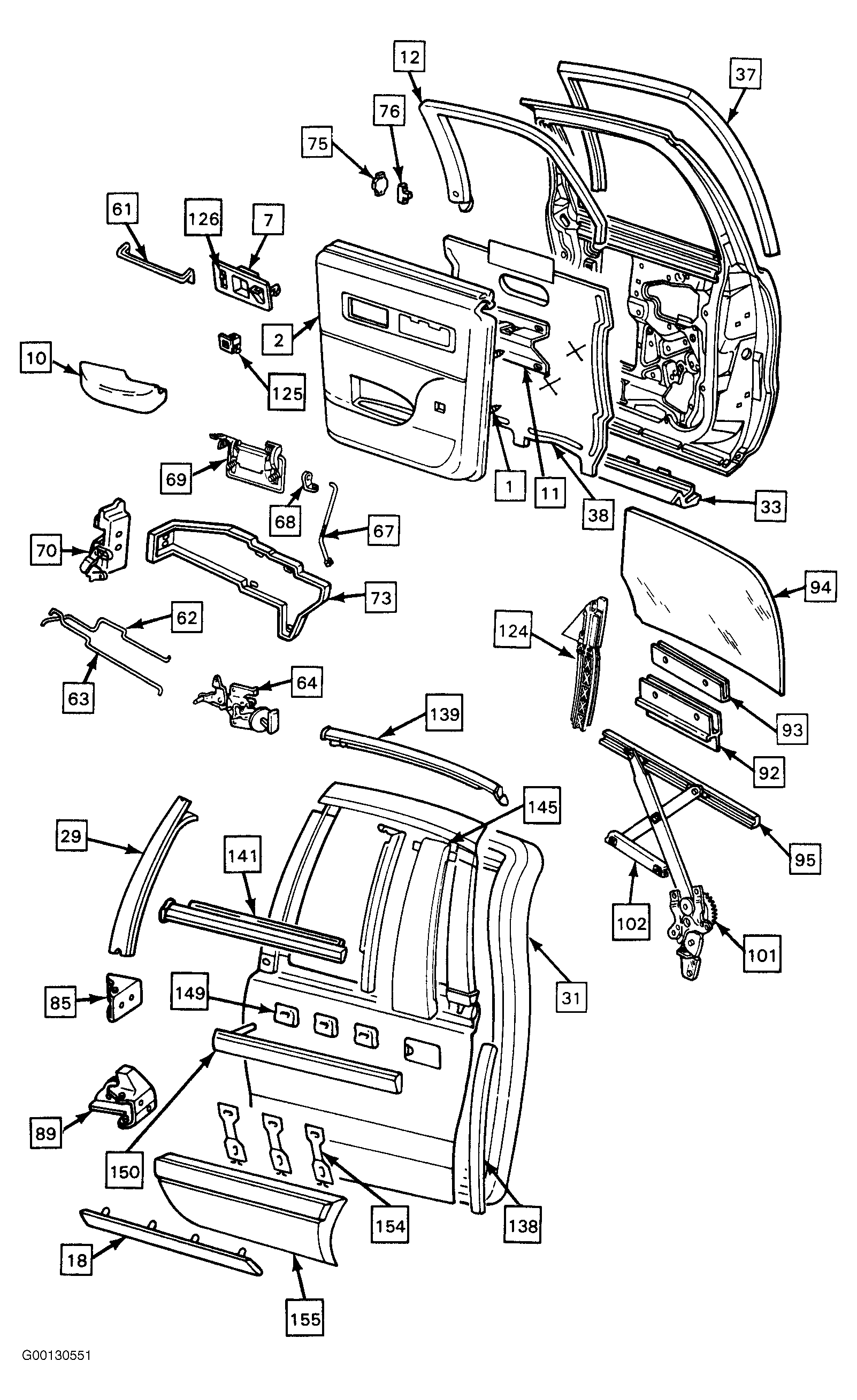

Fig 3: Exploded View Of Rear Door Components

Courtesy of GENERAL MOTORS CORP.

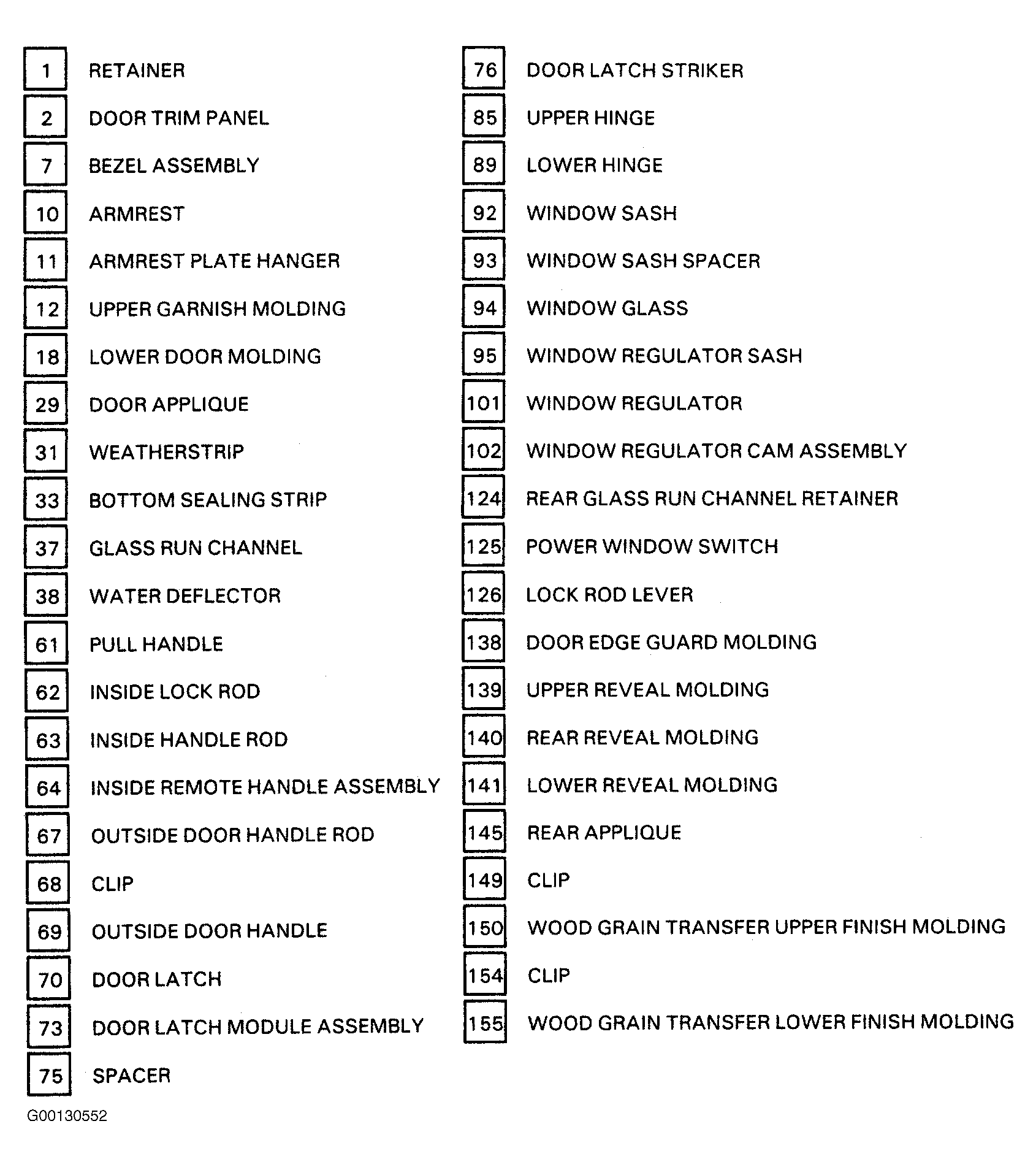

Fig 4: Rear Door Components Legend

Courtesy of GENERAL MOTORS CORP.
