Removal & Installation: Armrest: Installation

1. Install armrest (10) to armrest plate hanger (11). See Fig 1 .
2. Install screws (9). See TORQUE SPECIFICATIONS  .

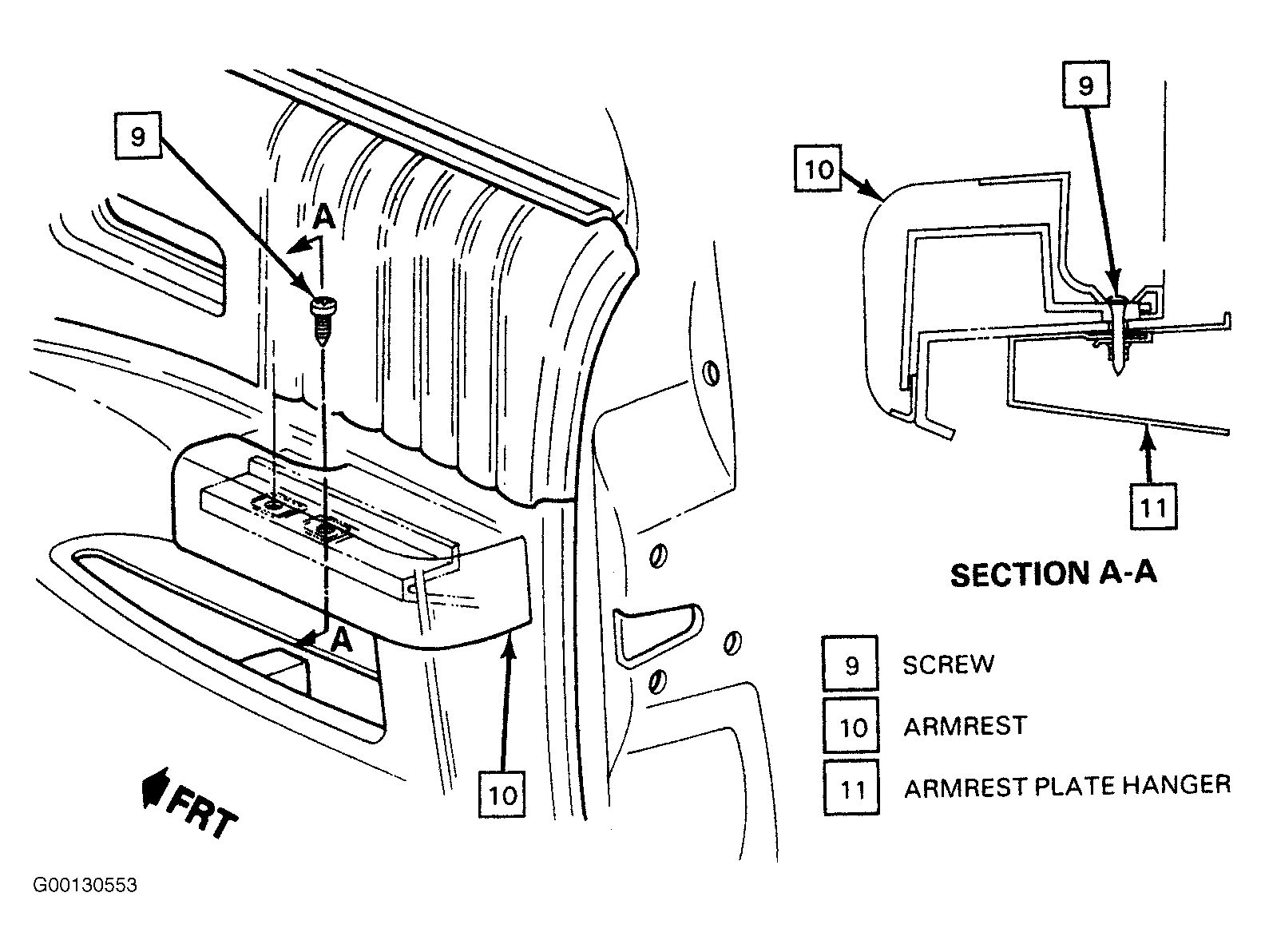

Fig 1: Removing & Installing Armrest

Courtesy of GENERAL MOTORS CORP.
