Installation (Reatta)

  1. Install motor to regulator using (1/4" X .968") rivets. See Fig 1 .
  2. Install screw and nut locking sector gear in position.
  3. Install regulator assembly. See REGULATORS  .

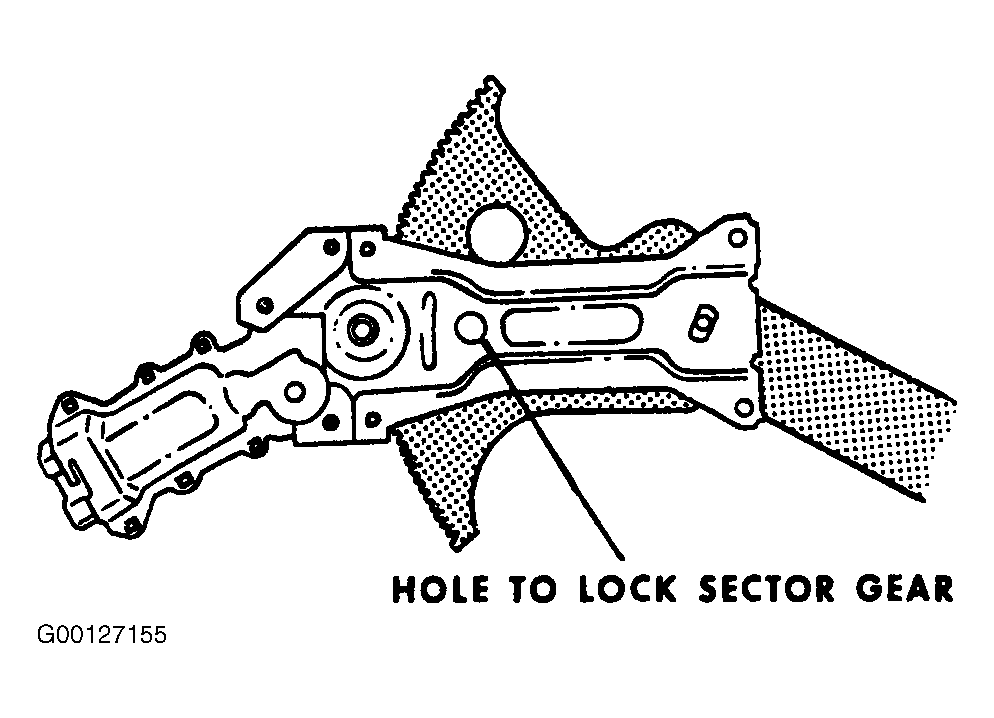

Fig 1: Identifying Electric Motor On Window Regulator (Reatta)
G00127155Courtesy of GENERAL MOTORS CORP.
