Code EO65, Cruise Servo Position

The PCM supplies 5 volts to the cruise control servo position sensor. Depending upon actual servo position, the voltage on the servo position sensor circuit will indicate to PCM the position of the servo. Code EO65 will set if circuit No. 399 is open or if circuit No. 398 is open, or shorted to ground or voltage.

Fig 1: Code EO65, Schematic, Cruise Servo Position

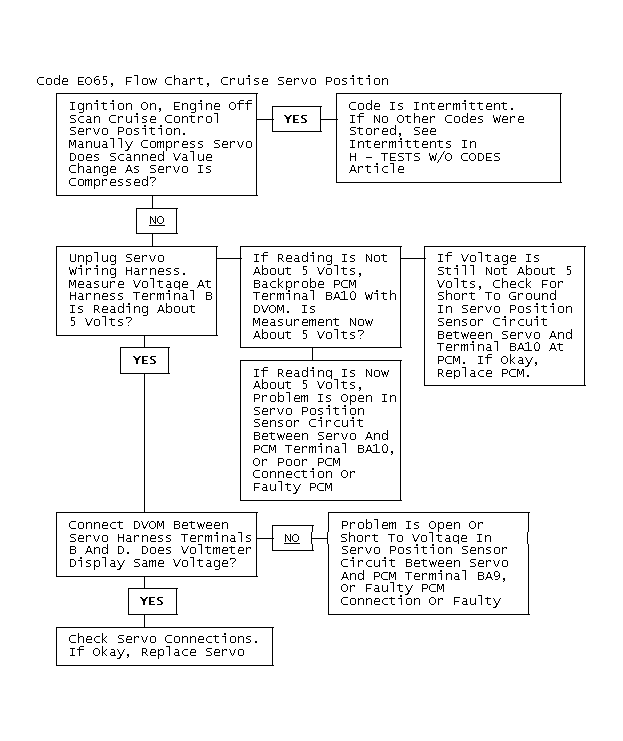

Fig 2: Code EO65, Flow Chart, Cruise Servo Position
