Wiring Diagrams

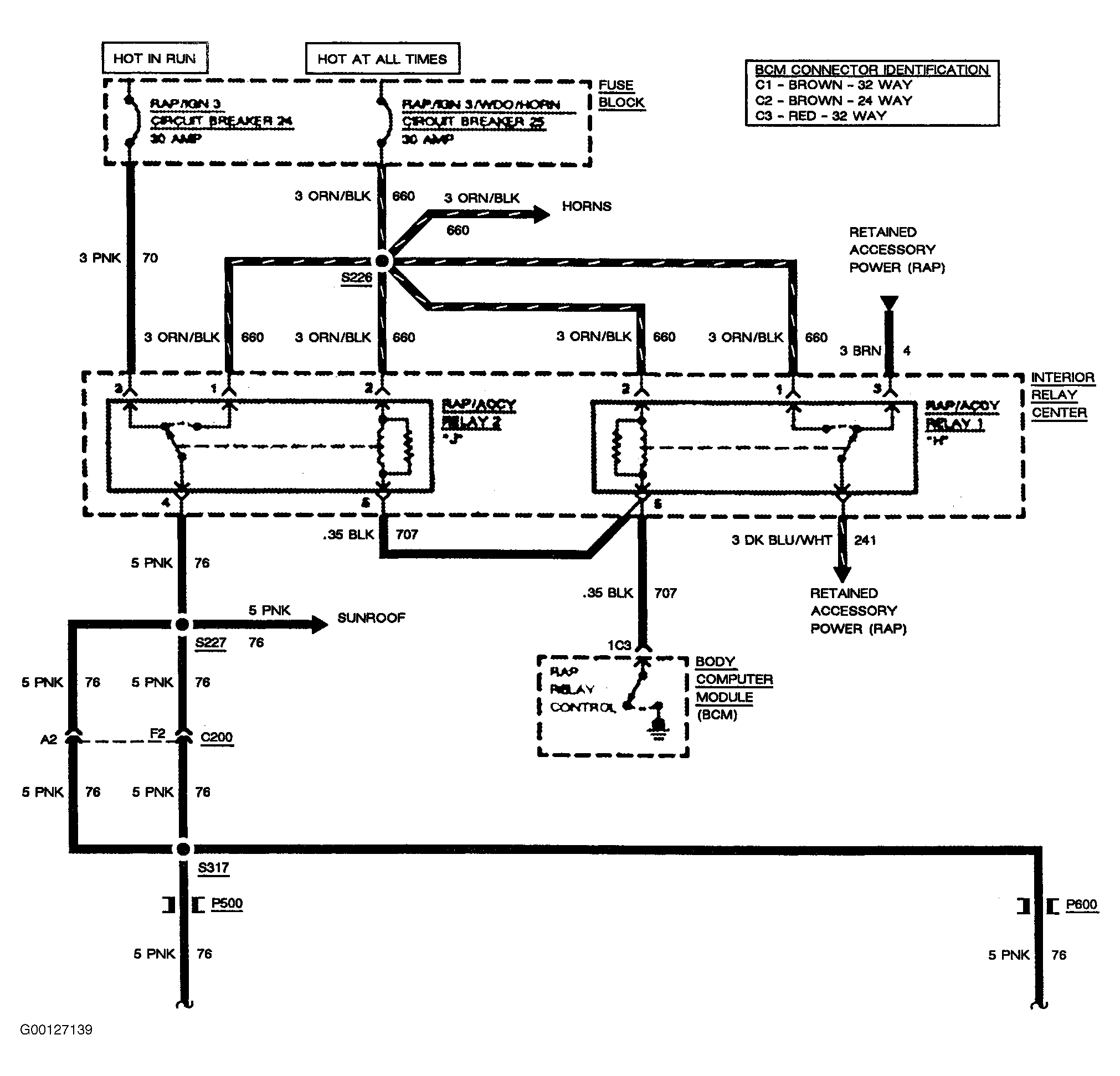

Fig 1: Power Windows System Wiring Diagram (Riviera/Reatta - 1 Of 2)
G00127139Courtesy of GENERAL MOTORS CORP.

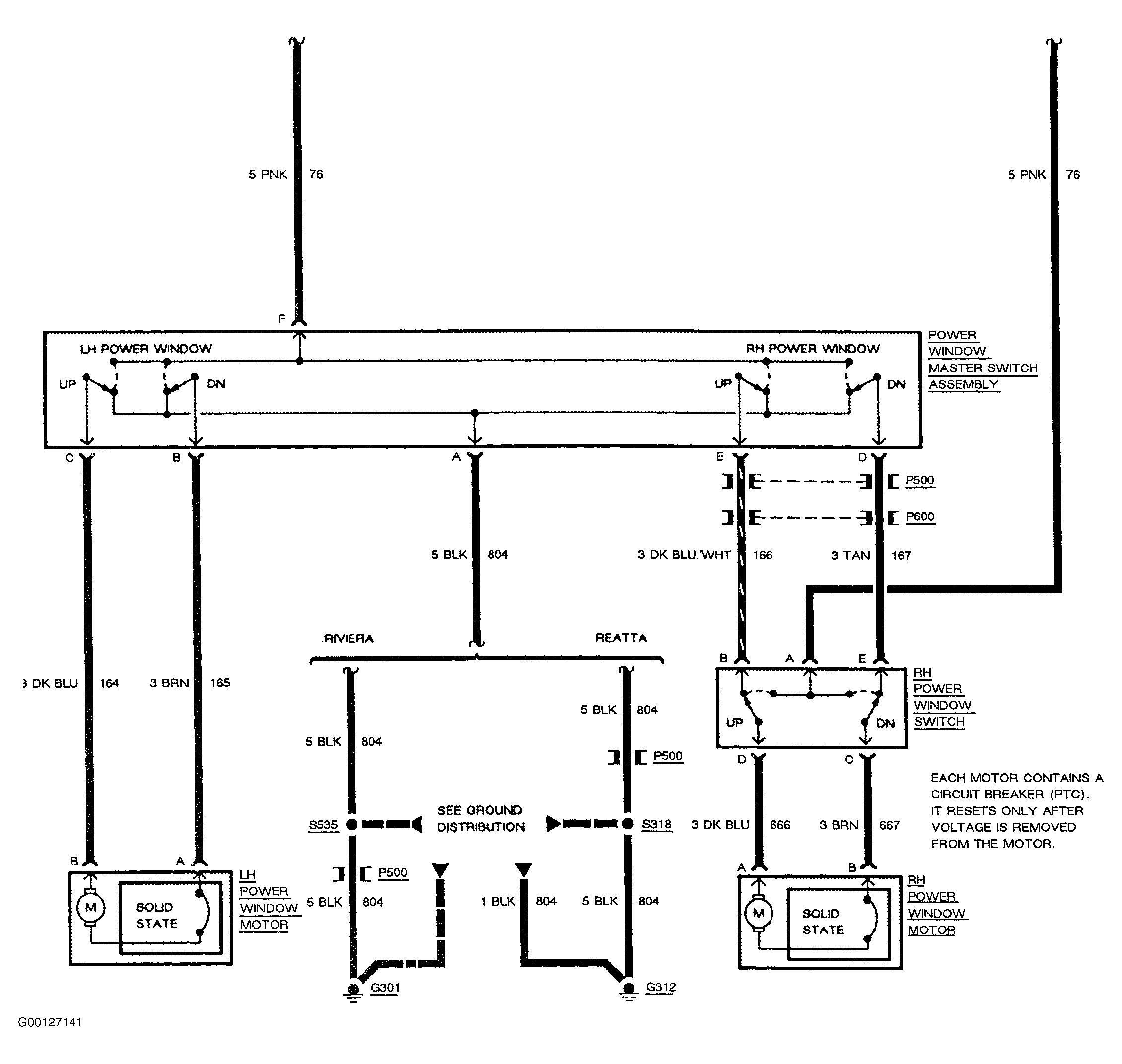

Fig 2: Power Windows System Wiring Diagram (Riviera/Reatta - 2 Of 2)
G00127141Courtesy of GENERAL MOTORS CORP.
