Installation (Reatta)

  1. Install regulator (1) through access hole and attach roller (2) to sash. See Fig 1 .
  2. Install electrical connector to motor.
  3. Install 1/4" X 1/2" Peel-type rivets (3). See Fig 1 .
  4. Install inner panel cam. See INNER PANEL CAM  .
  5. Install water deflector. See WATER DEFLECTOR  .
  6. Install the sound absorber. See SOUND ABSORBER PAD  .
  7. Install the trim panel. See TRIM PANEL  .

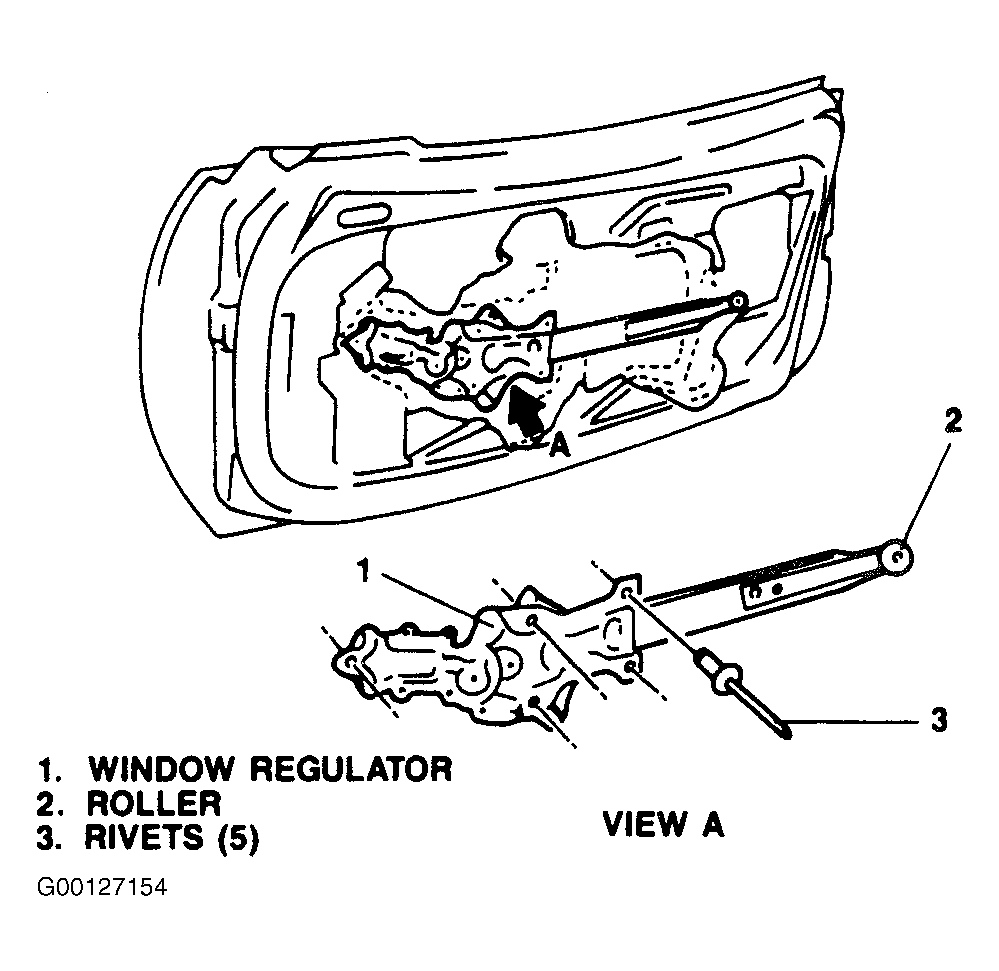

Fig 1: Identifying Door Window Regulator (Reatta)
G00127154Courtesy of GENERAL MOTORS CORP.
