Test A: Window Switch Continuity Test

To perform test, see Fig 1 .

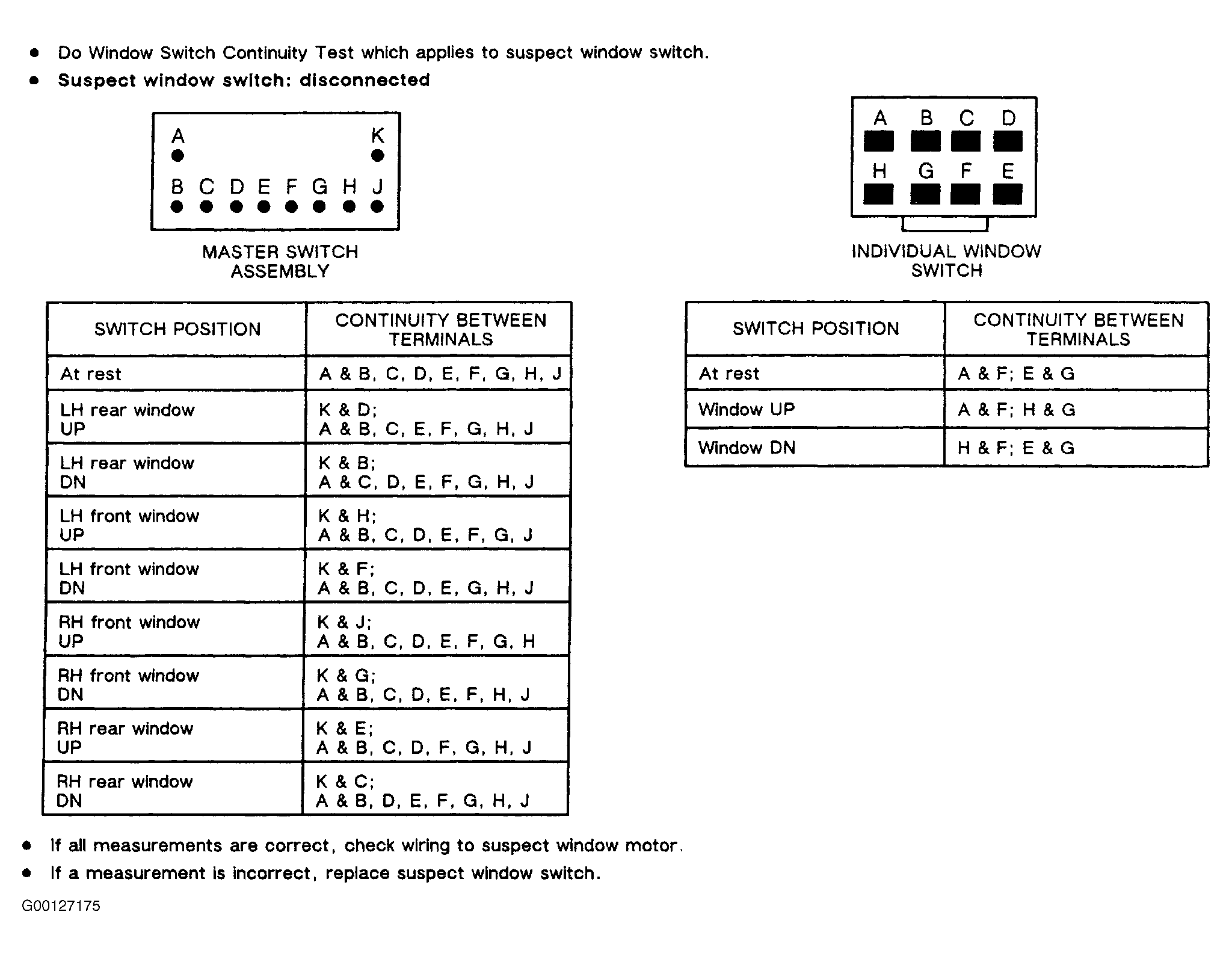

Fig 1: Test A: Window Continuity Test
G00127175Courtesy of GENERAL MOTORS CORP.
